I-Class Mark II Maintenance Manual Removal and Replacement

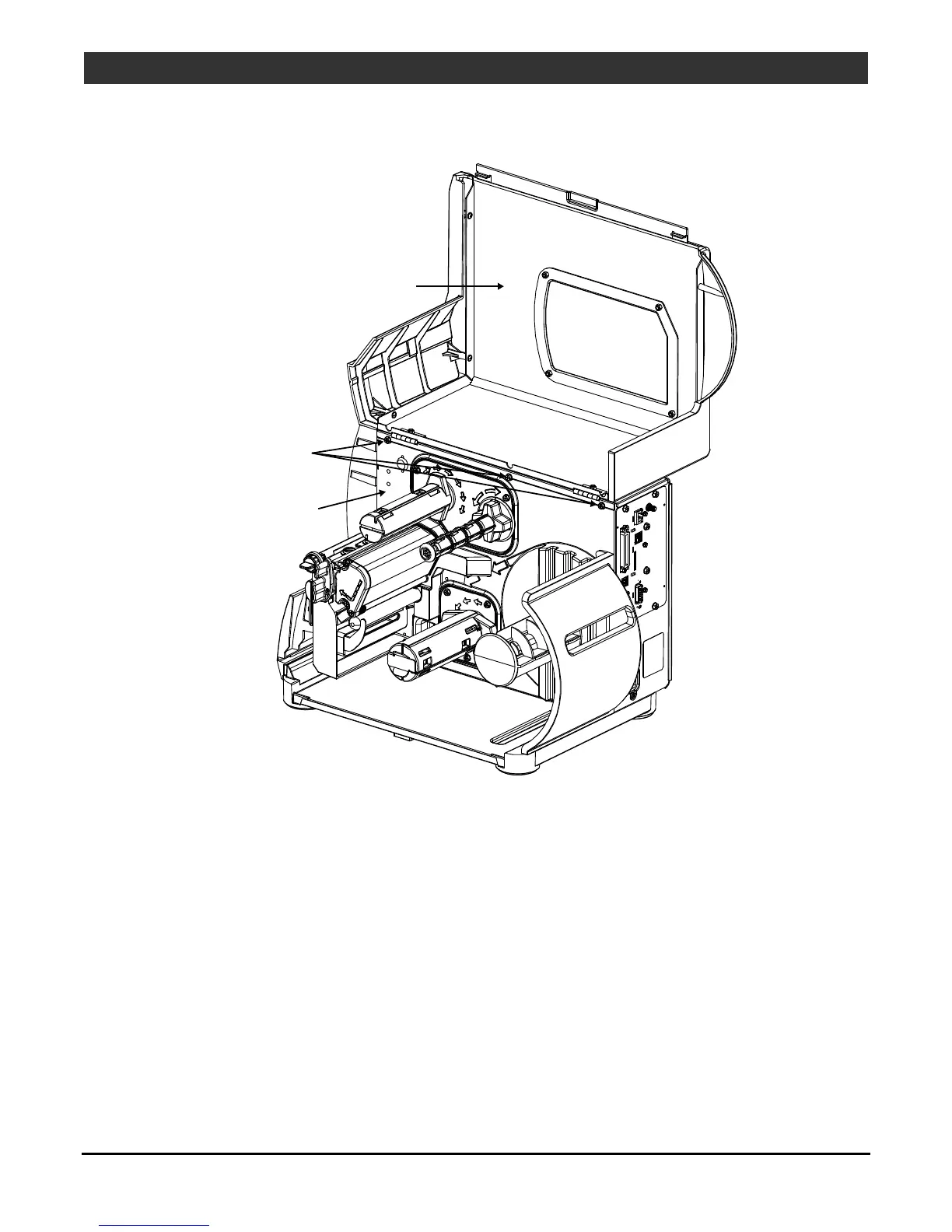

3. Raise the Cover Assembly and loosen the three Screws that secure it to the Centerplate, and then lift the
entire Cover Assembly off the printer.
Cover Assembly
Centerplate
Screws
Replacement:
1. Lower the Cover Assembly onto the printer.
2. Reinstall the three Screws through the Cover Assembly and into the Baseplate.
3. Tighten the three Screws along the inside of the cover.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
