Datamax I-Class Mark II Maintenance Manual

69
I-Class Mark II Maintenance Manual Removal and Replacement

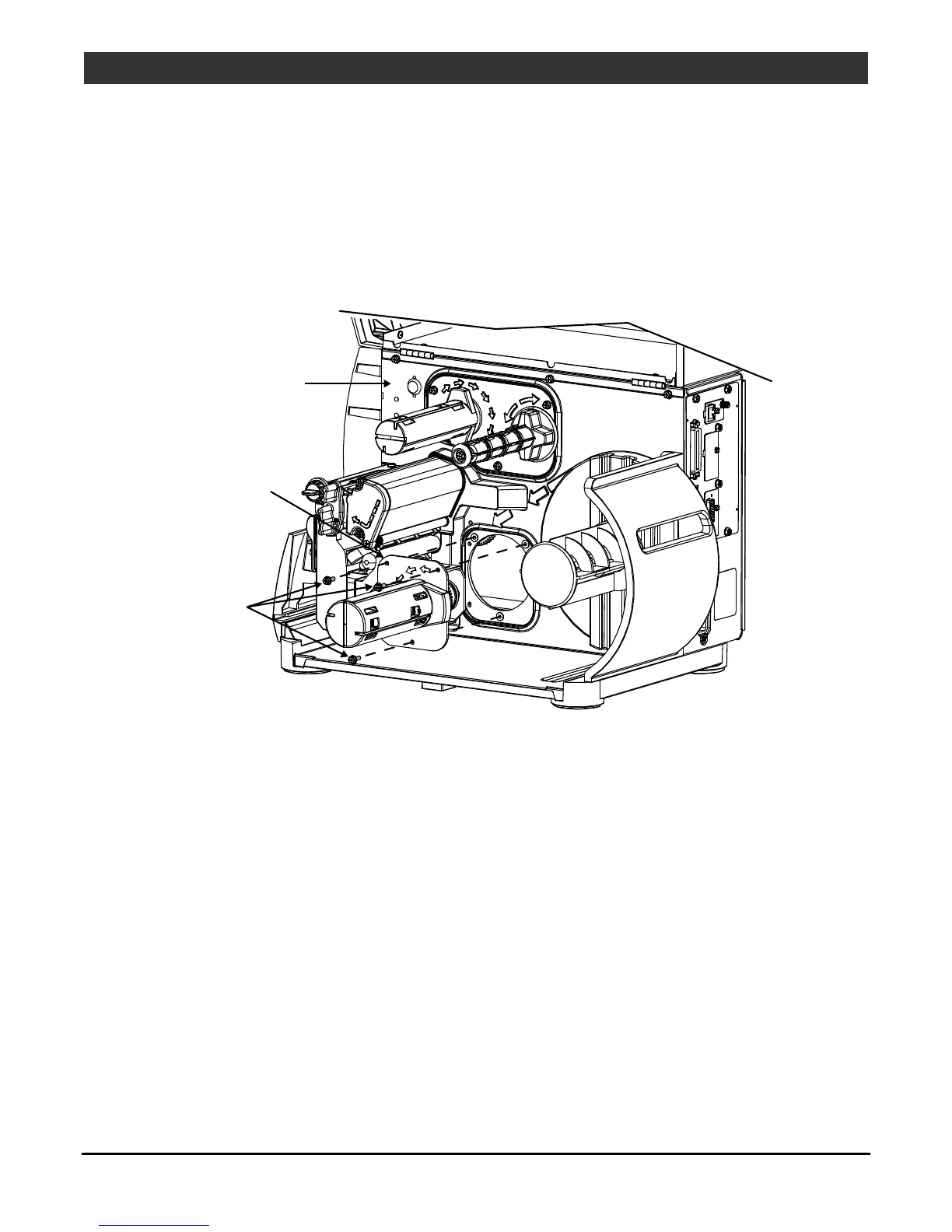

4.15 Rewind Assembly
Removal:
1. Turn OFF and unplug the printer. Raise the cover.
2. Remove the three Screws that secure the Rewind Assembly to the Centerplate then remove the Rewind
Assembly.
Centerplate
Rewind
Assembly
Screws
Replacement:
1. Reinstall the Rewind Assembly in the Centerplate, carefully engaging the gears, and secure it using the
three Screws.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
