Datamax I-Class Mark II Maintenance Manual

45
I-Class Mark II Maintenance Manual Removal and Replacement
4.2 Front Panel Fascia
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover Assembly (see Section 4.1).

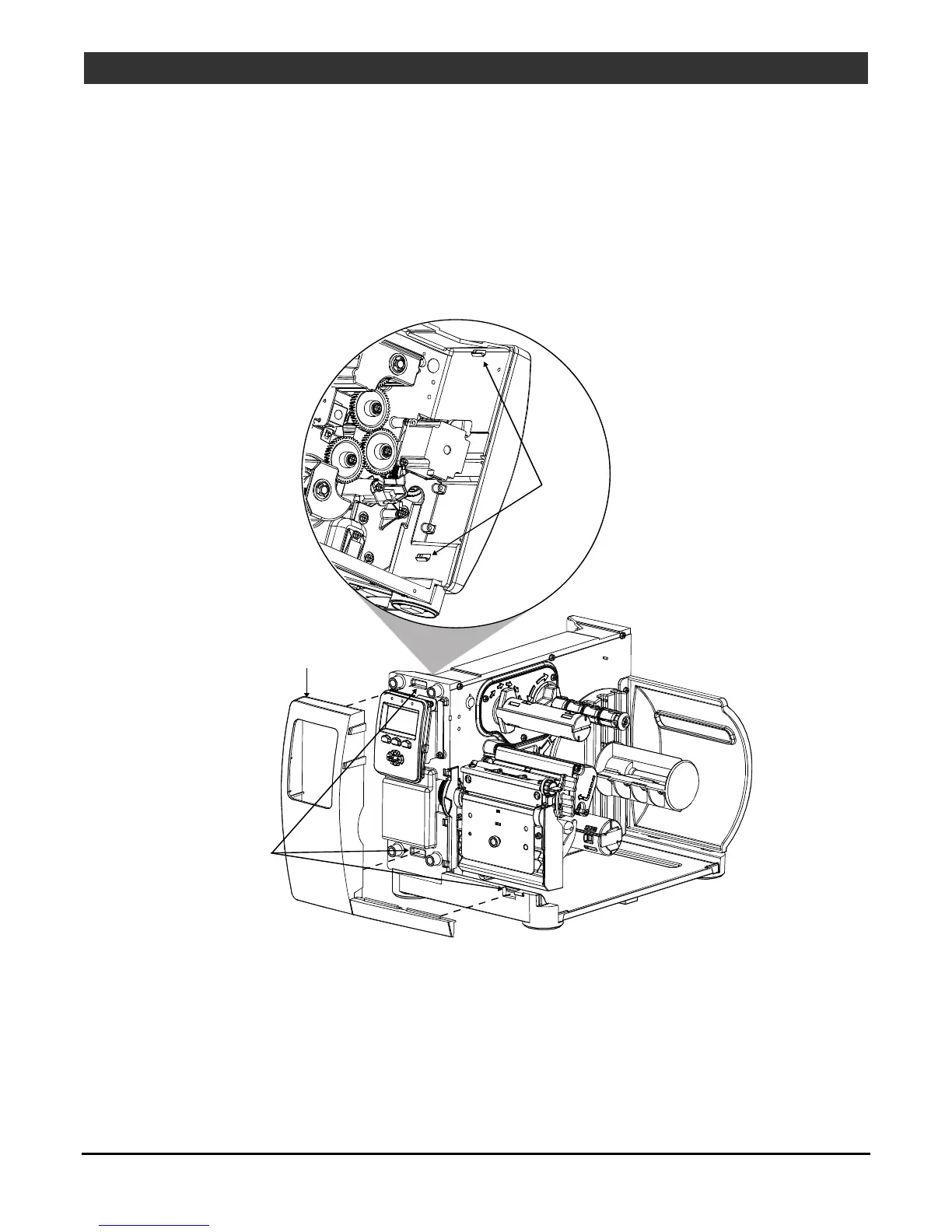

3. Slightly flex the Tabs that extend through notches in the Centerplate and then remove the Front Panel
Fascia.
Front Panel
Fascia
Notches
Tabs
Replacement:
1. Align the Tabs of the Front Panel to the Centerplate Notches.
2. Press firmly until the Tabs of the Front Panel lock into place.
3. Reinstall the Cover Assembly (see Section 4.1).

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
