Datamax I-Class Mark II Maintenance Manual

70
I-Class Mark II Maintenance Manual Removal and Replacement

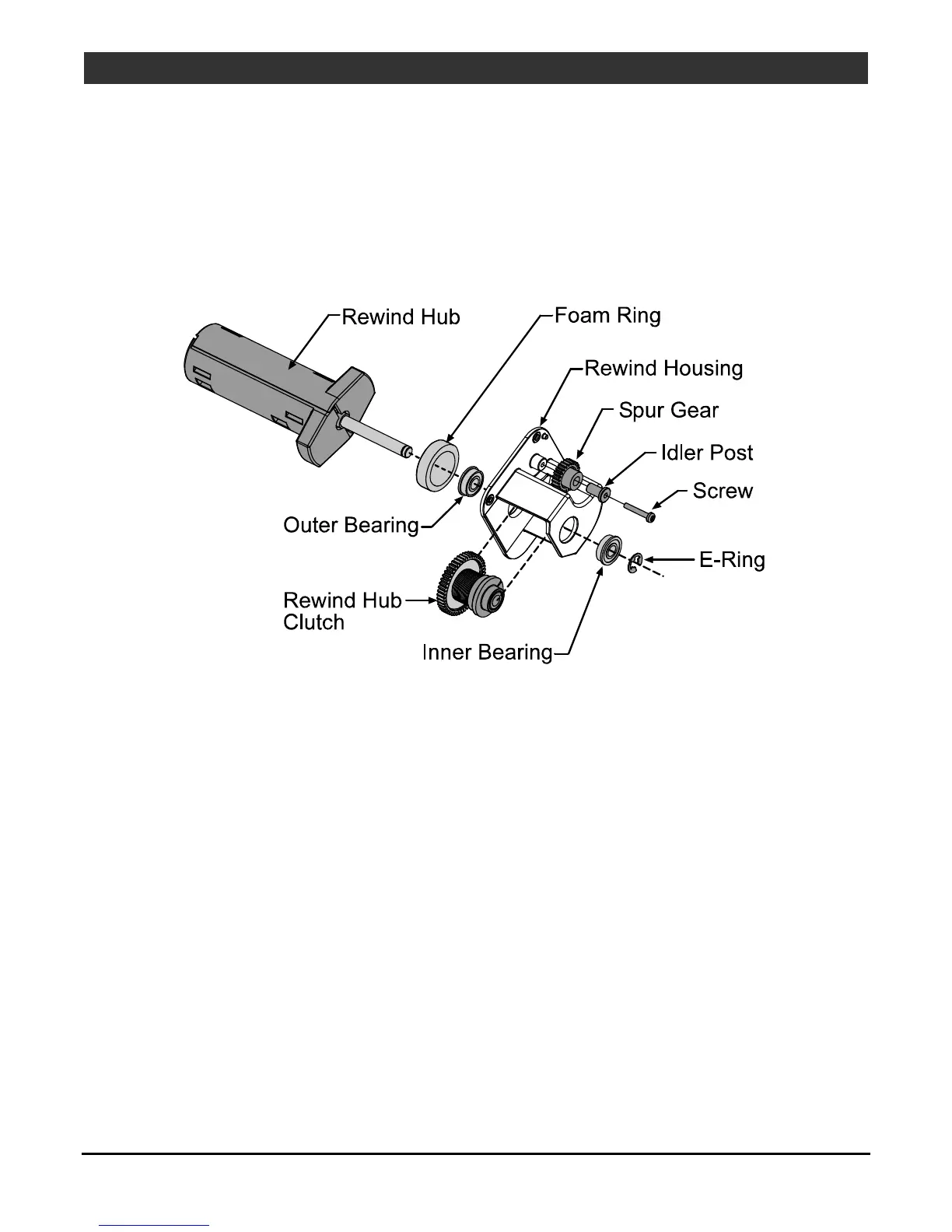

4.15.1 Rewind Hub, Clutch Assembly, and Spur Gear
Removal:
1. Remove the Rewind Assembly; see Section 4.15.
2. Remove the E-Ring from the Rewind Hub shaft and remove the Inner Bearing.
3. Remove the Rewind Hub and the Outer Bearing from the Rewind Housing.
4. Remove the Rewind Hub Clutch from the Housing (and to remove the Spur Gear, remove the Screw that
secures the Idler Post to the Rewind Housing).
Replacement:
1. Reinstall the Outer Bearing in the Rewind Housing.
2. Position the Rewind Hub Clutch in the Rewind Housing.
3. Slide the Rewind Hub shaft through the Rewind Hub Clutch and Rewind Housing.
4. Reinstall the Inner Bearing and clip the E-Ring onto the Rewind Hub shaft (also, if removed, position the
Spur Gear onto the Idler Post and secure the post the Rewind Housing with the Screw).
5. Reinstall the Rewind Assembly; see Section 4.15.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
