I-Class Mark II Maintenance Manual Removal and Replacement
4.5 Platen Block
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover and Platen; see Section 4.1 & 4.4

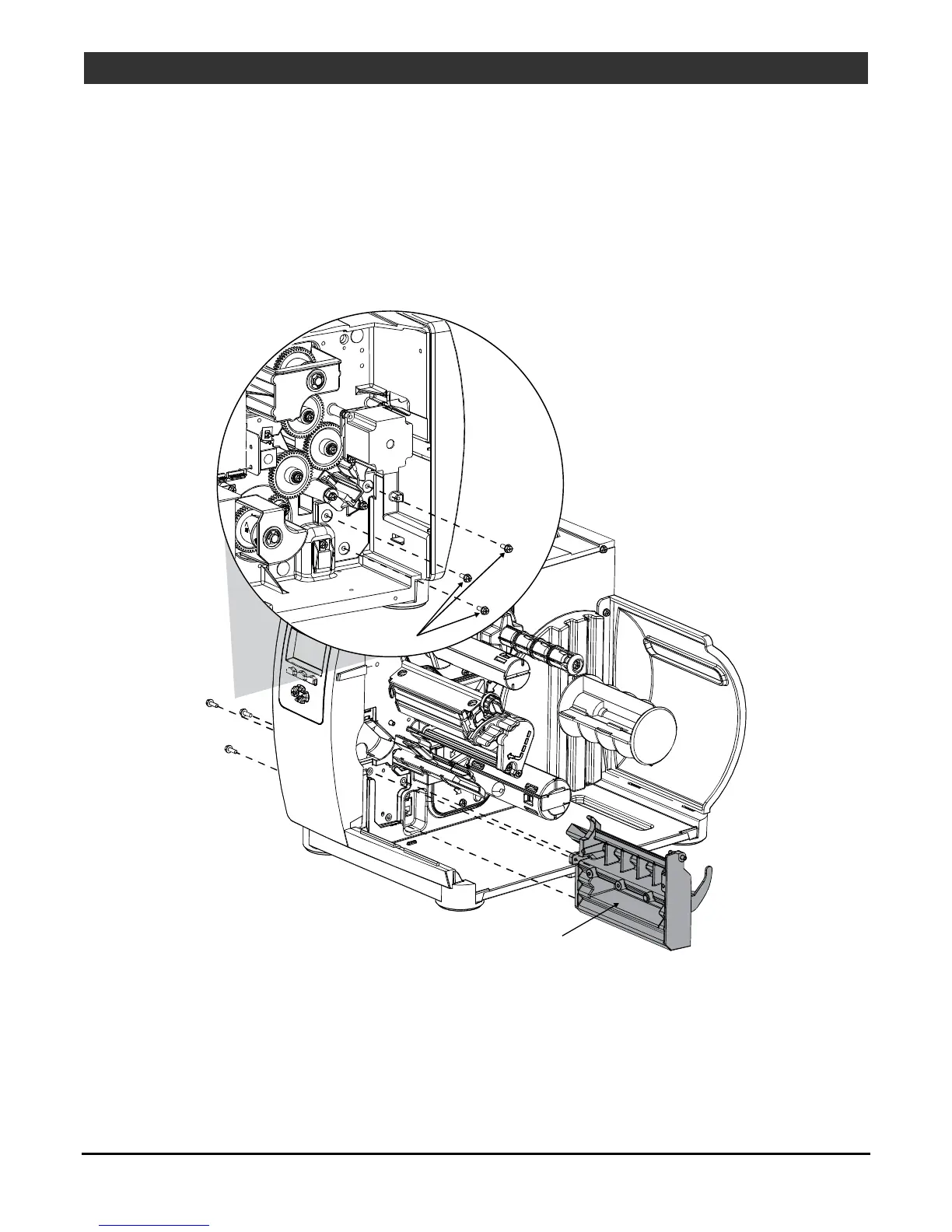

3. Remove the three Screws securing the Platen Block to the Centerplate. Slide the Platen Block out of the
printer.
Screws
Platen
Block
Replacement:
1. Position the Platen Block in the printer against the Centerplate.
2. Install the three Screws to secure the Platen Block to the Centerplate.
3. Install the Platen and Cover; see Section 4.4 & 4.1.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
