Datamax I-Class Mark II Maintenance Manual

48
I-Class Mark II Maintenance Manual Removal and Replacement

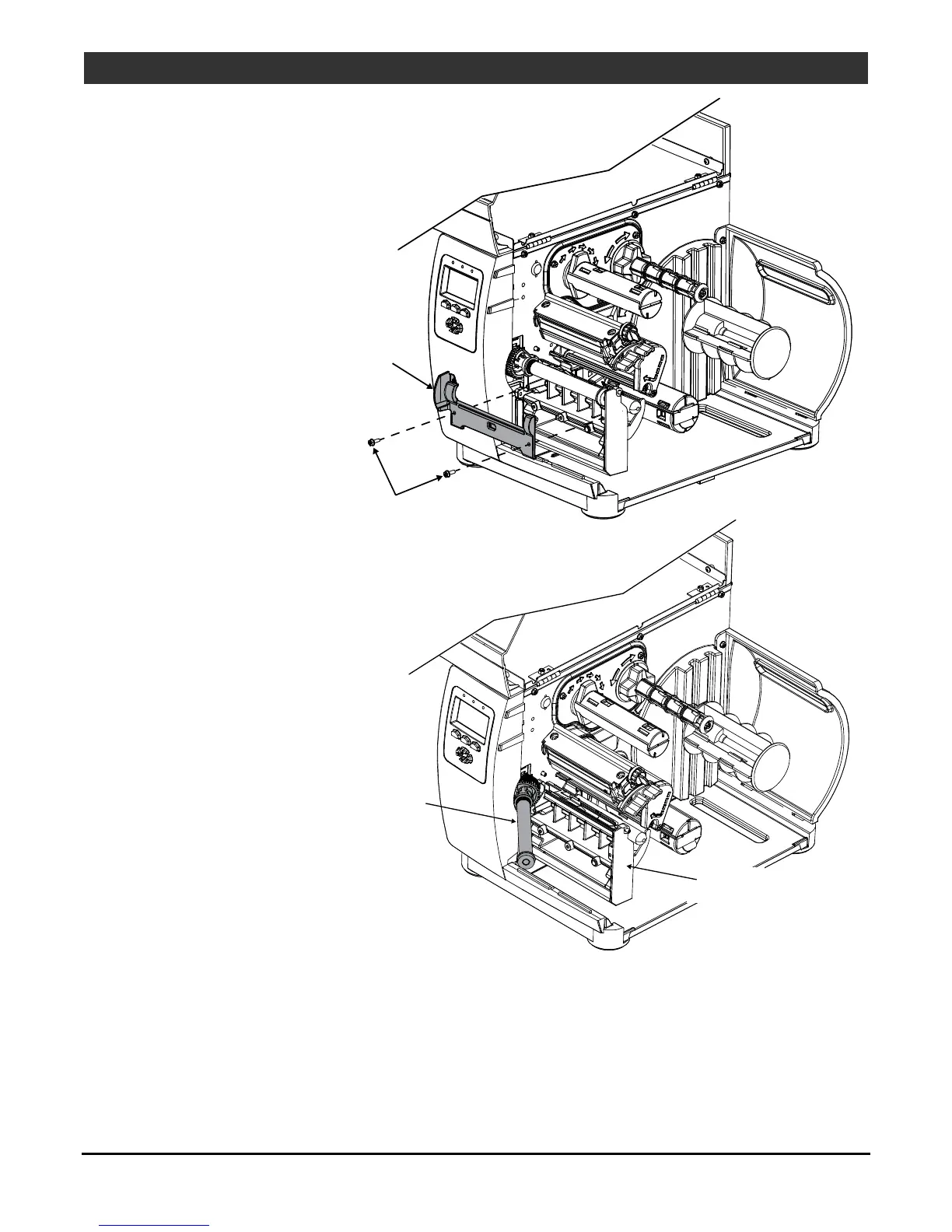

4. Remove the two Screws that
secure the Bearing Plate and
then remove the Bearing
Plate from the Platen Block.
5. Remove the Platen Assembly
from the Platen Block. Pivot
the Platen Assembly as
shown to remove it from the
printer.
If necessary, loosen the Front
Panel Fascia to facilitate
removal; see Section 4.2.
Replacement:
Bearing
Plate
Screws
Platen
Assembly
Platen
Block
1. Place the Platen Assembly into the Platen Block, ensuring proper gear mesh.
2. Position the Bearing Plate onto the Platen Block and secure it with the two Screws.
3. Position and then snap the Gear Cover into place.
4. Clean the Platen; see Section 2.4.2.
5. Replace the Tearplate, Thumbscrew, and the Tearplate Fascia.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
