Datamax I-Class Mark II Maintenance Manual

51
I-Class Mark II Maintenance Manual Removal and Replacement
Replacement:
1. Carefully reconnect both cables to the Printhead.
2. Position the Printhead onto the Locating Pins in the Printhead Assembly.

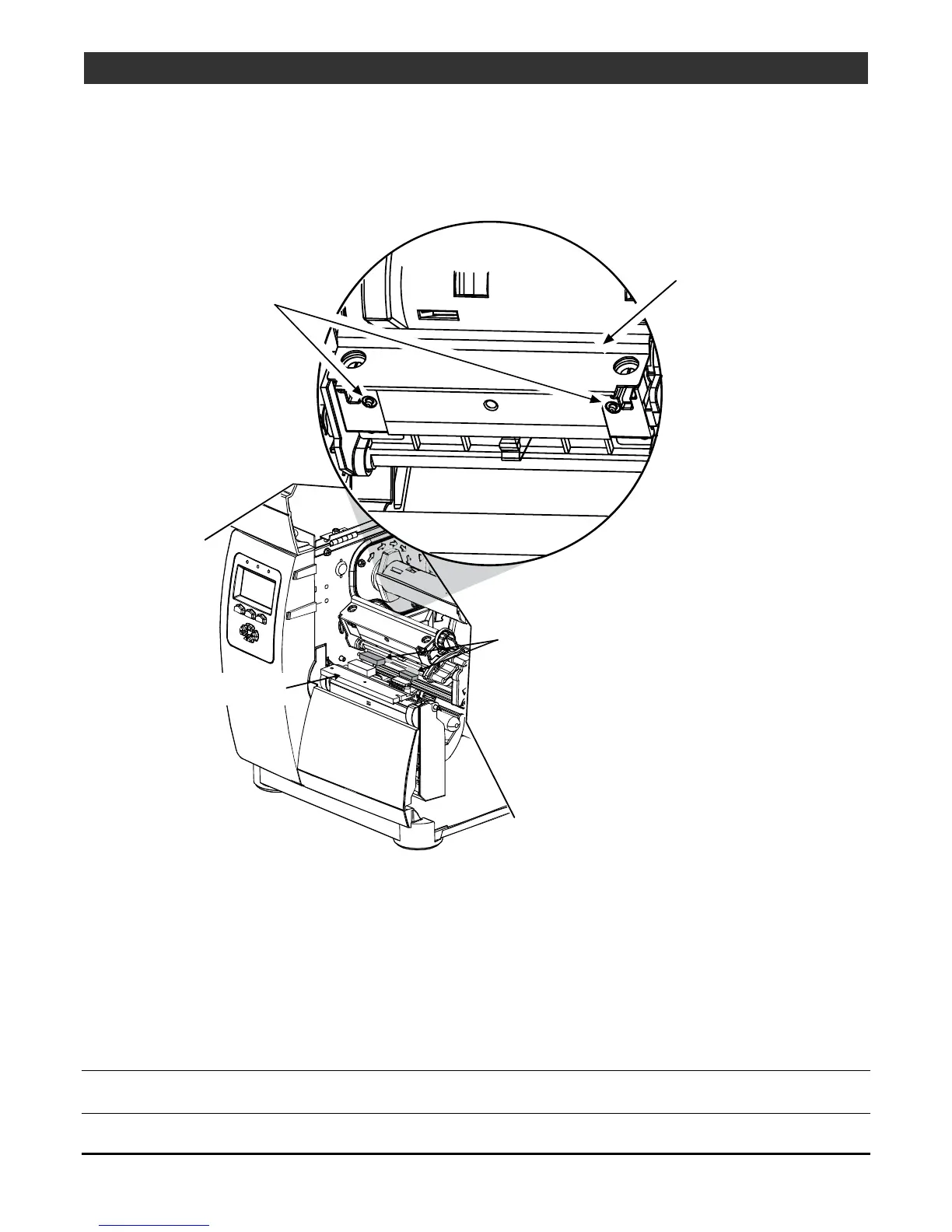

Printhead
Printhead
Cables
Printhead
Assembly
Locating
Pins
3. Secure the Printhead to the Printhead Assembly with the Printhead Mounting Screw, but do NOT over-
tighten.
4. Clean the Printhead; see Section 2.4.1.
5. Lower and latch the Printhead Assembly.
6. Adjust the Darkness setting (within the printer’s menu; see the Operator’s Manual for more information)
to match the print contrast of the replaced printhead.
 Note: Burn Line adjustment is not normally required as part of the replacement process; however, if
necessary, see Section 2.2.3.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
