LS10 Installation and Operating Guide Page 25
LS10 Installation & Operating Guide Document # 9301H66300 Ver. 1.01
• The speaker configuration must be set to any of the Auro configurations (Auro 9.1 / 10.1 /
11.1 or 13.1), or 2.0, 2.1, 5.1, 7.1.
Figure 14 shows the audio processing setup with Auro select
ed.

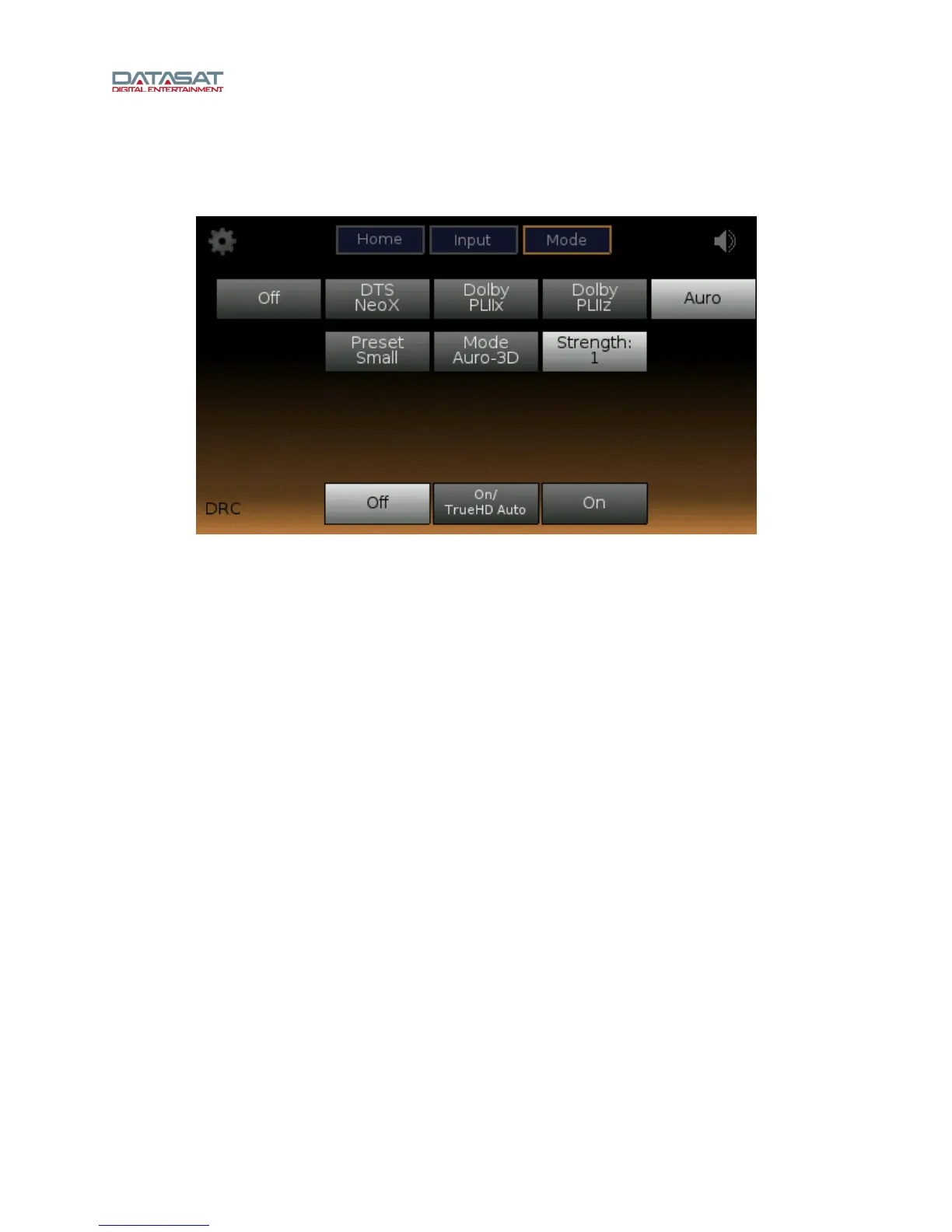

Figure 14. Auro Mode
These are configuration options for Auro mode:
• Preset – These are Auro-Matic upmixer options to adjust the 3D effect for different content or
preferences.
 Small
 Medium
 Large
 Speech
• Mode
 Auro-3D – Decodes Auro-3D native content and upmixes non-Auro-3D content.
 Native – Decodes Auro-3D native content but does not upmix non-Auro-3D content.
 Surround – Do not use High channels. Plays in 5.1 or 7.1 configurations.
 Off – Plays in stereo (Left Front/Right Front)
• Strength: 1 to 16 – Adjusts the strength of the Auro-Matic upmixer where 16 is the highest
amount of upmixing.
