1.6.4 Dolby PLIIz
Dolby PLIIz is available for speaker configurations that include HL/HR speakers. It is used to expand 2-
channel, 5.1, or 7.1 up to 9 available speakers in the speaker configuration LCR, Ls/Rs, Lb/Rb and
HL/HR.

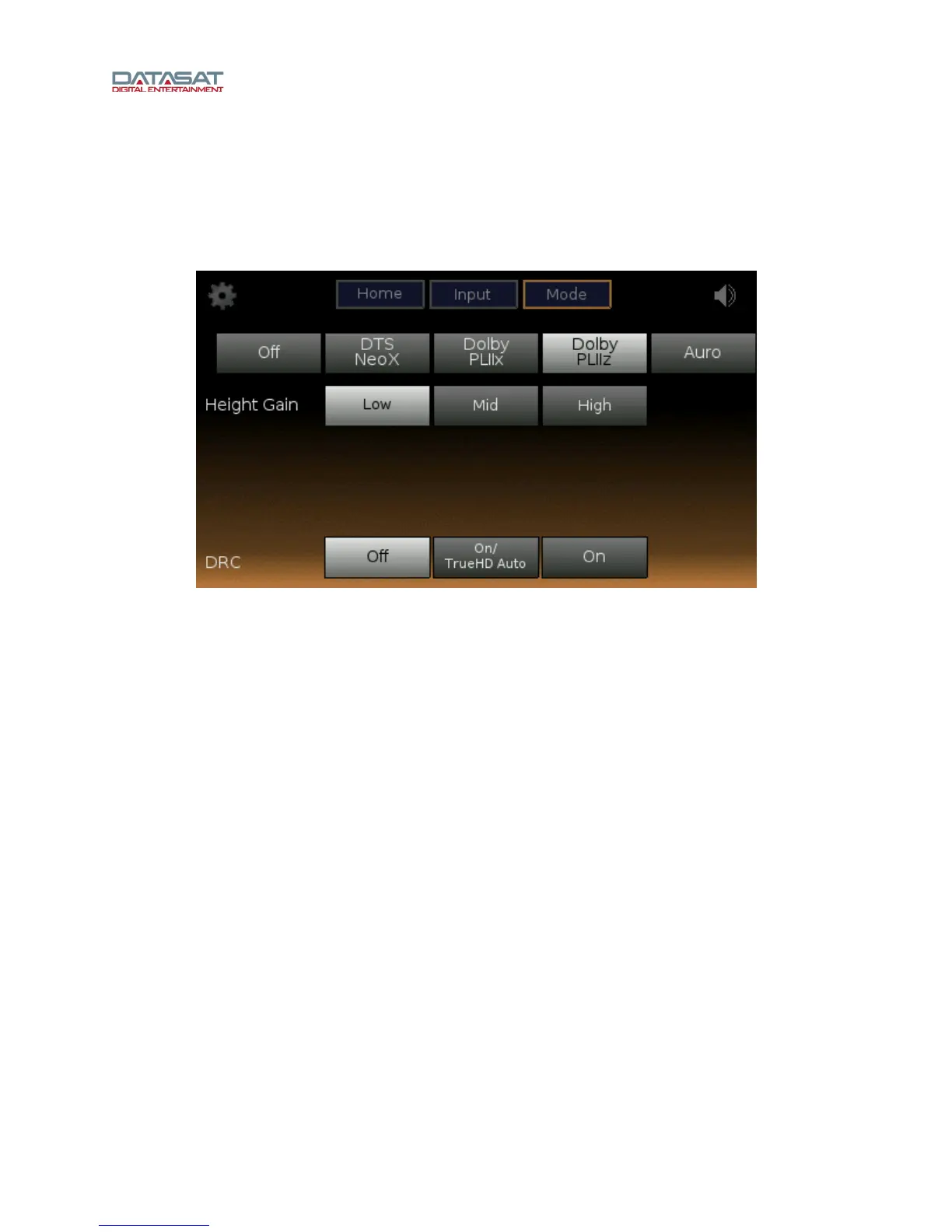

Figure 17 shows the audio processing setup with Dolby PLIIz sele
cted.
Figure 17. Dolby PLIIz Mode
These are configuration options for Dolby PLIIz mode:
• Height Gain: Low, Mid, or High – This determines how much of the audio gets pushed up to
the higher speakers (measured in dB). When set to high, more sound will come from the left
high and right high speakers.
