2.11.4 FIXING CLIPS
NOTE: In conditions of excessive vibration, mount the module on suitable anti-vibration
mountings.
The module is held into the panel fascia using the supplied fixing clips.
• Withdraw the fixing clip screw (turn anticlockwise) until only the pointed end is protruding from
the clip.
• Insert the three ‘prongs’ of the fixing clip into the slots in the side of the module case.
• Pull the fixing clip backwards (towards the back of the module) ensuring all three prongs of
the clip are inside their allotted slots.
• Turn the fixing clip screws clockwise until they make contact with the panel fascia.
• Turn the screw a quarter of a turn to secure the module into the panel fascia. Care must be
taken not to over tighten the fixing clip screws

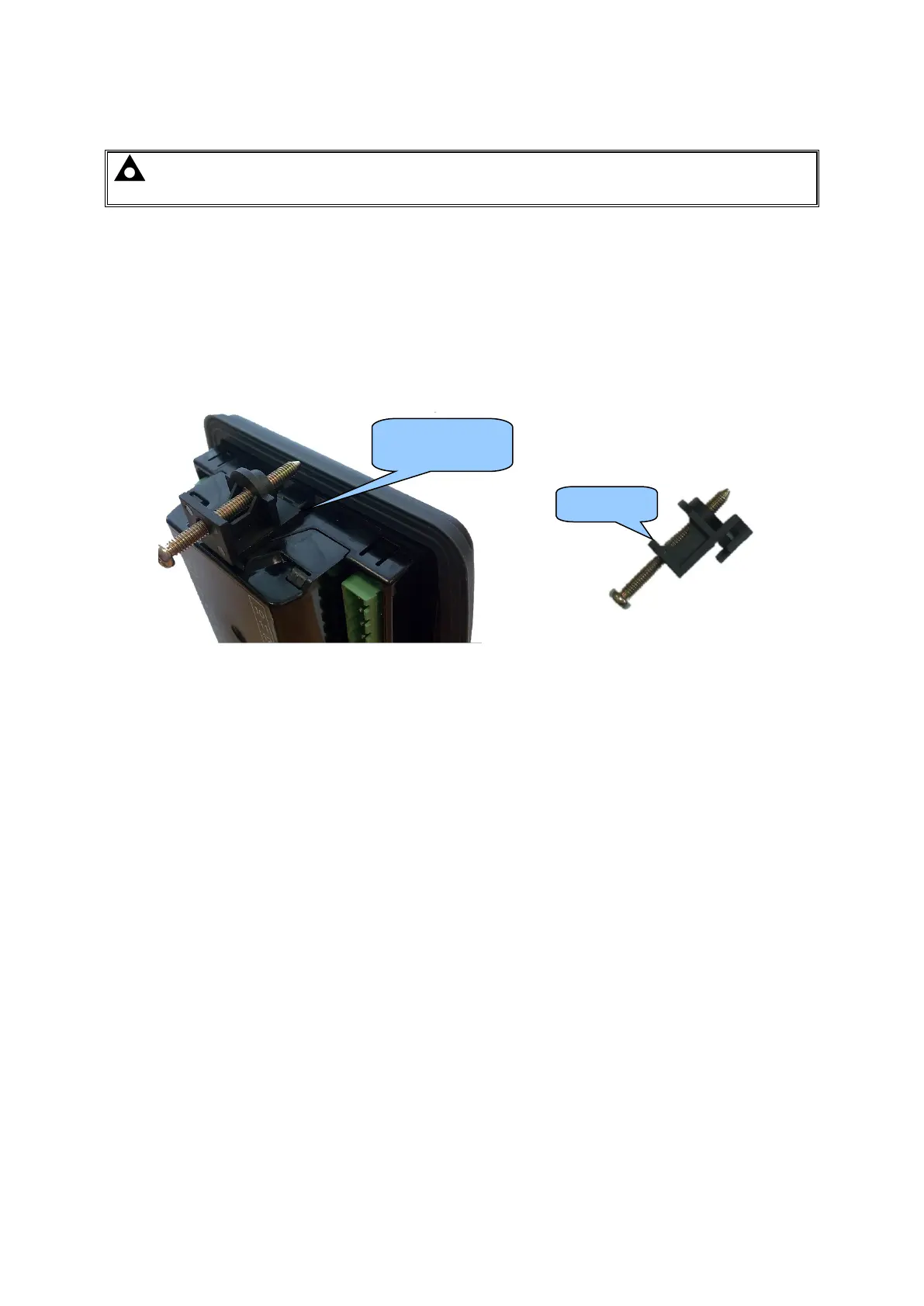

Fixing clip fitted
to module
Fixing clip

DEEP SEA ELECTRONICS DSEGenset DSE3110 Specifications

General

Brand	DEEP SEA ELECTRONICS
Model	DSEGenset DSE3110
Category	Control Unit
Language	English
