4.2.2.3 ALARM ICONS (PROTECTIONS)
When an alarm is active present, an alarm icon is displayed in the Icon section indicate the nature of
the fault.
In the event of a warning alarm, the LCD only displays the Alarm Icon. In the event of an electrical trip
or shutdown alarm, the module displays the Alarm Icon and the Fault LED begins to flash.
If multiple alarms are active at the same time, the Alarm Icon automatically cycles through all the
appropriate icons to indicate each alarm which is active.
Example:
If the DSE controller was sensing a fail to stop alarm, generator under voltage alarm and a digital
input alarm at the same time, it would cycle through all the icons to show this.

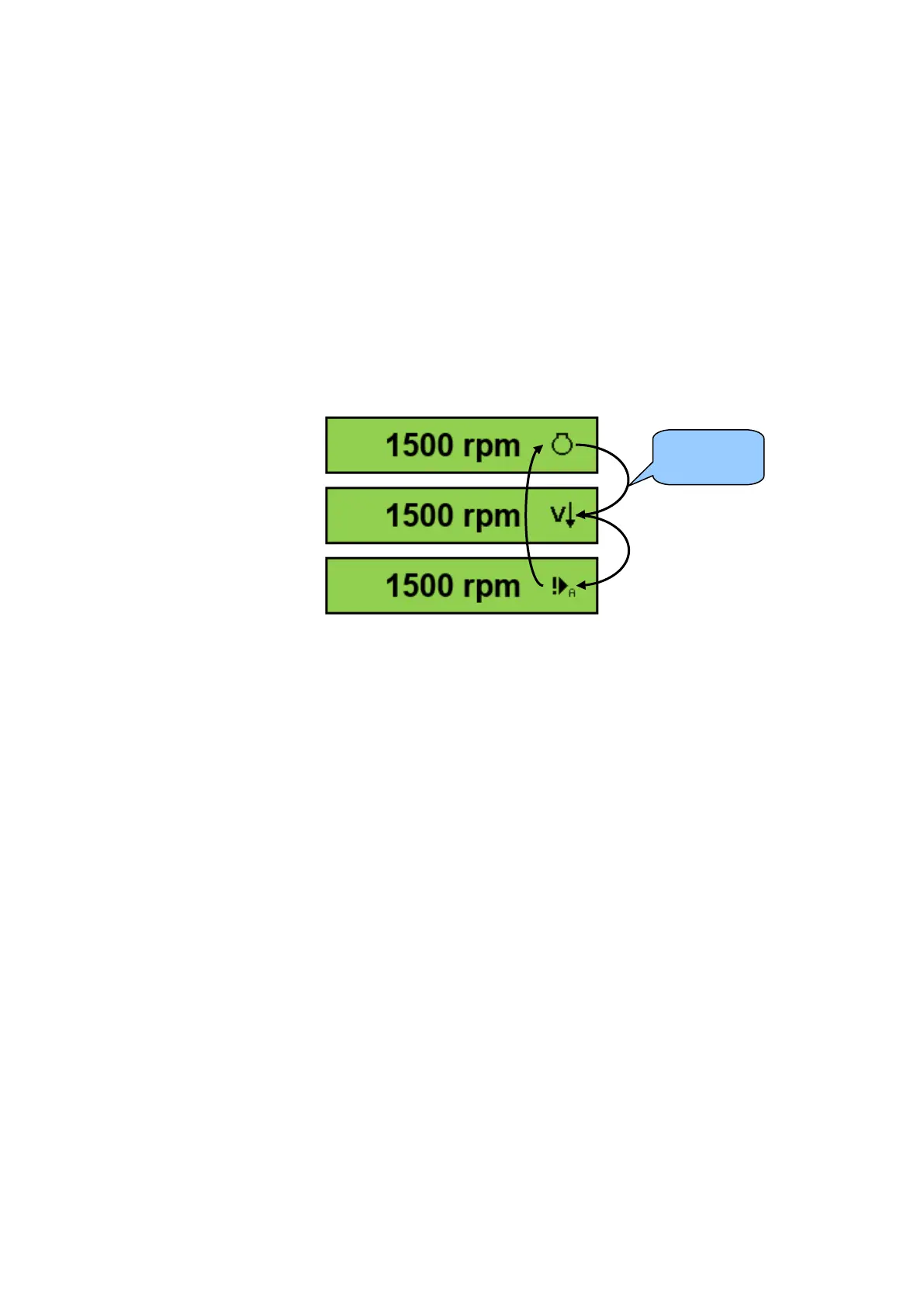

Icon cycle
procedure
