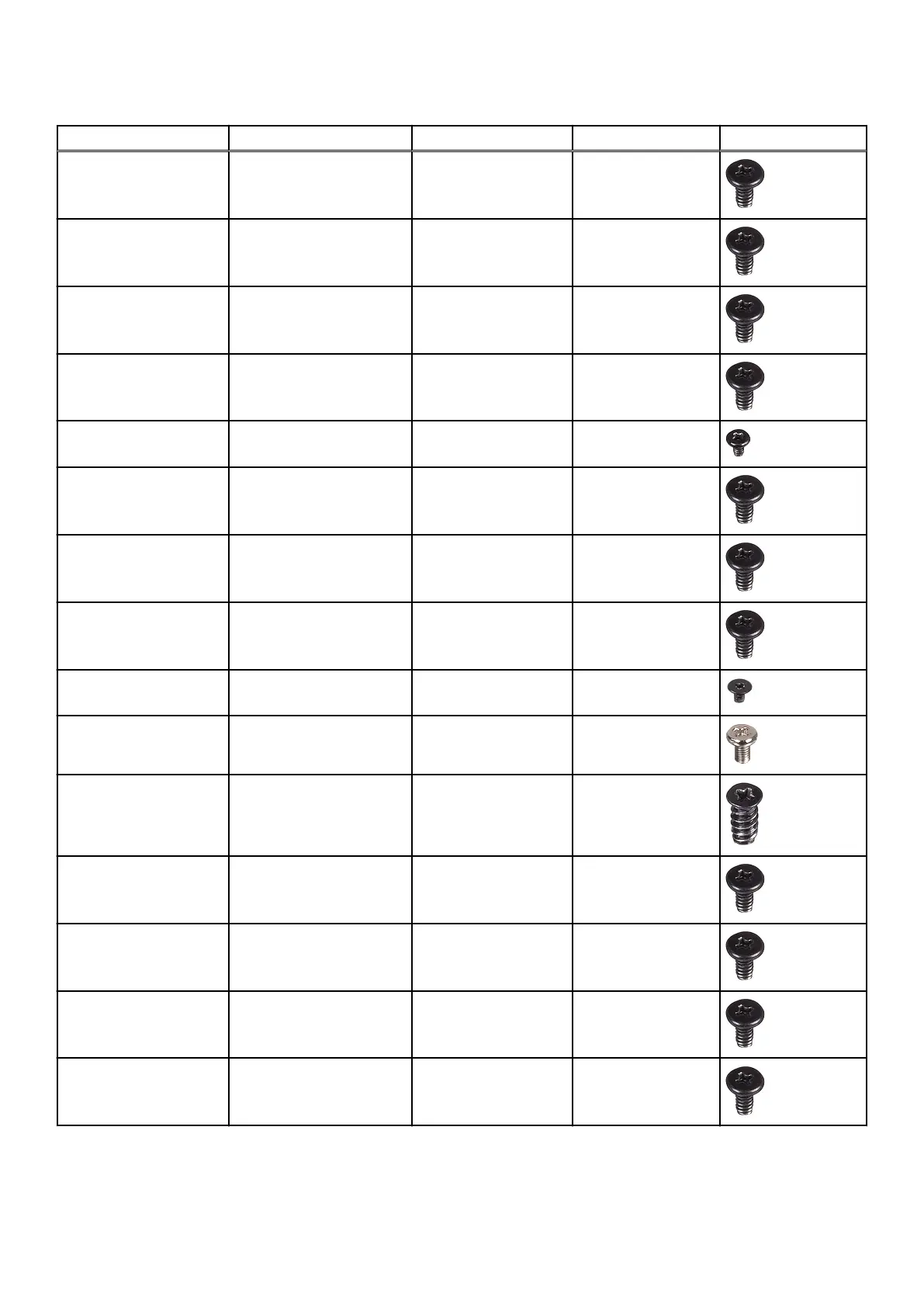

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
Left AlienFX side-panel
connector
Bracket #6-32x6 1
I/O board Chassis #6-32x6 5
Graphics card (multiple,
full-length)
Chassis #6-32x6 2
Graphics-card bracket Chassis #6-32x6 4
Wireless card Chassis M2x3 1
Top fan Chassis #6-32x6 1
Logo board Chassis #6-32x6 1
Logo board Bracket #6-32x6 6
Solid-state drive System board M2x2.5 1
PCI fan Chassis M3x5.25 2
Fan shroud PCI fan M5x10 4
Processor liquid-cooling
assembly
Chassis #6-32x6 4
Power-supply unit Chassis #6-32x6 4
System-board Chassis #6-32x6 9
Rear-handle bar Chassis #6-32x6.5 14
12
