2. Remove the side cover.
About this task
The following images indicate the location of the M.2 2230 solid-state drive and provide a visual representation of the removal
procedure.

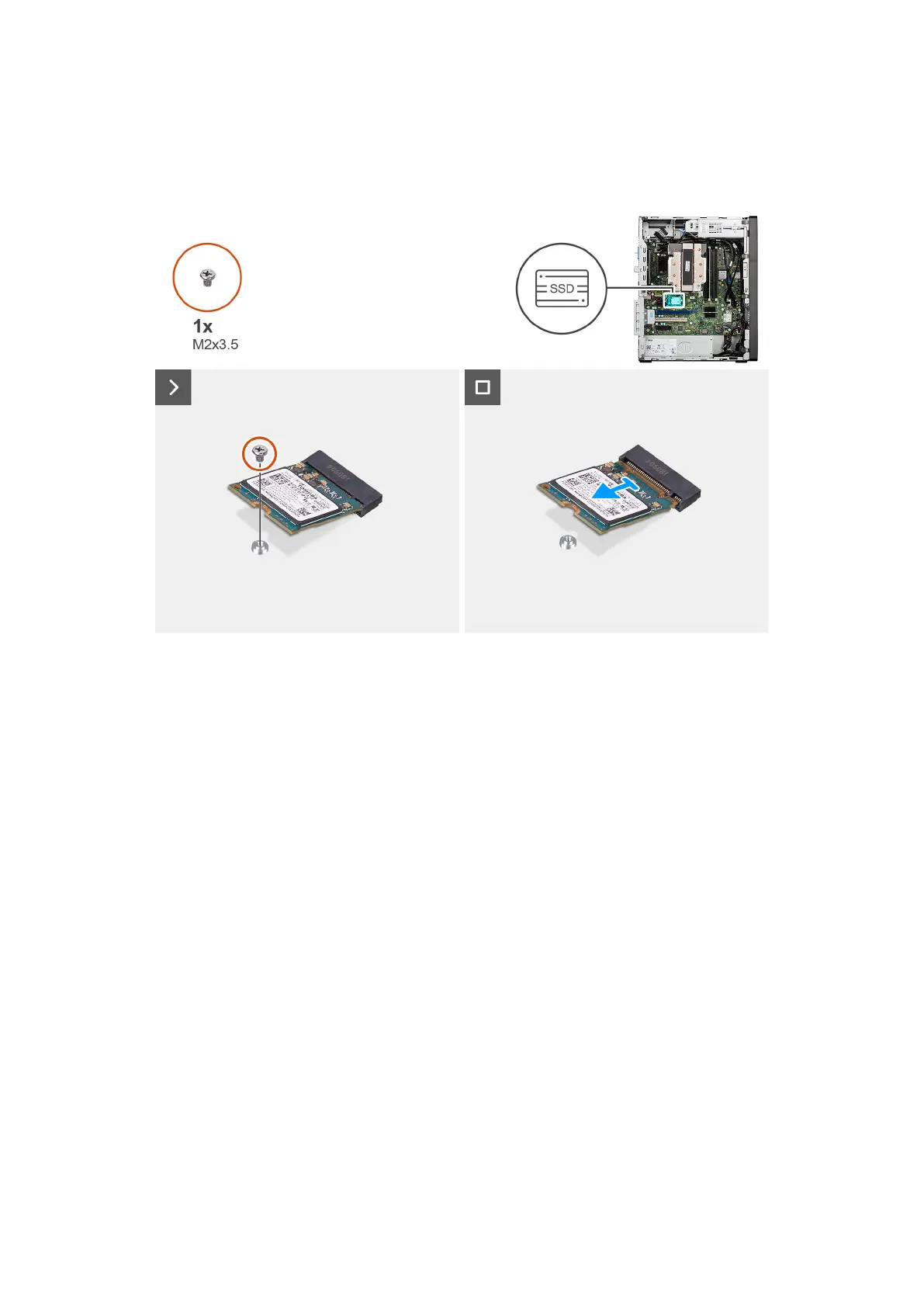

Figure 18. Removing the M.2 2230 solid-state drive
Steps
1. Remove the screw (M2x3.5) that secures the M.2 2230 solid-state drive to the M.2 card slot (M.2 PCIe SSD-0, M.2 PCIe
SSD-1 or M.2 PCIe SSD-2, whichever is applicable) on the system board.
2. Slide and remove the M.2 2230 solid-state drive from the M.2 card slot on the system board.
Installing the M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the M.2 2230 solid-state drive and provide a visual representation of the
installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
47
