Hard drive
3.5-inch hard drive
Removing the 3.5-inch hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the 3.5-inch hard drive and provide a visual representation of the removal
procedure.

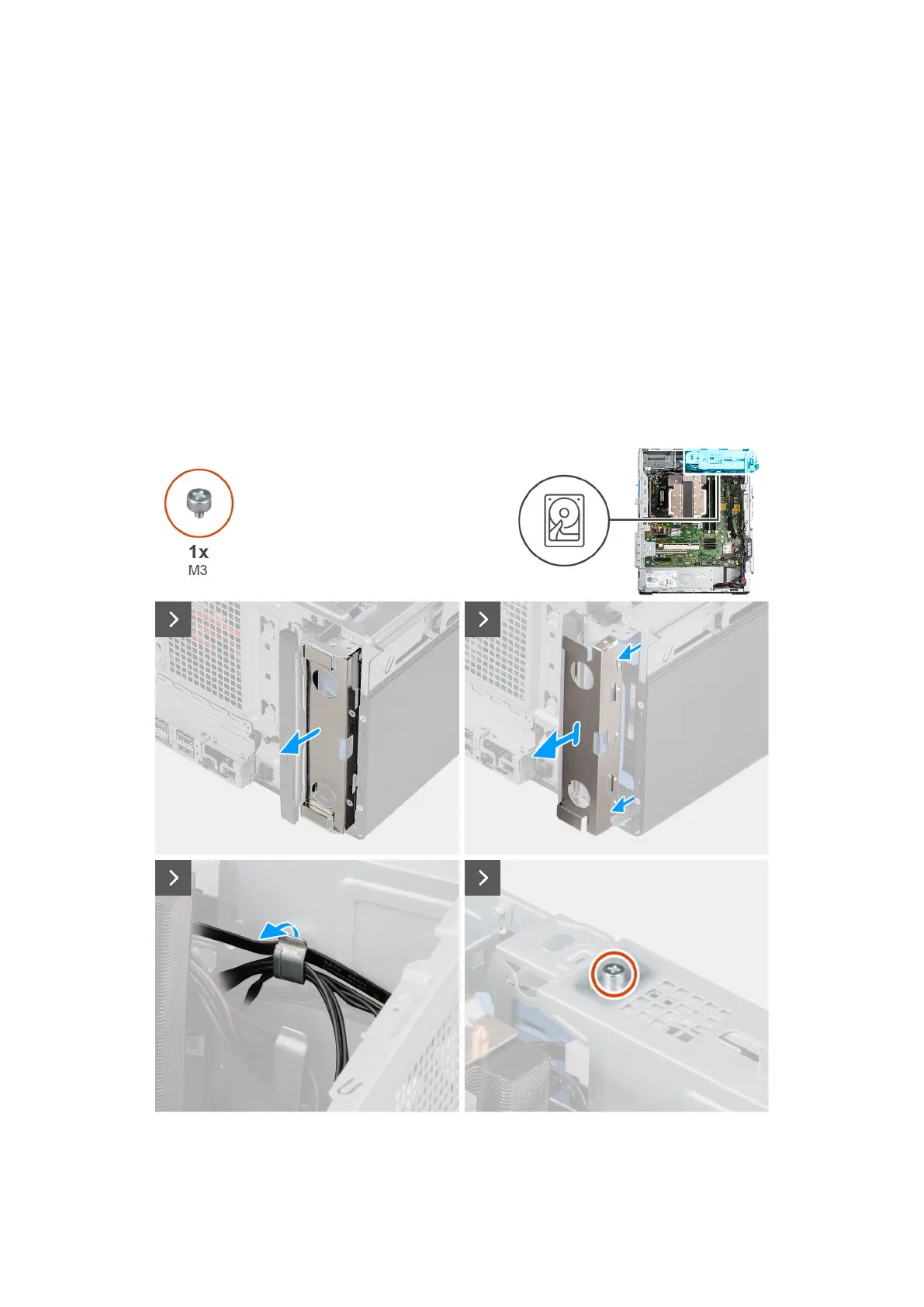

Figure 34. Removing the 3.5-inch hard drive
Removing and installing Customer Replaceable Units (CRUs)
63
