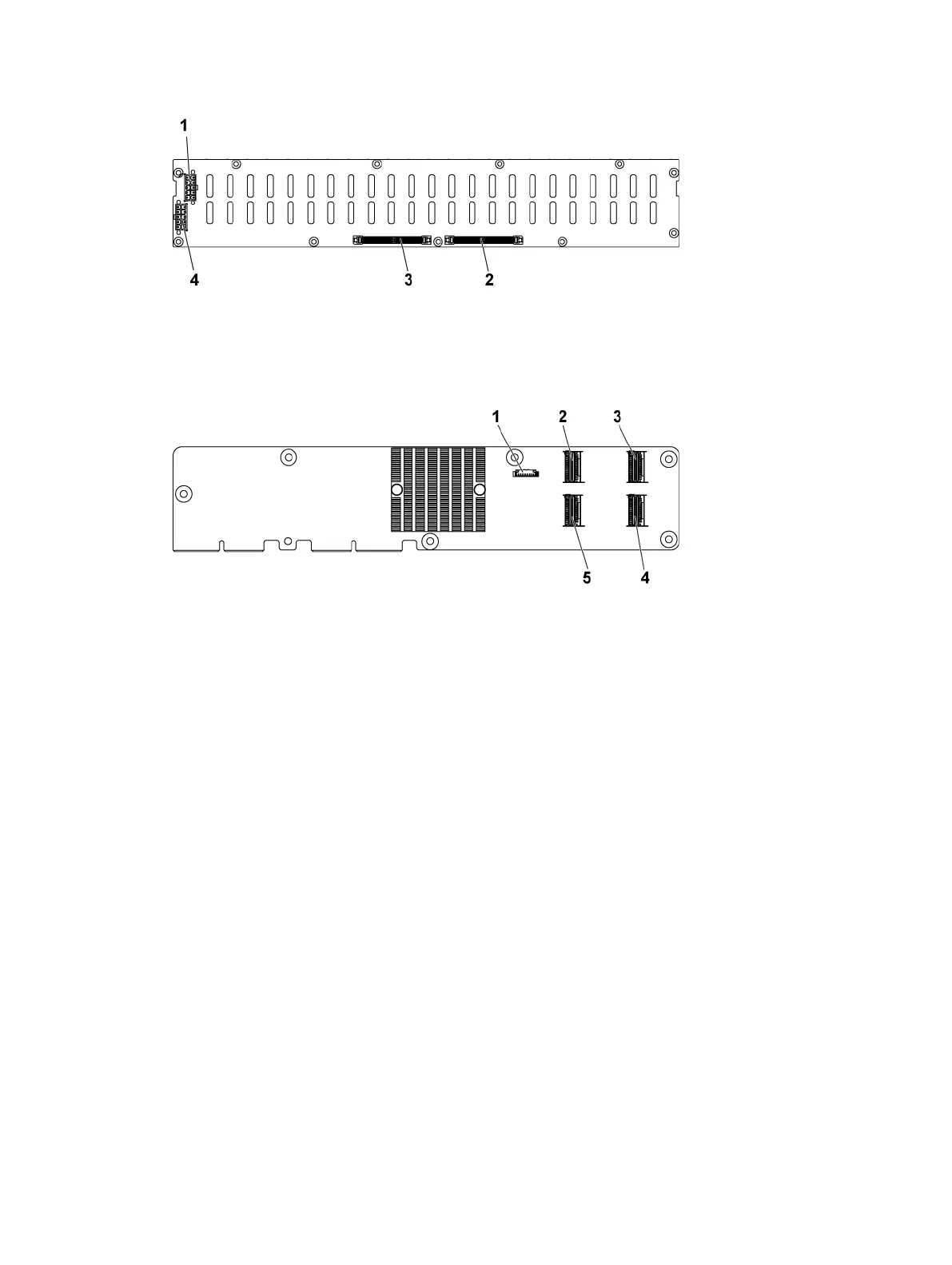

Figure 95. Back view of the 2.5-inch hard drive backplane for expander configuration
1. backplane power connector for power
supply 1
2. Expander-card connector 1
3. Expander-card connector 2 4. backplane power connector for power
supply 2
Figure 96. Top view of the expander card
1. power control connector 2. mini-SAS connector (4-7)
3. mini-SAS connector (12-15) 4. mini-SAS connector (8-11)
5. mini-SAS connector (0-3)
2. Disconnect control panel cables from the power distribution board.
3. Remove the screws that secure the hard drive cage to the chassis.
