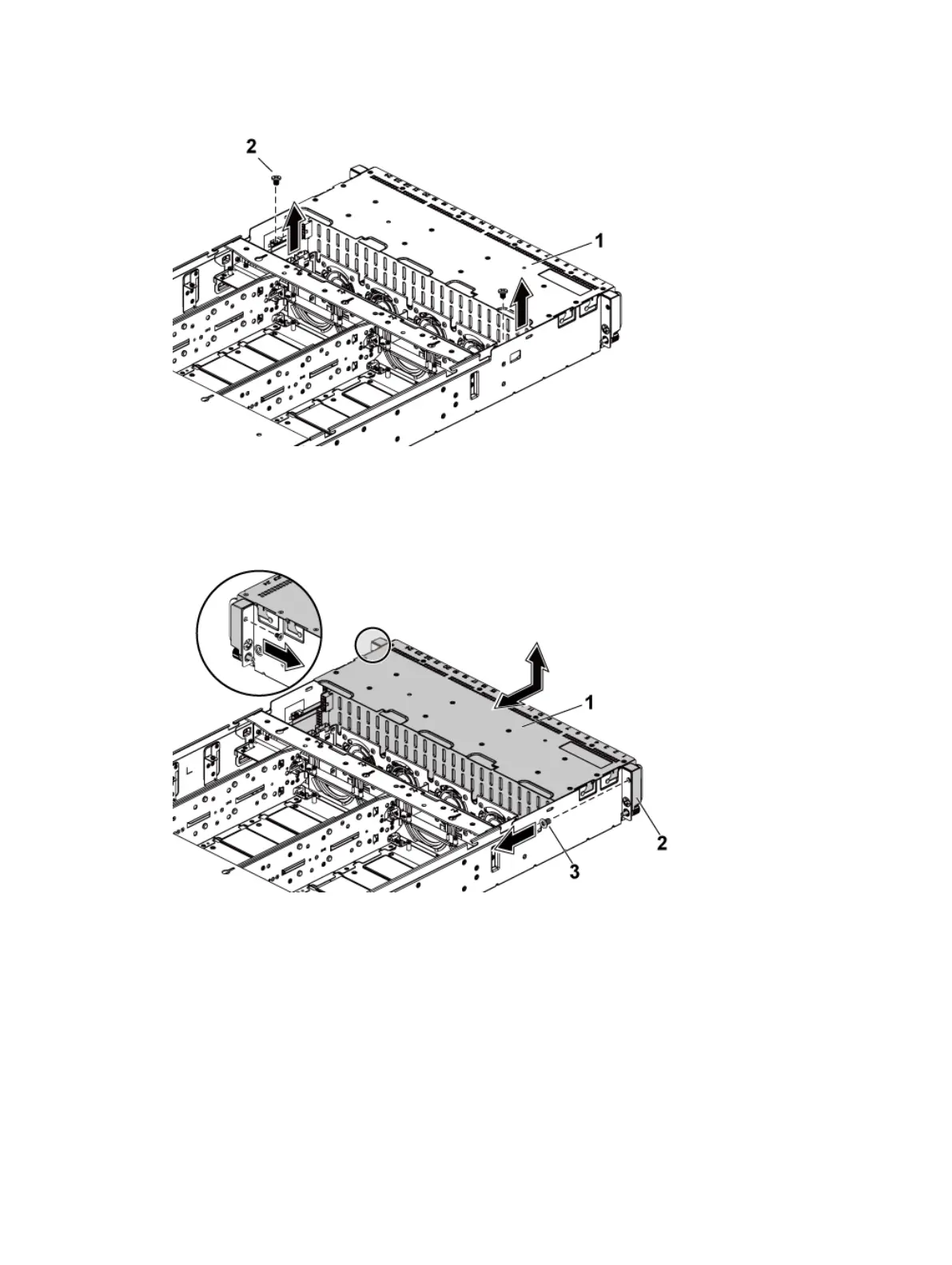

Figure 97. Removing and installing the 2.5-inch hard drive backplane for expander configuration
1. hard drive cage 2. screw (2)
4. Remove the screws that secure the control panel to the chassis.
5. Remove the hard drive cage from the chassis.
Figure 98. Removing and installing the 2.5-inch hard drive cage for expander configuration
1. hard drive cage 2. control panel assembly (2)
3. screw (2)
6. Remove the screws that secure the expander card assembly to the hard drive cage.
