Chapter 5 Trial Run and Tuning Procedure ASDA-B2
5-12 Revision September 2013
Tuning Procedure
Display
20. The ratio of Load Inertia to Servo Motor Inertia (J_load /J_motor) cannot be shown in the
display of JOG parameter P4-05 operation. Please press MODE key twice continuously and
the users can see the ratio of Load Inertia to Servo Motor Inertia (J_load /J_motor). Then,
execute JOG operation again, press MODE key once and press SET key twice to view the
display on the keypad. Check if the value of J_load /J_motor is adjusted to a fixed value and
displayed on the keypad after acceleration and deceleration repeatedly.

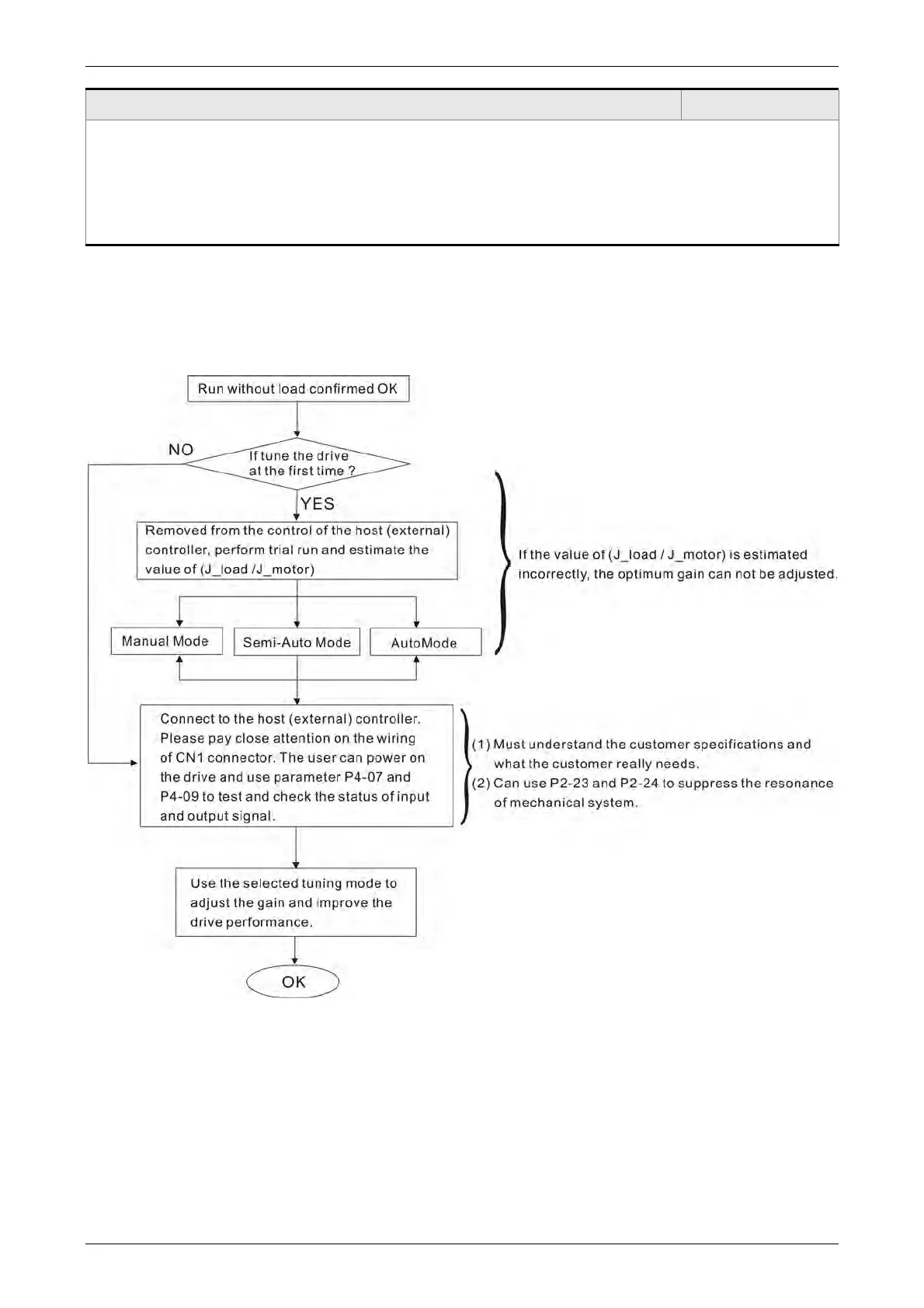

5.5.1 Tuning Flowchart
