Delta Electronics ASDA-B2 series - Timing Chart of Torque Control Mode

ASDA-B2 Chapter 6 Control Modes of Operation
Revision September 2013 6-39

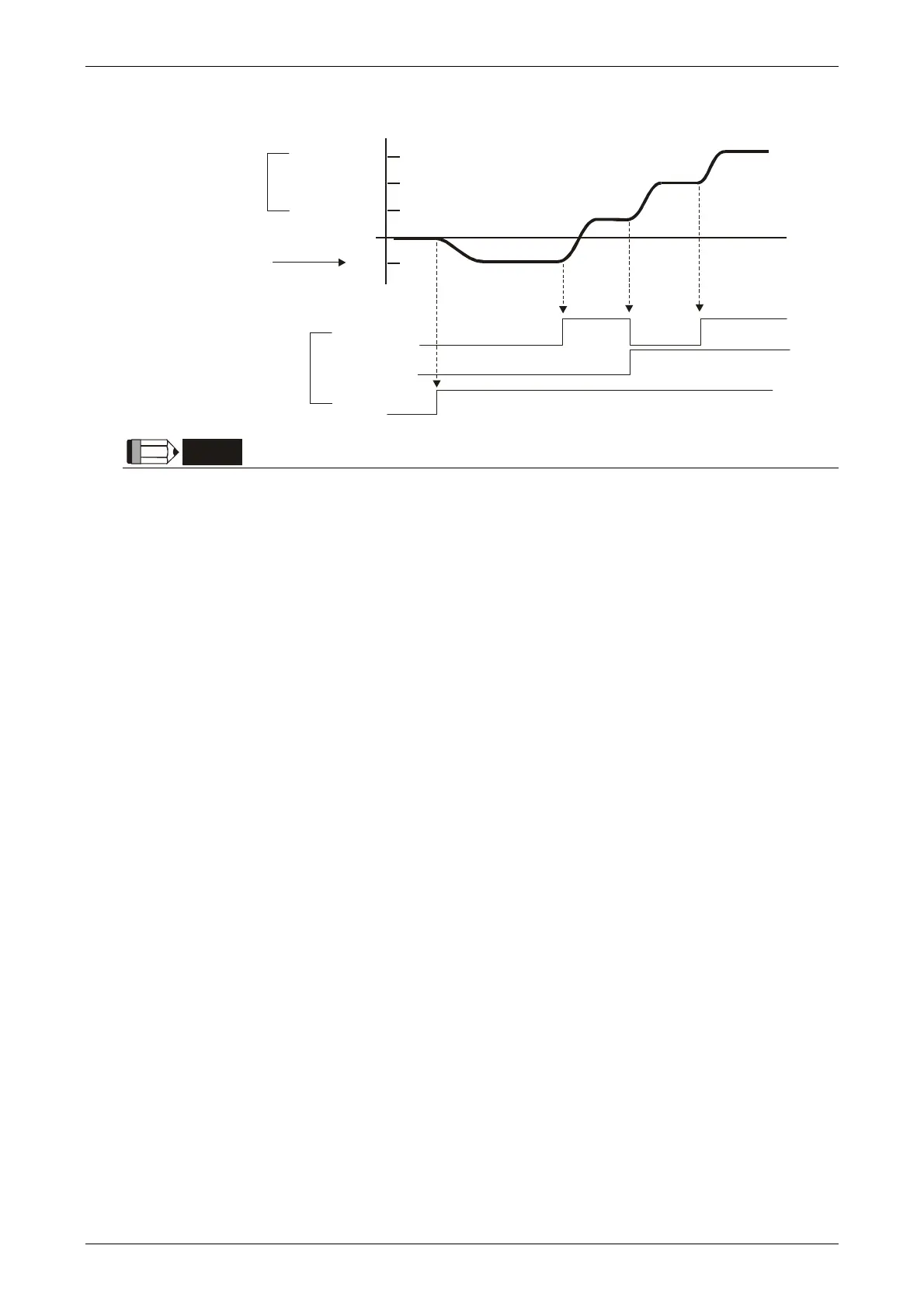

6.4.5 Timing Chart of Torque Control Mode
T4 (P1-14)
T3 (P1-13)
T2 (P1-12)
T1
TCM0
TCM1
SON
OFF
ON
OFF
ON
ON
OFF
ON
Internal speed
command
External analog
voltage or zero (0)
External I/O signal
NOTE
1) OFF indicates normally open and ON indicates normally closed.
2) When torque control mode is Tz, the torque command T1=0; when torque control mode is
T, the speed command T1 is external analog voltage input (Please refer to P1-01).
3) After Servo ON, the users can select command according to the state of TCM0~1.
