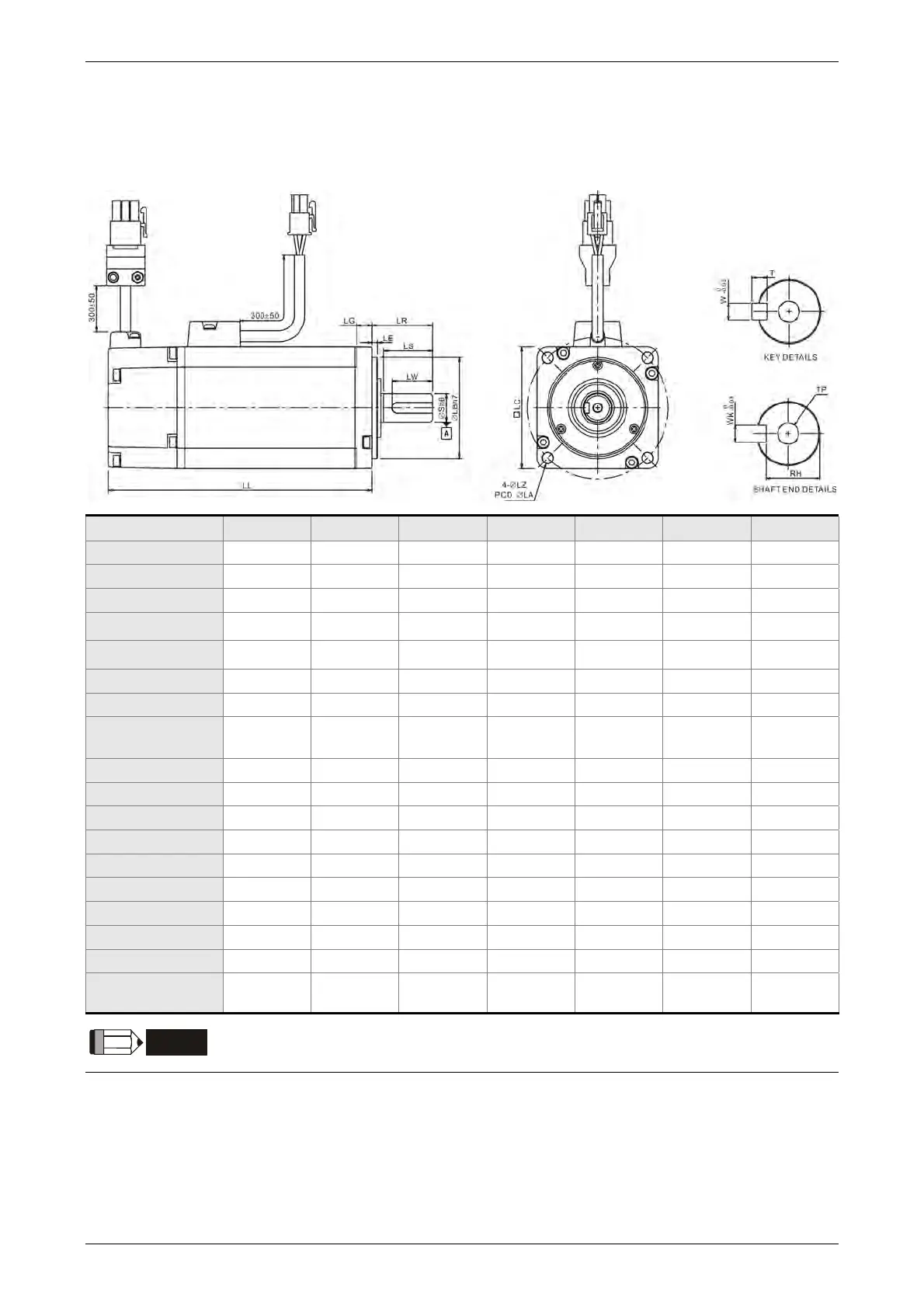

10.6 Dimensions of Servo Motors
Motor Frame Size: 86mm and below Models
Model
C△0401□S C△0602□S C△0604□S C△0804□S C△0807□S C△0907□S C△0910□S
LC 40 60 60 80 80 86 86
LZ 4.5 5.5 5.5 6.6 6.6 6.6 6.6
LA 46 70 70 90 90 100 100
S
)
(
.
8
0
0090


)
(
.
14
0
0110


)
(
.
14
0
0110


)
(
.
14
0
0110


)
(
.
19
0
0130


)
(
.
16
0
0110


)
(
.
16
0
0110


LB
)
(
.
30
0
0210


)
(
.
50
0
0250


)
(
.
50
0
0250


)
(
.
70
0
0300


)
(
.
70
0
0300


)
(
.
80
0
0300


)
(
.
80
0
0300


LL (without brake) 100.6 105.5 130.7 112.3 138.3 130.2 153.2
LL (with brake) 136.6 141.6 166.8 152.8 178 161.3 184.3
LS (without oil
seal)
20 27 27 27 32 30 30
LS (with oil seal) 20 24 24 24.5 29.5 30 30
LR 25 30 30 30 35 35 35
LE 2.5 3 3 3 3 3 3
LG 5 7.5 7.5 8 8 8 8
LW 16 20 20 20 25 20 20
RH 6.2 11 11 11 15.5 13 13
WK 3 5 5 5 6 5 5
W 3 5 5 5 6 5 5
T 3 5 5 5 6 5 5
TP
M3
Depth 8
M4
Depth 15
M4
Depth 15
M4
Depth 15
M6
Depth 20
M5
Depth 15
M5
Depth 15
NOTE
1) Dimensions are in millimeters.
2) Dimensions and weights of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) (△) in the mode of servo motor indicates the type of encoder. △ = 1: increment, 20-bit; △= 2: increment,
17-bit.
