ASDA-B2 Chapter 6 Control Modes of Operation
Revision September 2013 6-7

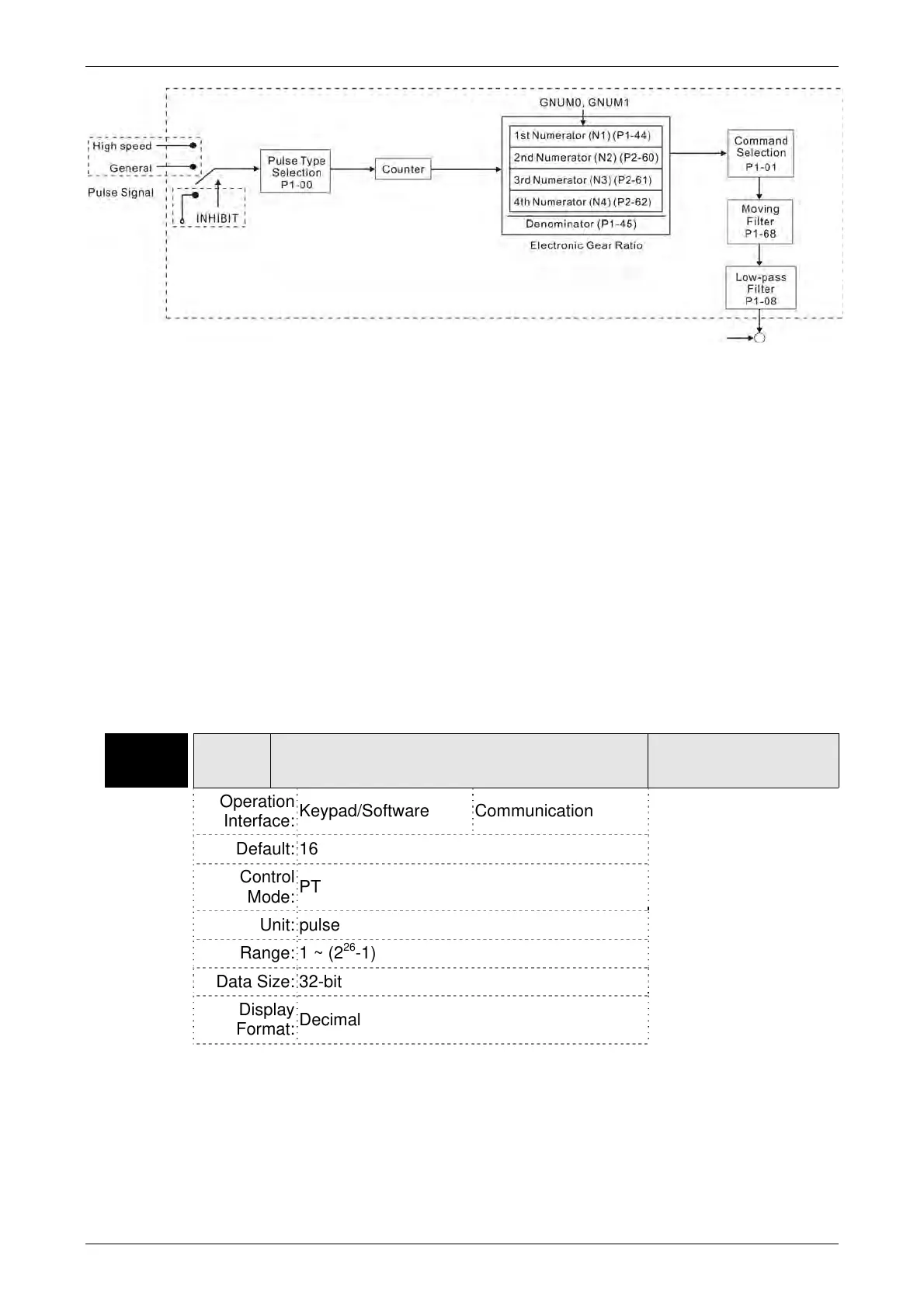

Using parameter P1-01 can select P mode. Electronic gear ratio can be set in P
modes to set proper position revolution. ASDA-B2 series servo drive also provides
low-pass filter, which are used whenever the motor and load need to be operated more
smoothly. As for the information of electronic gear ratio, and low-pass filter, please
refer to the following sections 6.2.3 and 6.2.4.
Pulse Inhibit Input Function (INHP)
INHP is activated via digital inputs (Please refer to parameter P2-10 ~ P2-17，P2-36
and DI INHP(07) in Table 7.1).When the drive is in position mode, if INHP is activated,
the external pulse input command is not valid and the motor will stop.
6.2.3 Electronic Gear Ratio
Relevant parameters:
P1-44▲
GR1 Electronic Gear Ratio (1st Numerator) (N1)
Address: 0158H
0159H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 6.2.3
Default: 16
Control
Mode:
PT
Unit: pulse
Range: 1 ~ (2
26
-1)
Data Size: 32-bit
Display
Format:
Decimal
Settings:
This parameter is used to set the numerator of the electronic gear ratio. The
denominator of the electronic gear ratio is set by P1-45. P2-60 ~ P2-62 are used to
set the additional numerators.
