Chapter 4 Display and Operation
This chapter describes the basic operation of the digital keypad and the features it offers.
4.1 Description of the Digital Keypad
The digital keypad includes the display panel and function keys. The Figure 4.1 shows all
of the features of the digital keypad and an overview of their functions.

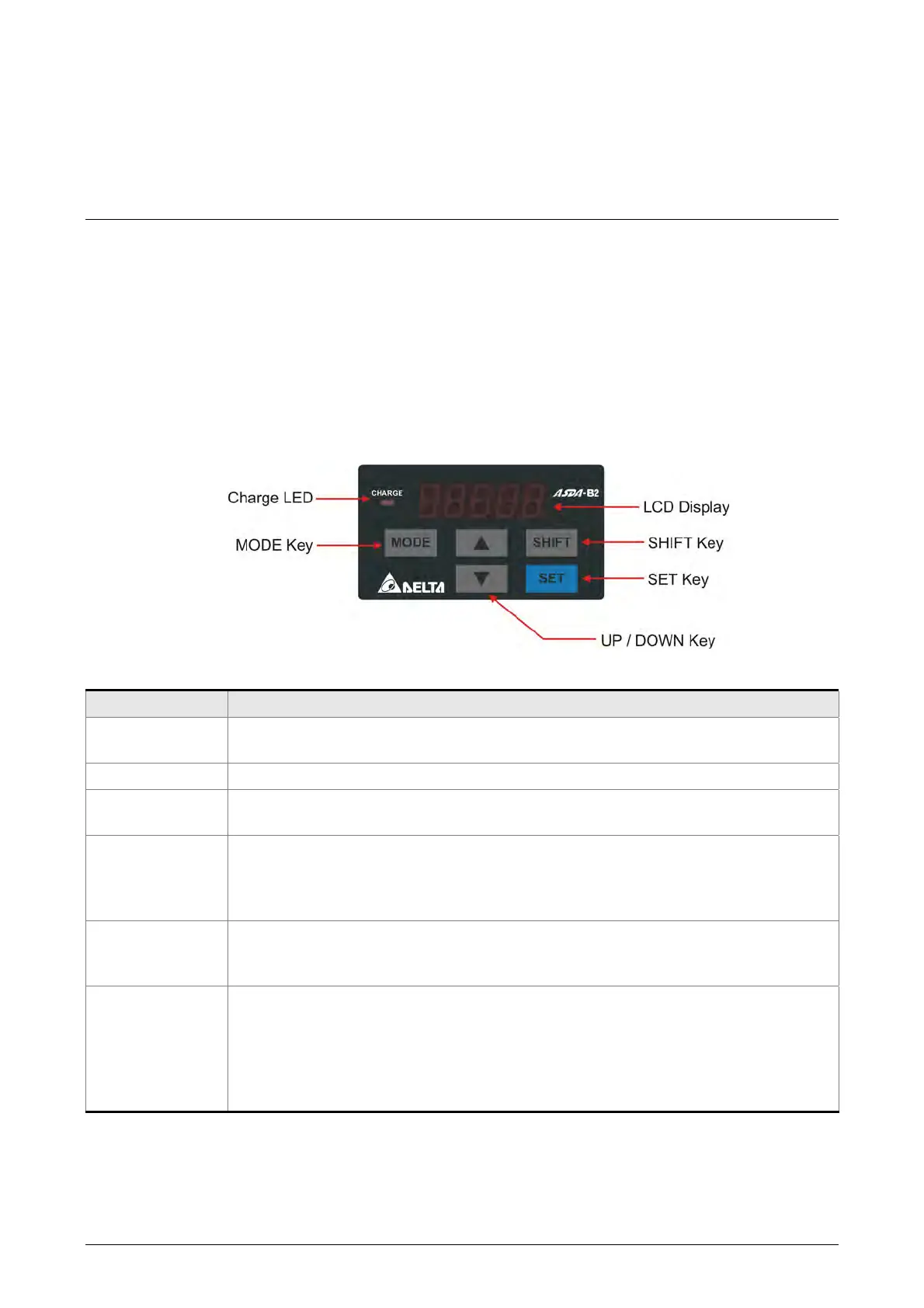

Figure 4.1
Name Function
LCD Display
The LCD Display (5-digit, 7-step display panel) shows the monitor codes,
parameter settings and operation values of the AC servo drive.
Charge LED The Charge LED lights to indicate the power is applied to the circuit.
MODE Key
MODE Key. Pressing MODE key can enter or exit different parameter groups,
and switch between Monitor mode and Parameter mode.
SHIFT Key
SHIFT Key. Pressing SHIFT key can scrolls through parameter groups. After a
parameter is selected and its value displayed, pressing SHIFT key can move
the cursor to the left and then change parameter settings (blinking digits) by
using arrow keys.
UP and DOWN
Key
UP and DOWN arrow Key. Pressing the UP and DOWN arrow key can scroll
through and change monitor codes, parameter groups and various parameter
settings.
SET Key
SET Key. Pressing the SET key can display and save the parameter groups,
the various parameter settings. In monitor mode, pressing SET key can switch
decimal or hexadecimal display. In parameter mode, pressing SET key can
enter into parameter setting mode. During diagnosis operation, pressing SET
key can execute the function in the last step. (The parameter settings changes
are not effective until the SET key is pressed.)
