3.4 Encoder Connector CN2

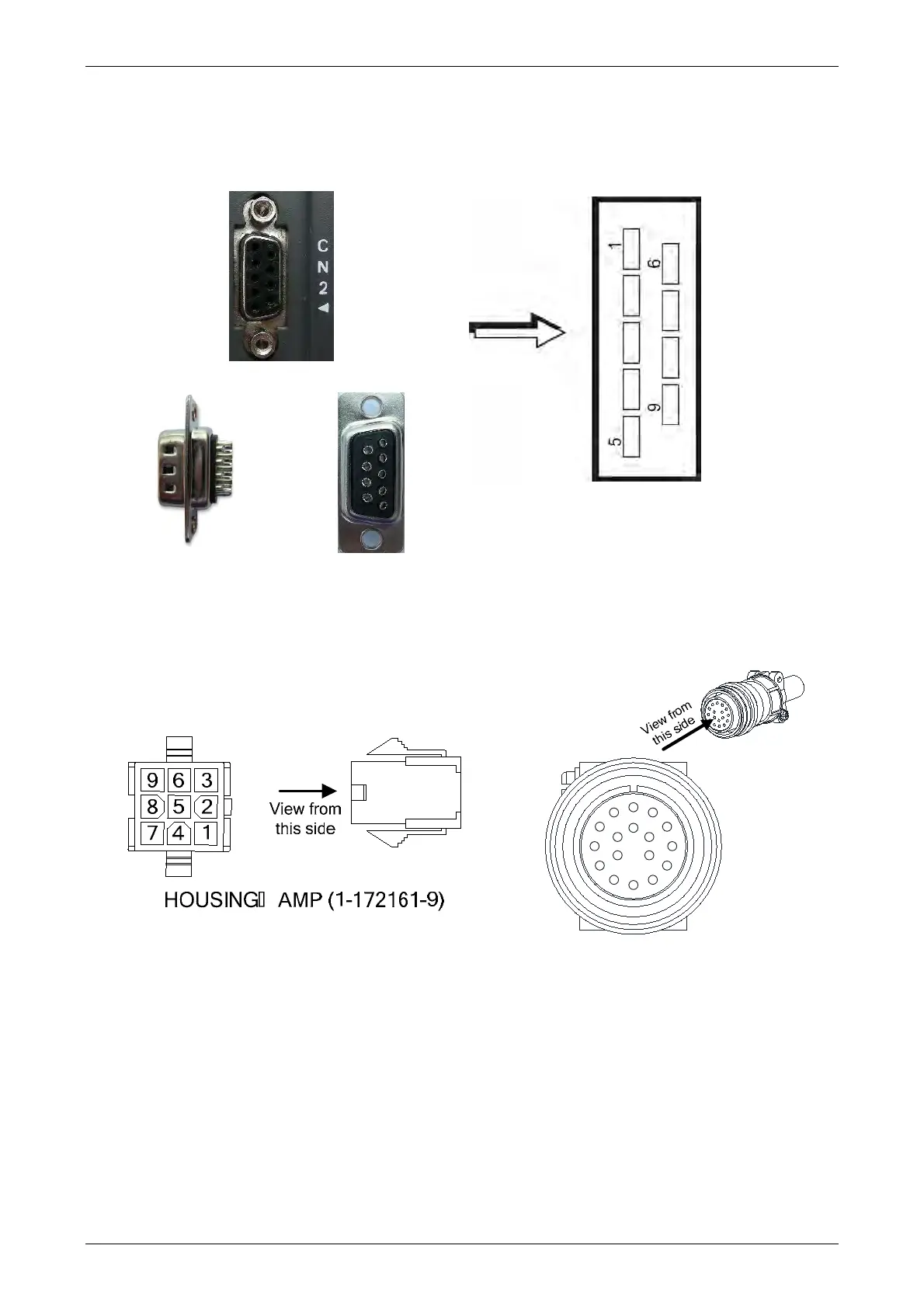

(1) The layout of CN2 Drive Connector
Side View
Rear View
(2) The layout of CN2 Motor Connector
Quick Connector
A
E
B
D
C
HF
G
L
K
J
M
N
P
RS
T
3106A-20-29S
Military Connector
