Chapter 3 Connections and Wiring ASDA-B2
3-38 Revision September 2013
CN2 Terminal Signal Identification
Drive Connector Motor Connector
PIN No.
Terminal
Identification
Description
Military
Connector
Quick
Connector
Color
4 T+
Serial communication signal
input / output (+)
A 1 Blue
5 T-
Serial communication signal
input / output (-)
B 4 Blue & Black
- - Reserved - - -
- - Reserved - - -
8 +5V +5V power supply S 7
Red / Red &
White
7, 6 GND Ground R 8
Black / Black
& White
Shell Shielding Shielding L 9 -
Using the encoder cable with shielding (double shielding is the best) is able to prevent
voltage coupling and eliminate the noise and interference from other electrical sources. Be
sure to observe the following steps to complete the shielding surrounding the encoder
cable.

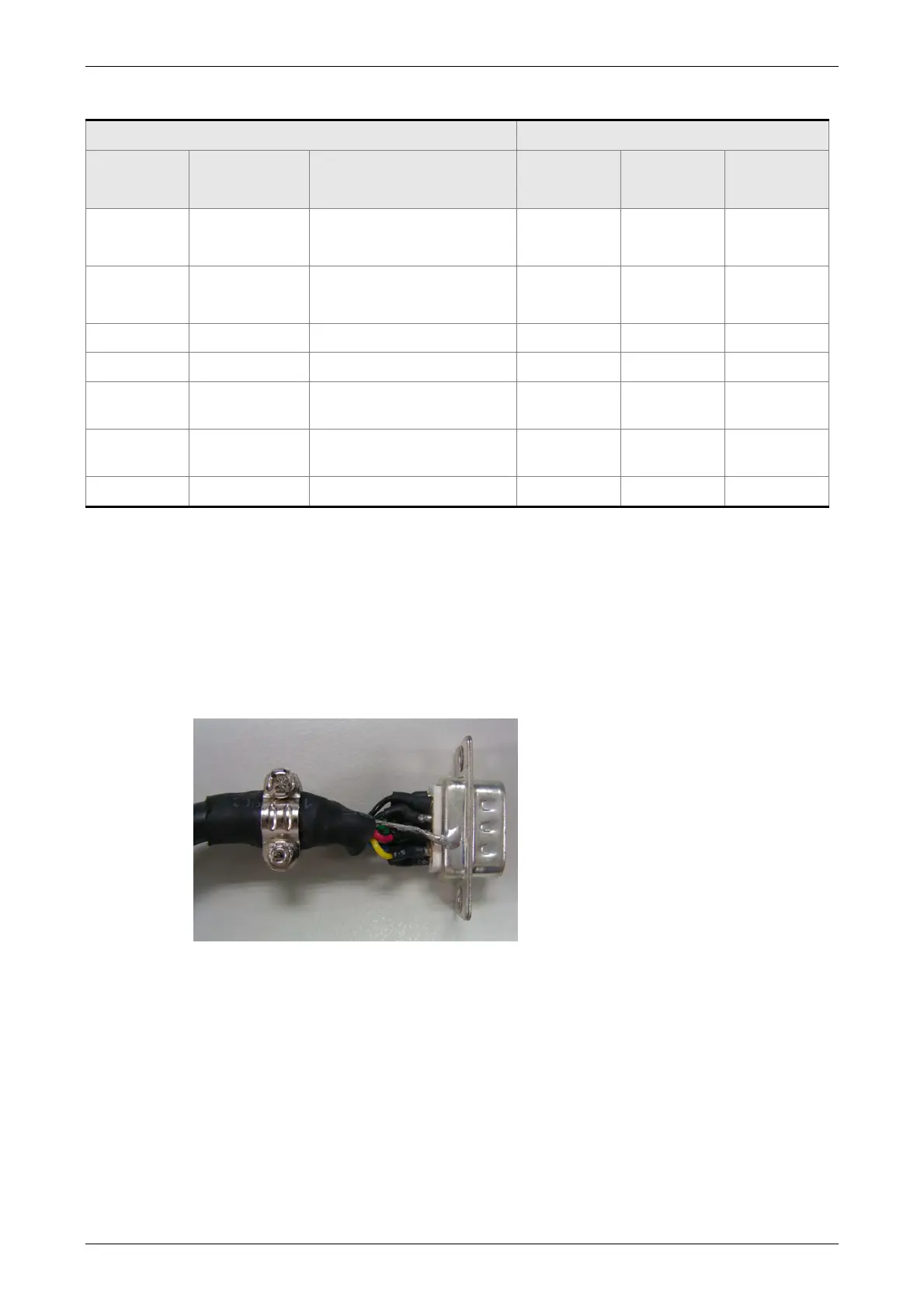

(1) Solder the centre cores on the
metal part of the connector
adequately for good ground
contact with the plate and
shielding.
