ASDA-B2 Chapter 6 Control Modes of Operation
Revision September 2013 6-15
6.3.3 Smoothing Strategy of Speed Control Mode

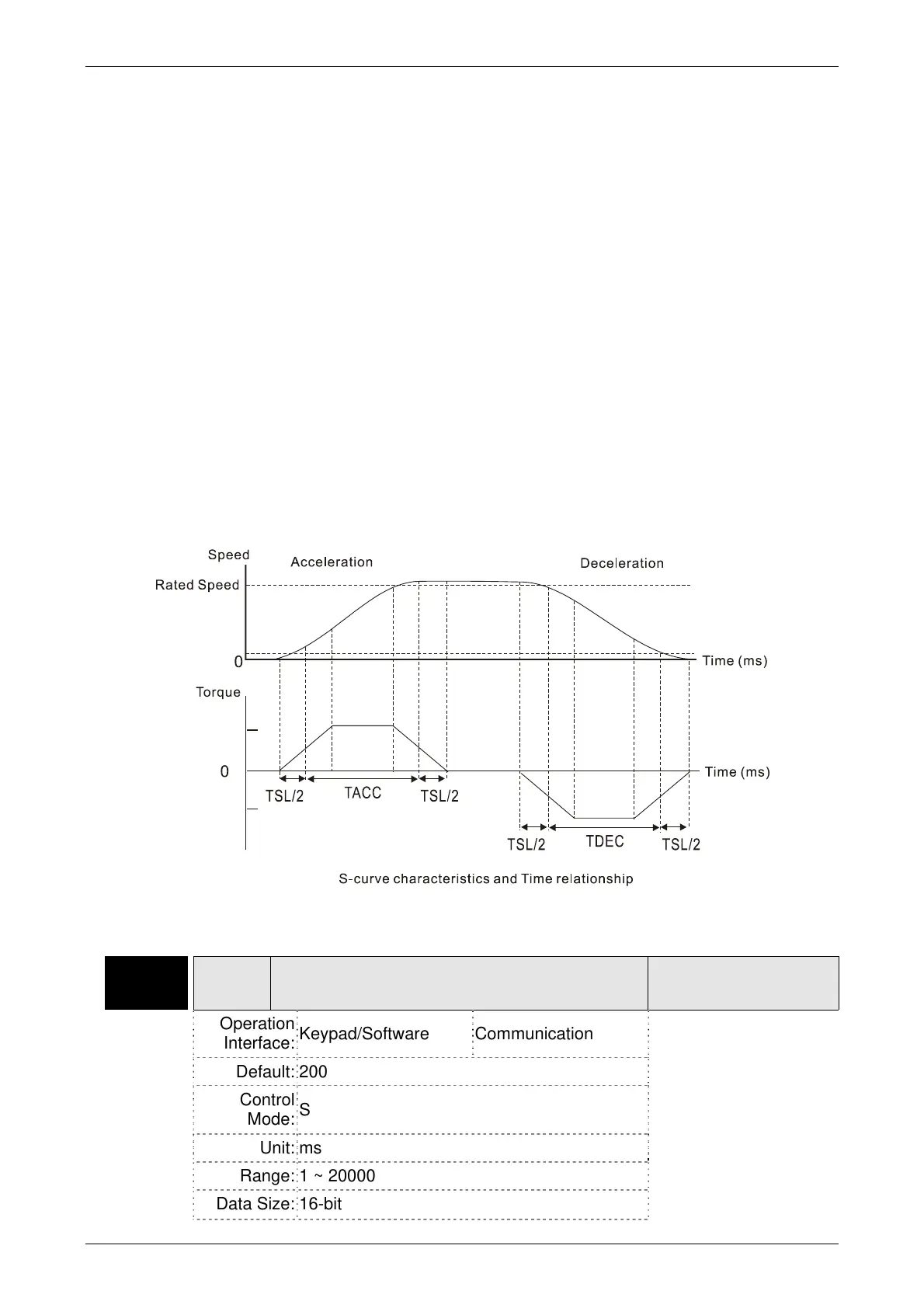

S-curve Filter
The S-curve filter is a speed smoothing command which provides 3 steps accel / decel
S-curve to smooth the speed command change of the motor during acceleration and
deceleration. Using S-curve filter can let the servo motor run more smoothly in
response to a sudden speed command change. Since the speed and acceleration
curve are both continuous, in order to avoid the mechanical resonance and noise may
occur due to a sudden speed command (differentiation of acceleration), using S-curve
filter not only can improve the performance when servo motor accelerate or decelerate
but also can make the motor run more smoothly. S-curve filter parameters include P1-
34 Acceleration Time (TACC), P1-35 Deceleration Time (TDEC) and Accel /Decel S-
curve (TSL), and the users can use these three parameters to improve the motor
performance during acceleration, deceleration and operation. ASDA-B2 series servo
drives also support the time calculation of completing speed command. T (ms) is the
operation (running) time. S (r/min) is absolute speed command, i.e. the absolute value
(the result) after starting speed subtracts the final speed.
Relevant parameters:
P1-34 TACC Acceleration Time
Address: 0144H
0145H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 6.3.3
Default: 200
Control
Mode:
S
Unit: ms
Range: 1 ~ 20000
Data Size: 16-bit
