Delta Electronics ASDA-B2 series User Manual

ASDA-B2 Chapter 3 Connections and Wiring
Revision September 2013 3-29

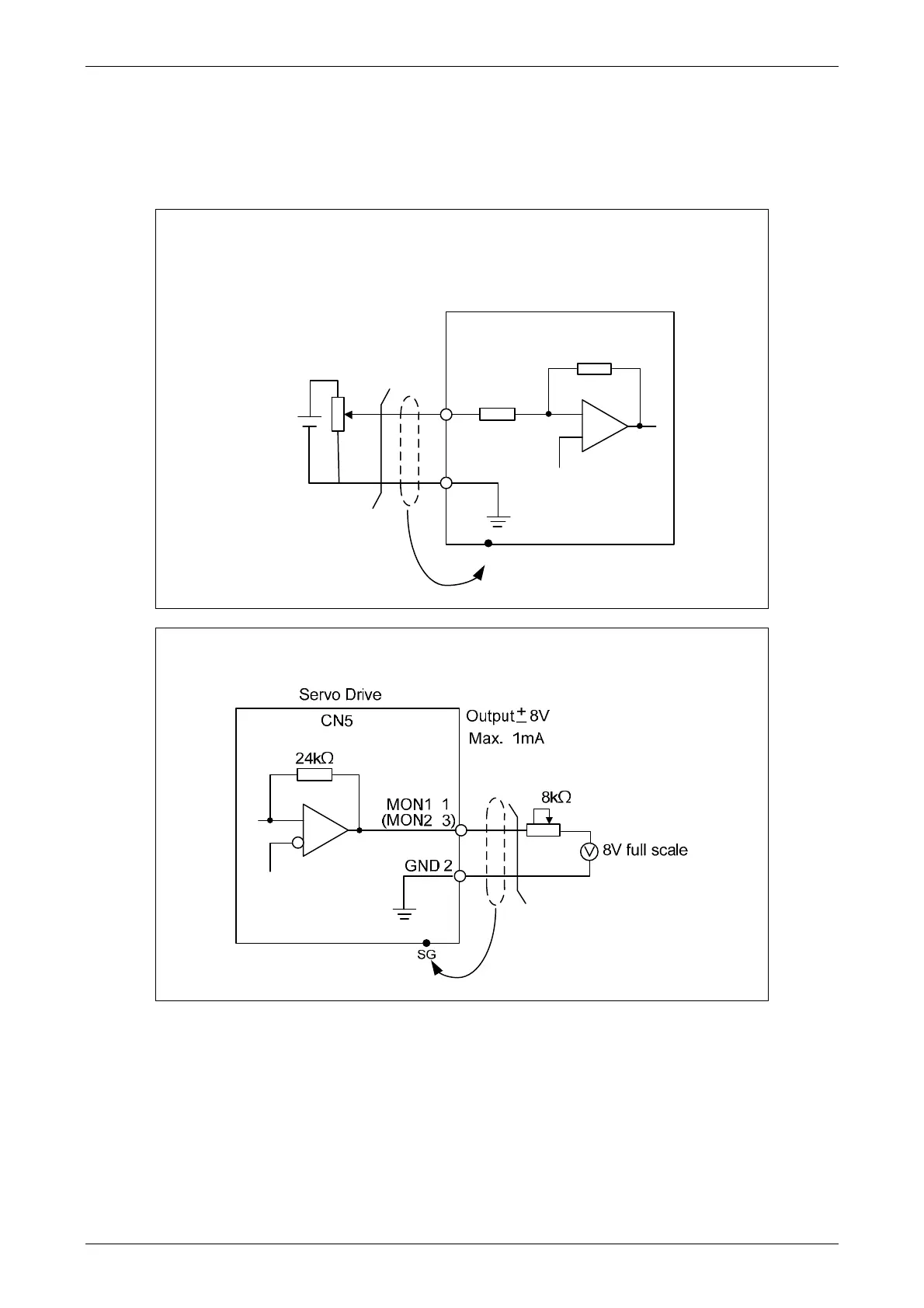

3.3.3 Wiring Diagrams of I/O Signals (CN1)
The valid voltage range of analog input command in speed and torque mode is -10V
~+10V. The command value can be set via relevant parameters.
C1: Speed / Torque analog signal input
GND
Approx.
10kΩ
SG
20 V-REF
19
Servo Drive
(18 T-REF )
10kΩ
10kΩ
10V
_+
C2: Analog monitor output (MON1, MON2)
