ASDA-B2 Chapter 3 Connections and Wiring
Revision September 2013 3-41
3.6 Analog Monitor Output Connector - CN5
Analog Monitor Output Connector CN5 is used to monitor the motor operation status.
Motor characteristics such as speed and current can be represented by analog voltages.
The drive provides two channels (MON1 and MON2) which can be configured with the
parameter P0-03 to output the desired characteristics.
Please refer to the parameter P0-03 for monitoring commands and P1-04 / P1-05 for
scaling factors. Output voltage is reference to the power ground (GND).

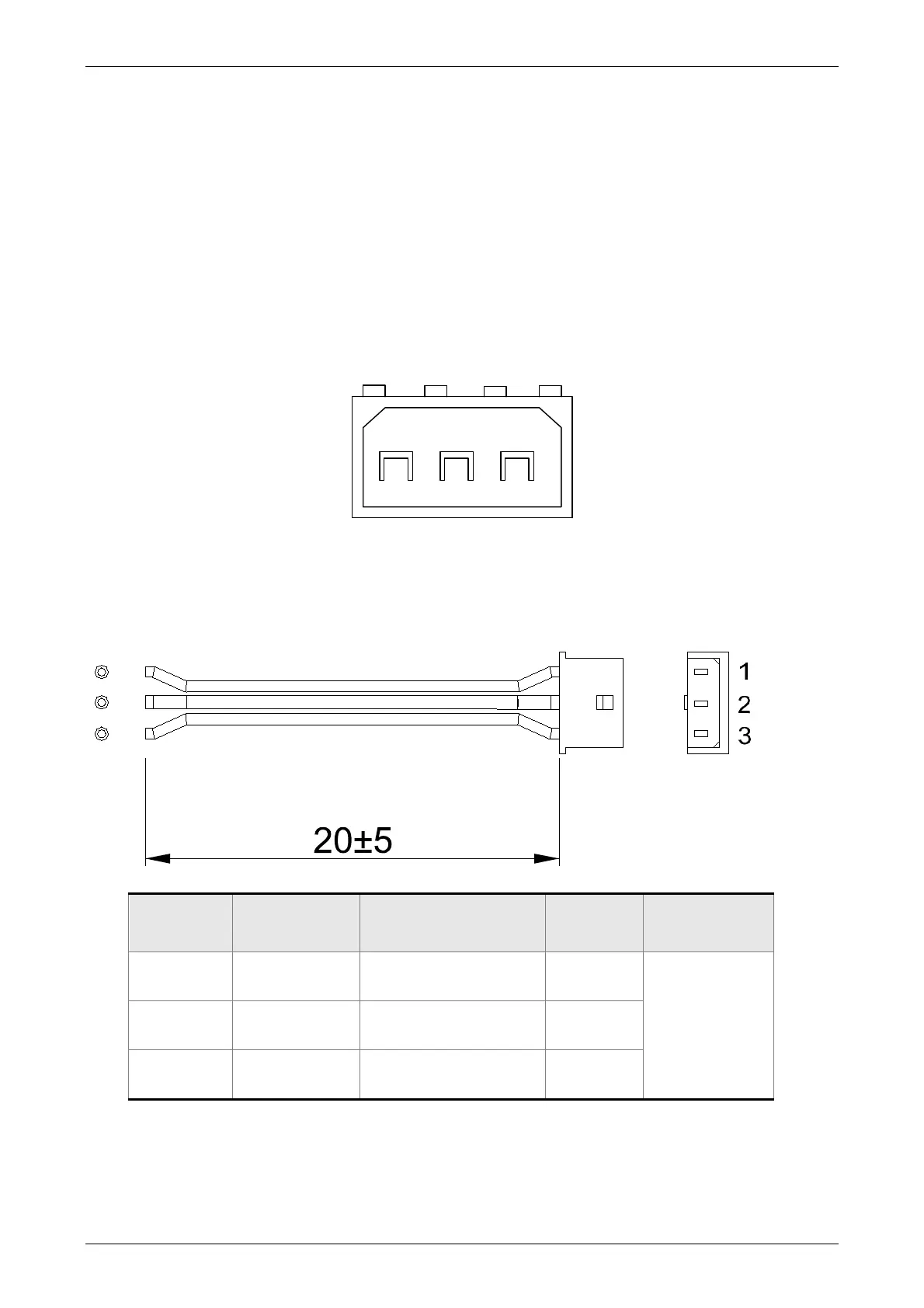

CN5 Terminal Layout and Identification
123
CN5
Signal Cable for CN5 Connector
PIN No. Signal Name Description Color
Wiring Diagram
(Refer to 3.3.3)
1
MON1 Monitor analog data 1
Red
C2 2
GND
Ground White
3
MON2 Monitor analog data 2
Black
