ASDA-B2 Chapter 3 Connections and Wiring
Revision September 2013 3-15

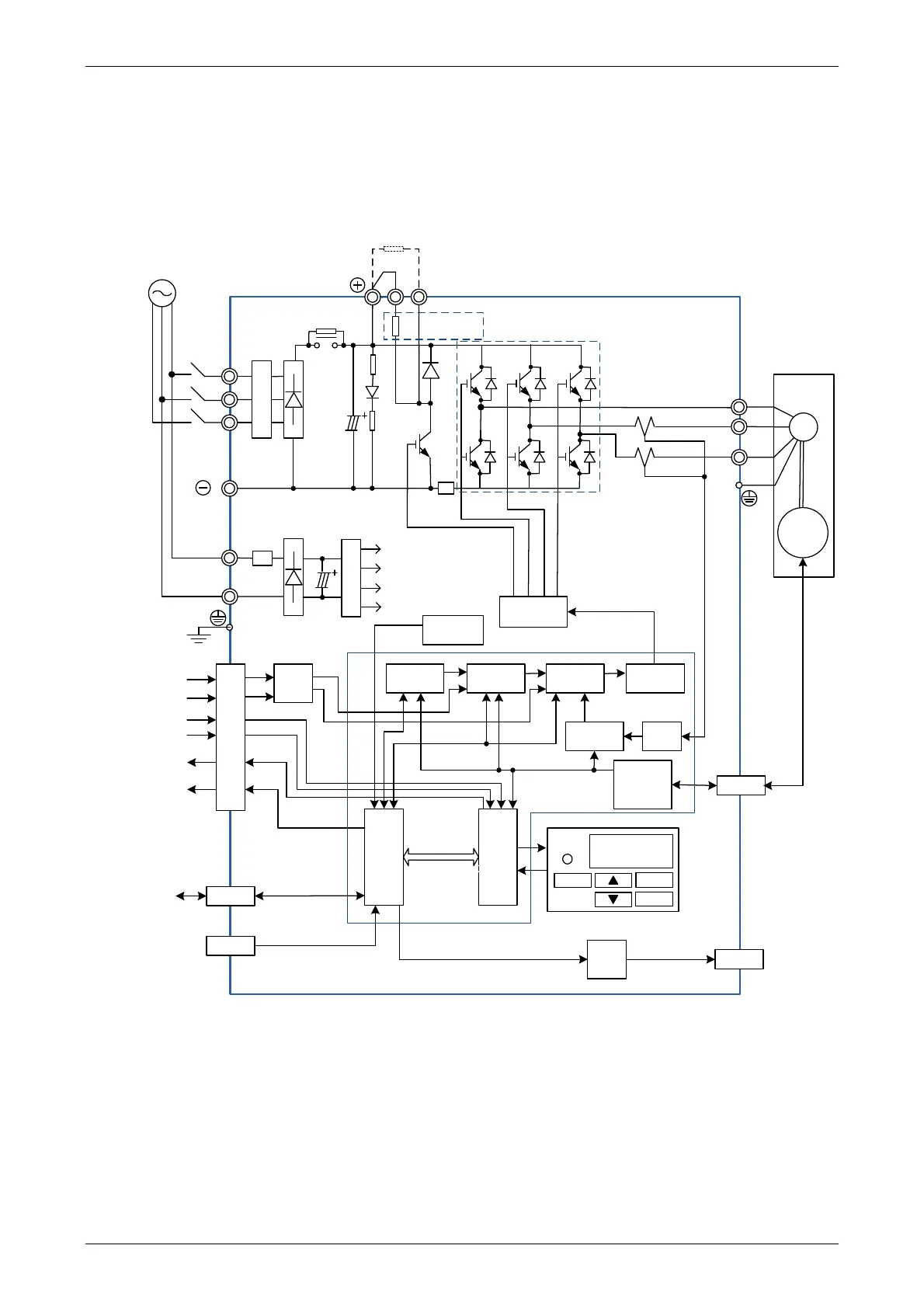

3.2 Basic Wiring
3.2.1 400W and below models
(with built-in regenerative resistor, but without cooling fan)
Power
1-phase/3-phase
200~230V
L1C
L2C
PWM
Rectifier Circuit
U
V
W
CPLD
DSP
Data
Bus
CN3
CN2
CN4
Encoder
Signal
Processing
A/D
Current
Signal
Processing
Speed
Control
Current
Control
Position
Control
GATE
DRIVE
CN1
A/D
External Speed
External Torque
Position Pulse
Digital Input
Digital Output
Encoder Signal
A, B, Z Output
Serial
Communication
RS-232/RS-485
Analog
Monitor
Output
Encoder
Servo
Motor
M
Protection
Circuit
+3.3V
Regeneration
Circuit
Control Power
±15V
+5V
+24V
C
S
T
D
R
P
Connect to external
regenerative resistor
Servo Drive
Battery
PRB 60W
IPM Module
D/A CN5
Display
CHARGE
MODE SHIFT
SET
Phase Loss
Detection
