ASDA-B2 Chapter 3 Connections and Wiring
Revision September 2013 3-7

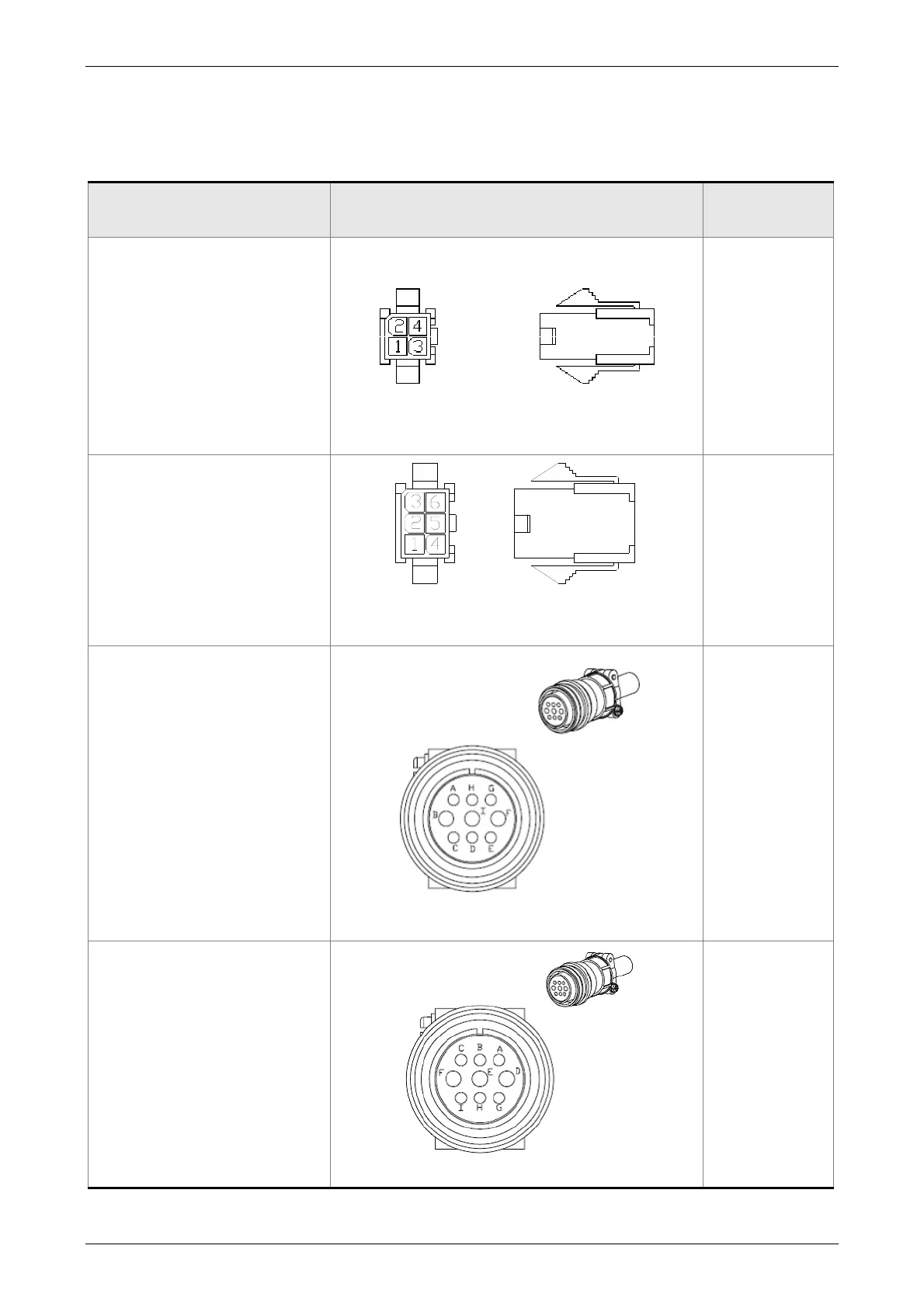

3.1.4 Motor Power Cable Connector Specifications
The boxes () in the model names are for optional configurations. (Please refer to
section 1.2 for model explanation.)
Motor Model Name U, V, W / Electromagnetic Brake Connector
Terminal
Identification
ECMA-C0401S (100W)
ECMA-C0602S (200W)
ECMA-C0604S (400W)
ECMA-CM0604PS (400W)
ECMA-C08047 (400W)
ECMA-C0807S (750W)
ECMA-C0907S (750W)
ECMA-C0910S (1000W)
HOUSING: JOWLE (C4201H00-2*2PA)
A
ECMA-C0602S (200W)
ECMA-C0604S (400W)
ECMA-CM0604PS (400W)
ECMA-C08047 (400W)
ECMA-C0807S (750W)
ECMA-C0907S (750W)
ECMA-C0910S (1000W)
HOUSING: JOWLE (C4201H00-2*3PA)
B
ECMA-G1303S (300W)
ECMA-E1305S (500W)
ECMA-G1306S (600W)
ECMA-GM1306PS (600W)
ECMA-G1309S (900W)
ECMA-GM1309PS (900W)
ECMA-C1010S (1000W)
ECMA-E1310S (1000W)
ECMA-E1315S (1500W)
ECMA-C1020S (2000W)
ECMA-E1320S (2000W)
3106A-20-18S
C
ECMA-E1820S (2000W)
ECMA-E1830S (3000W)
ECMA-F1830S (3000W)
3106A-24-11S
D
