Chapter 1 Unpacking Check and Model Explanation ASDA-B2
1-2 Revision September 2013
Part II : Optional parts (Refer to Appendix A)
(1) One power cable, which is used to connect servo motor to U, V, W terminals of
servo drive. This power cable includes a green grounding cable. Please connect the
green grounding cable to the ground terminal of the servo drive.
(2) One encoder cable, which is used to connect the encoder of servo motor to the
CN2 terminal of servo drive.
(3) CN1 Connector: 4 PIN Connector (3M type analog product)
(4) CN2 Connector: 9 PIN Connector (3M type analog product)
(5) CN3 Connector: 6 PIN Connector (IEEE1394 analog product)
1.2 Model Explanation

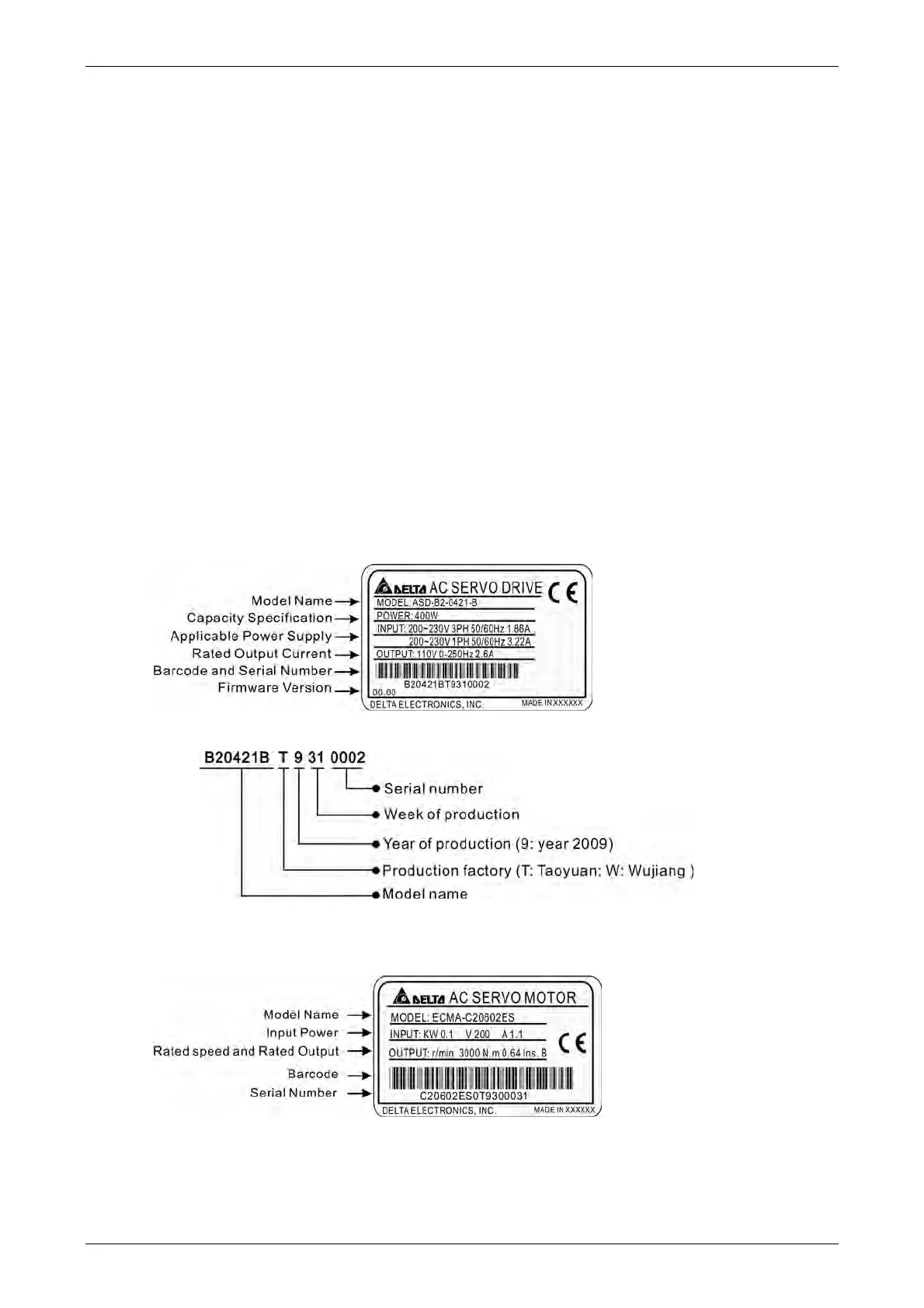

1.2.1 Nameplate Information
ASDA-B2 Series Servo Drive
 Nameplate Explanation
 Serial Number Explanation
ASMT Series Servo Motor
 Nameplate Explanation
