The parameters P2-23 and P2-24 are the first group of notch filter parameters and
the parameters P2-43 and P2-44 are the second group of notch filter parameters.

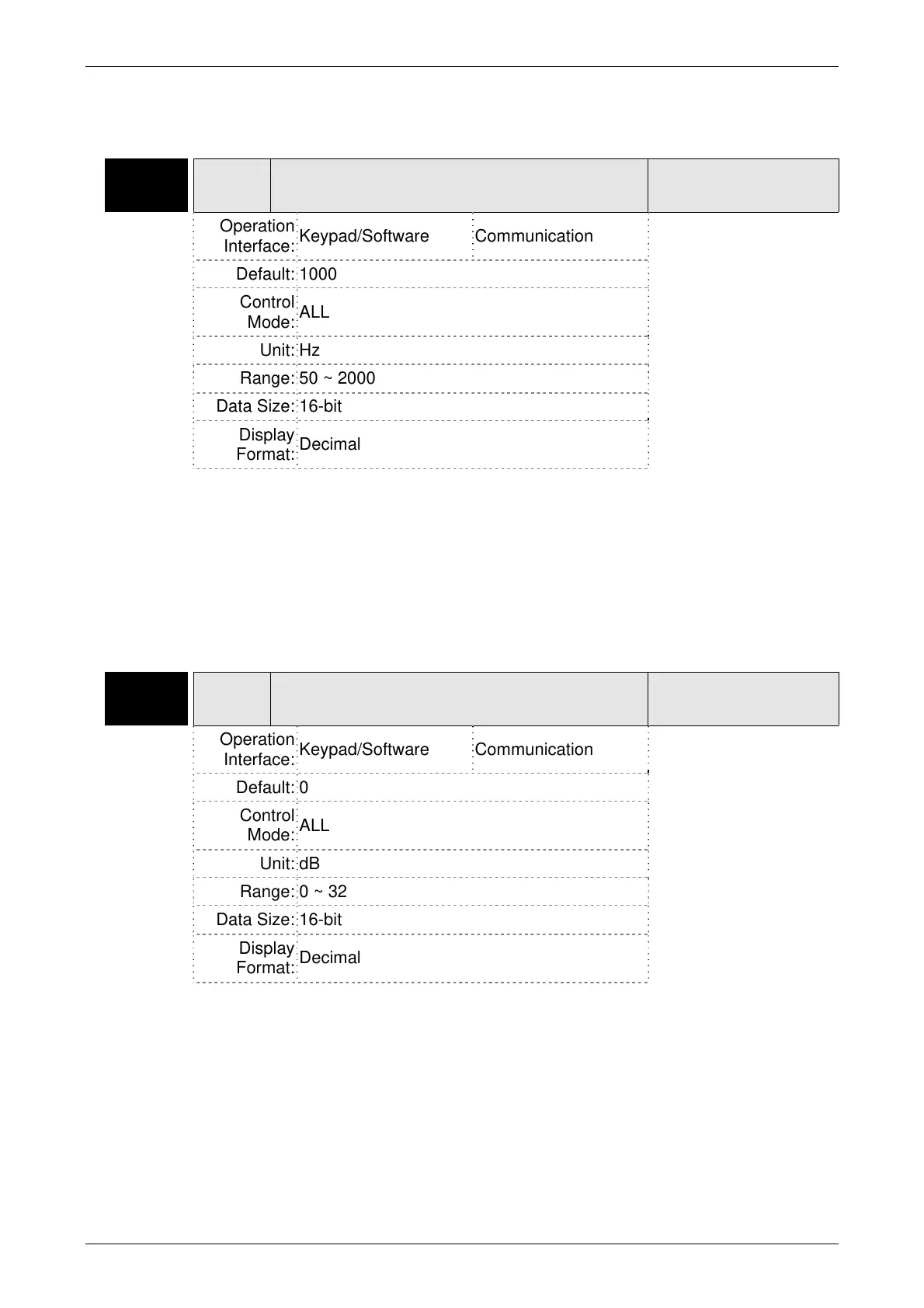

P2-43 NCF2 Notch Filter 2 (Resonance Suppression)
Address: 0256H
0257H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 6.3.7
Default: 1000
Control
Mode:
ALL
Unit: Hz
Range: 50 ~ 2000
Data Size: 16-bit
Display
Format:
Decimal
Settings:
This parameter is used to set second resonance frequency of mechanical system. It
can be used to suppress the resonance of mechanical system and reduce the
vibration of mechanical system.
If P2-43 is set to 0, this parameter is disabled.
The parameters P2-23 and P2-24 are the first group of notch filter parameters and
the parameters P2-43 and P2-44 are the second group of notch filter parameters.
P2-44 DPH2
Notch Filter Attenuation Rate 2
(Resonance Suppression)
Address: 0258H
0259H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 6.3.7
Default: 0
Control
Mode:
ALL
Unit: dB
Range: 0 ~ 32
Data Size: 16-bit
Display
Format:
Decimal
Settings:
This parameter is used to set magnitude of the resonance suppression that is set by
parameter P2-43. If P2-44 is set to 0, the parameters P2-43 and P2-44 are both
disabled.
