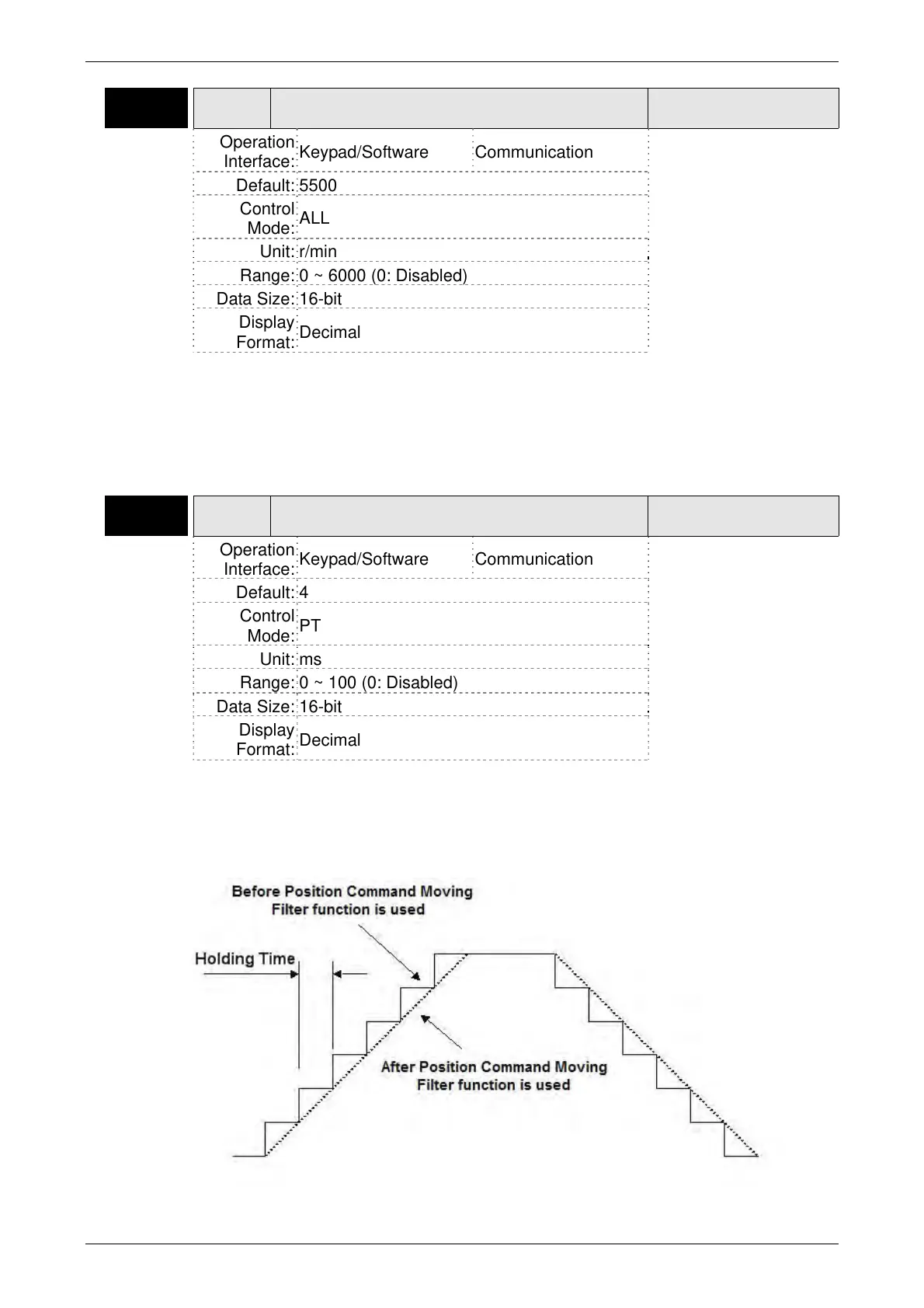

P1-76 AMSPD Max. Rotation Speed of Encoder Output
Address: 0198H
0199H
Operation
Interface:
Keypad/Software Communication
Related Section: P1-46
Default: 5500
Control
Mode:
ALL
Unit: r/min
Range: 0 ~ 6000 (0: Disabled)
Data Size: 16-bit
Display
Format:
Decimal
Settings:
This parameter is used to optimize the encoder outputs (OA, OB). When the users set
the actual reached maximum motor speed, the servo drive will equalize the encoder
outputs automatically. When P1-76 is set to 0, it indicates that equalizing function is
not available.
P1-77 PFLT3 Position Command Moving Filter 2
Address: 019AH
019BH
Operation
Interface:
Keypad/Software Communication
Related Section: N/A
Default: 4
Control
Mode:
PT
Unit: ms
Range: 0 ~ 100 (0: Disabled)
Data Size: 16-bit
Display
Format:
Decimal
Settings:
Moving Filter can be used to smooth the start and the end of step position command.
Using Moving Filter can facilitate the smooth operation of the motor very effectively,
but it will cause command delay.
