ASDA-B2 Chapter 8 MODBUS Communications
Revision September 2013 8-5

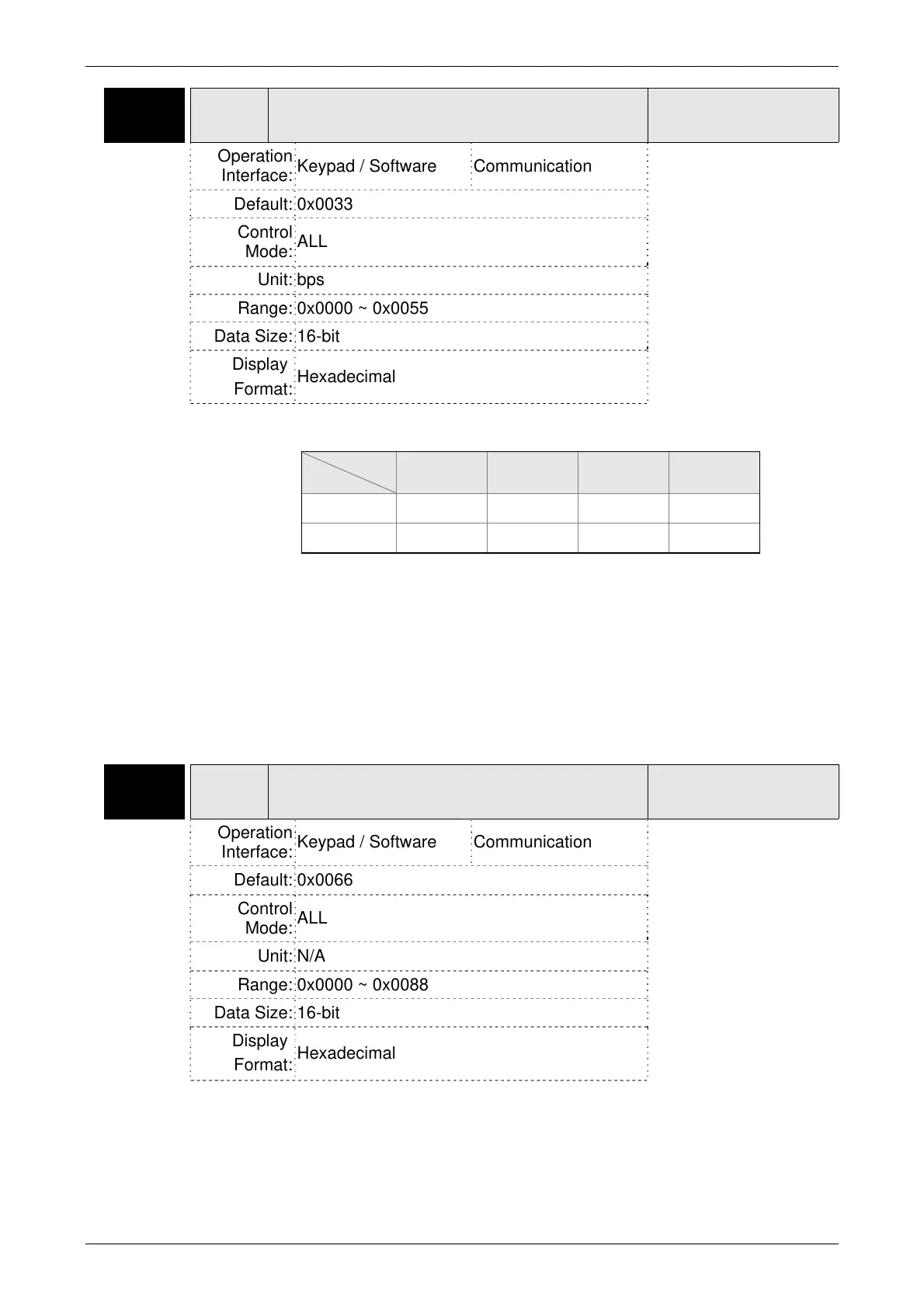

P3-01 BRT Transmission Speed
Address: 0302H
0303H
Operation
Interface:
Keypad / Software Communication
Related Section:
Section 8.2
Default: 0x0033
Control
Mode:
ALL
Unit: bps
Range: 0x0000 ~ 0x0055
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: This p arameter is used to set the baud rate and data transmission
speed of the communications.
0 Z Y X
COM Port - - RS-485 RS-232
Range 0 0 0 ~ 5 0 ~ 5
Settings:
0: Baud rate 4800 (data transmission speed: bits / second)
1: Baud rate 9600 (data transmission speed: bits / second)
2: Baud rate 19200 (data transmission speed: bits / second)
3: Baud rate 38400 (data transmission speed: bits / second)
4: Baud rate 57600 (data transmission speed: bits / second)
5: Baud rate 115200 (data transmission speed: bits / second)
P3-02 PTL Communication Protocol
Address: 0304H
0305H
Operation
Interface:
Keypad / Software Communication
Related Section:
Section 8.2
Default: 0x0066
Control
Mode:
ALL
Unit: N/A
Range: 0x0000 ~ 0x0088
Data Size: 16-bit
Display
Format:
Hexadecimal
