Delta Electronics ASDA-B2 series - Page 317

Chapter 10 Specifications ASDA-B2
10-18 Revision September 2013

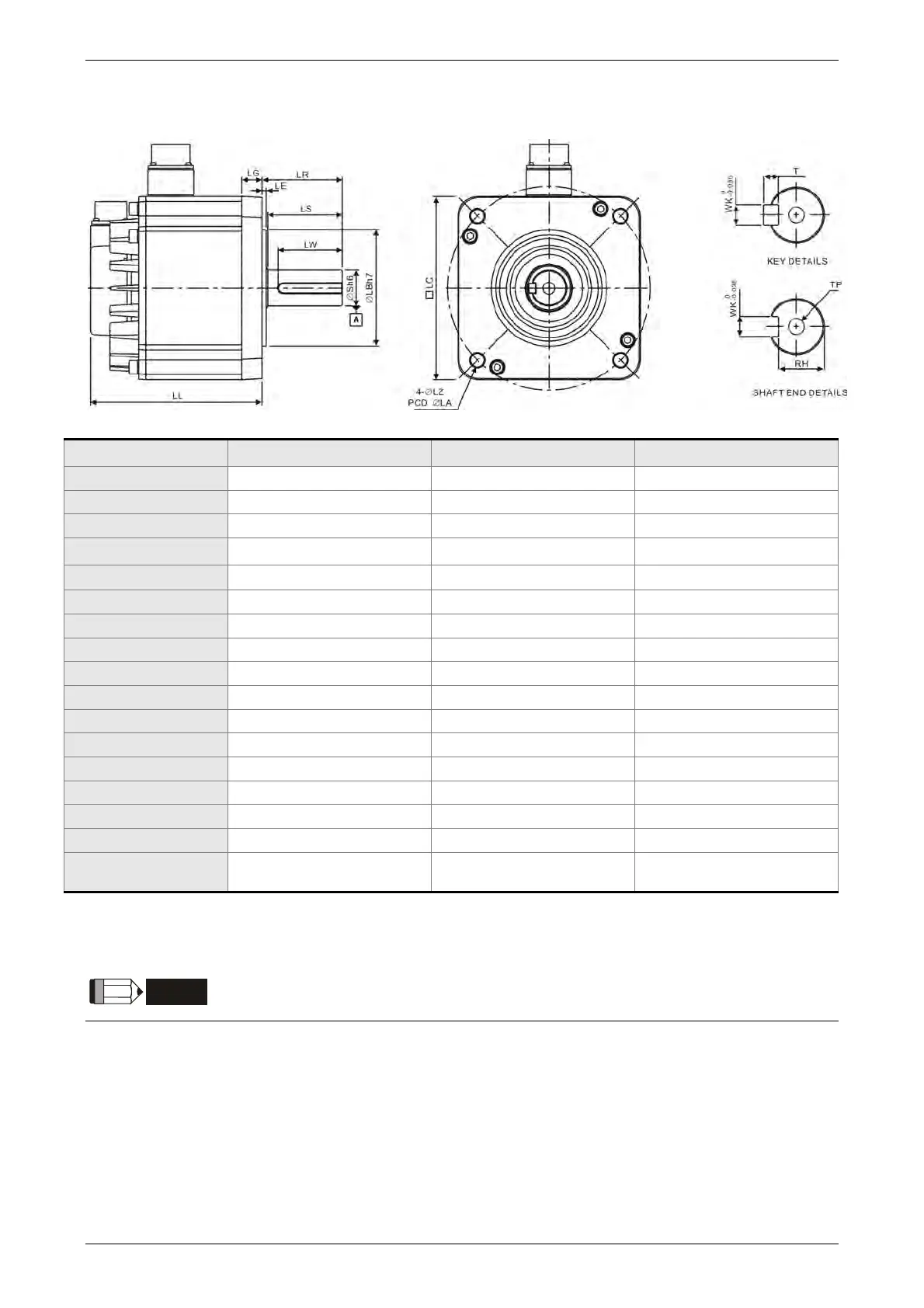

Motor Frame Size: 180mm Models
Model
E△1820□S E△1830□S F△1830□S
LC 180 180 180
LZ 13.5 13.5 13.5
LA 200 200 200
S
)
(
.
35
0
0160


)
(
.
35
0
0160


)
(
.
35
0
0160


LB )
(.
.
3114
0
0350


)
(.
.
3114
0
0350


)
(.
.
3114
0
0350


LL (without brake) 169 202.1 202.1
LL (with brake) 203.1 235.3 235.3
LS 73 73 73
LR 79 79 79
LE 4 4 4
LG 20 20 20
LW 63 63 63
RH 30 30 30
WK 10 10 10
W 10 10 10
T 8 8 8
TP
M12
Depth 25
M12
Depth 25
M12
Depth 25
NOTE
1) Dimensions are in millimeters.
2) Dimensions and weights of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
4) (
△
) in the mode of ser
△
vo motor indicates the type of encoder. = 1: increment, 20-
△
bit; = 2: increment,
17-bit.
