Delta Electronics ASDA-B2 series

Chapter 3 Connections and Wiring ASDA-B2
3-12 Revision September 2013
The boxes () in the model names are for optional configurations (keyway, brake and
oil seal). (Please refer to section 1.2 for model explanation.)

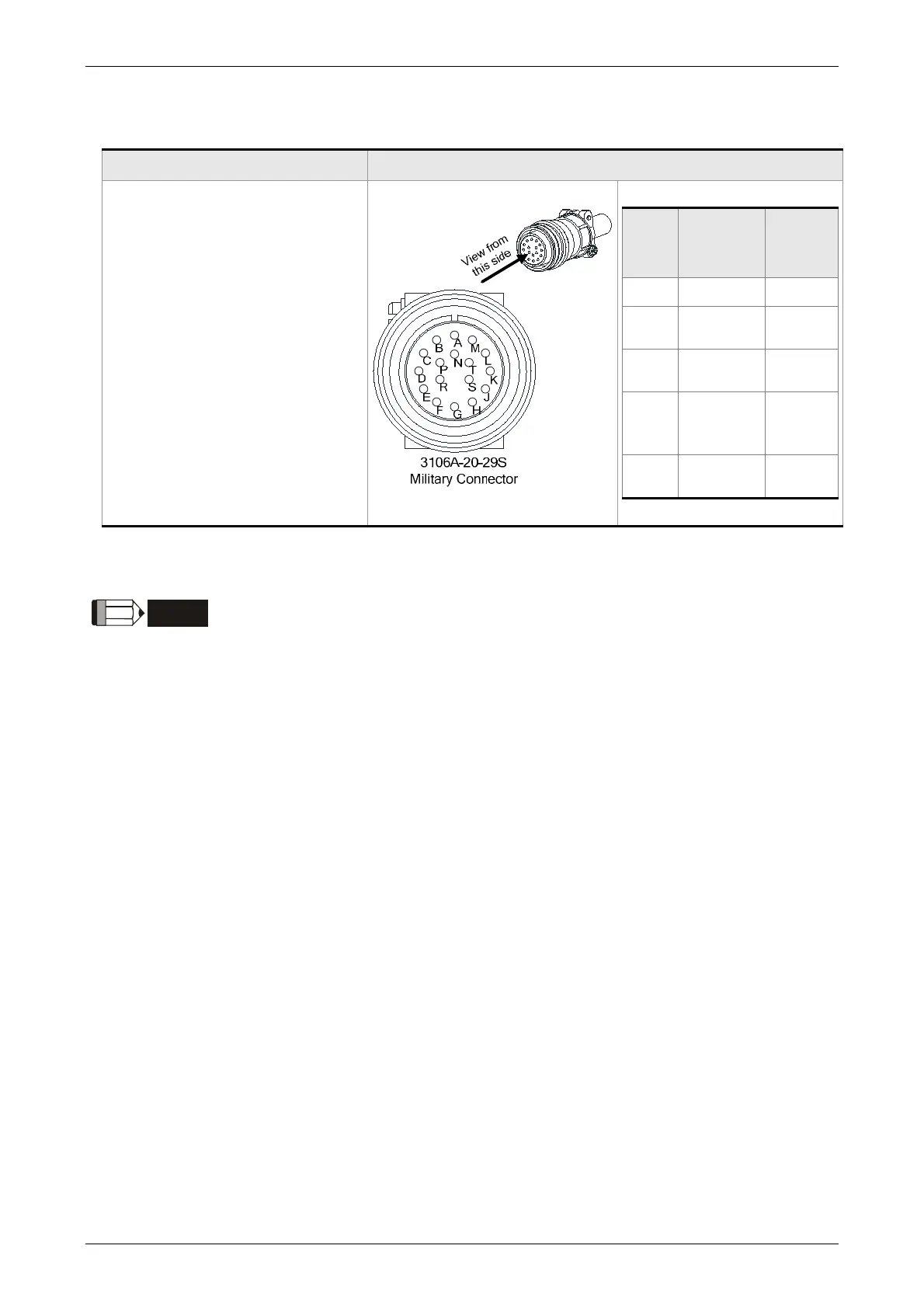

Motor Model Name Encoder Connector
ECMA-G21303S (300W)
ECMA-E21305S (500W)
ECMA-G21306S (600W)
ECMA-GM1306PS (600W)
ECMA-G21309S (900W)
ECMA-GM1309PS (900W)
ECMA-C21010S (1000W)
ECMA-E21310S (1000W)
ECMA-E21315S (1500W)
ECMA-C21020S (2000W)
ECMA-E21320S (2000W)
ECMA-E21820S (2000W)
ECMA-E21830S (3000W)
ECMA-F21830S (3000W)
Pin
No.
Terminal
Identificati
on
Color
A T+ Blue
B T -
Blue&
Black
S DC+5V
Red/Red
&White
R GND
Black/
Black&
White
L
BRAID
SHIELD
–
Please select shielded multi-core and the shielded cable should connect to the SHIELD end.
Please refer to the description of Section 3.1.6.
NOTE
Box, () in servo motor model represents brake or keyway / oil seal.
