ASDA-B2 Chapter 5 Trial Run and Tuning Procedure
Revision September 2013 5-5
“Emergency Stop (EMGS)”. (The setting value of parameter P2-10 to P2-17
and P2-36 is not set to 21.)
If it is necessary to use “Emergency Stop (EMGS)” as input signal, the users
only need to confirm that which of digital inputs DI1~DI9 is set to “Emergency
Stop (EMGS)” and check if the digital input signal is ON (It should be activated).

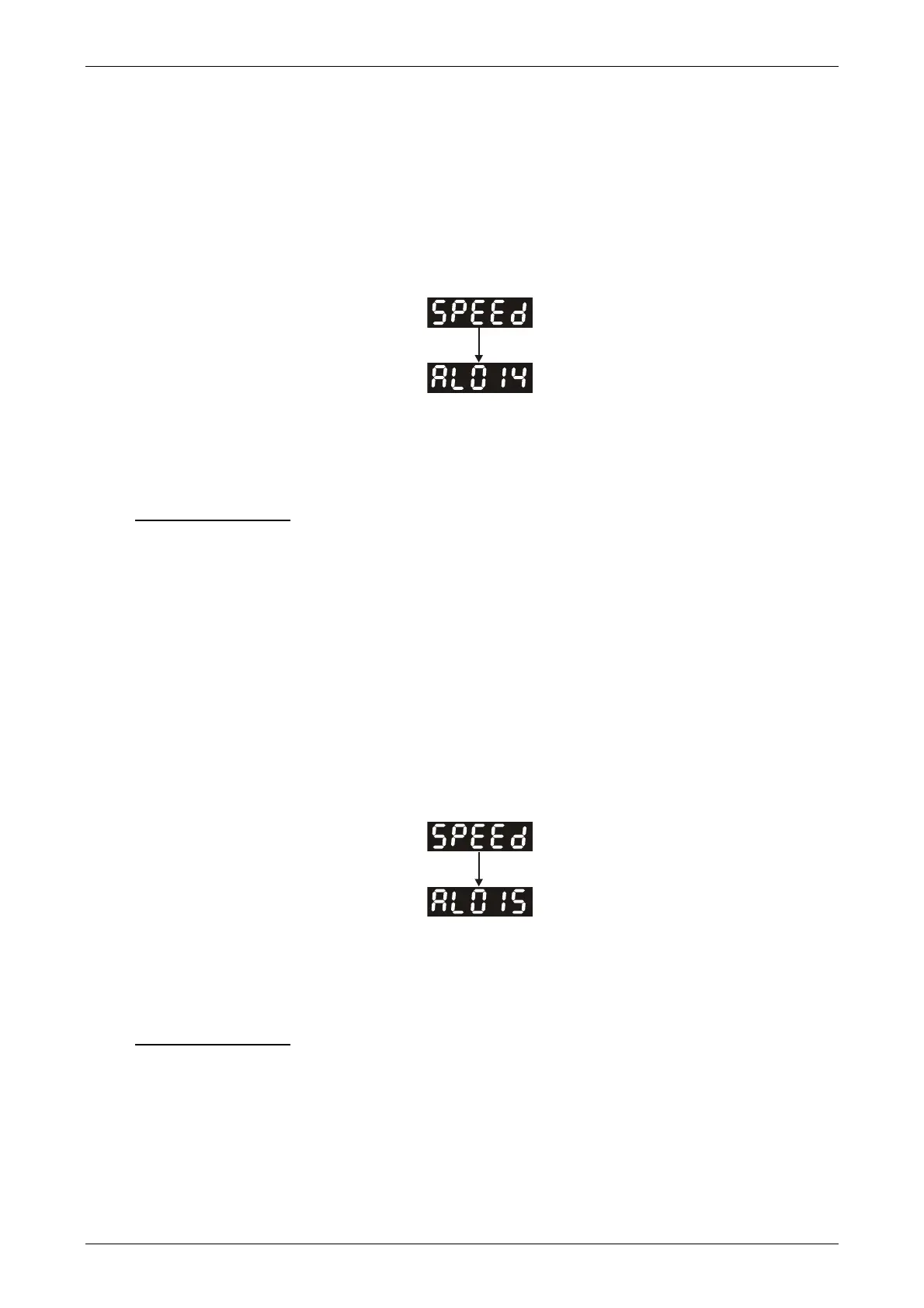

4) When display shows:
Reverse limit switch error:
Please check if any of digital inputs DI1~DI9 signal is set to “Reverse inhibit limit
(NL)” and check if the signal is ON or not.
Corrective Actions:
If it does not need to use “Reverse inhibit limit (NL)” as input signal, the users
only need to confirm that if all of the digital inputs DI1~DI9 are not set to
“Reverse inhibit limit (NL)”. (The setting value of parameter P2-10 to P2-17 and
P2-36 is not set to 22.)
If it is necessary to use “Reverse inhibit limit (NL)” as input signal, the users
only need to confirm that which of digital inputs DI1~DI9 is set to “Reverse
inhibit limit (NL)” and check if the digital input signal is ON (It should be
activated).
5) When display shows:
Forward limit switch error:
Please check if any of digital inputs DI1~DI9 signal is set to “Forward inhibit limit
(PL)” and check if the signal is ON or not.
Corrective Actions:
If it is no need to use “Forward inhibit limit (PL)” as input signal, the users only
need to confirm that if all of the digital inputs DI1~DI9 are not set to “Forward
inhibit limit (PL)”. (The setting value of parameter P2-10 to P2-17 and P2-36 is
not set to 23.)
