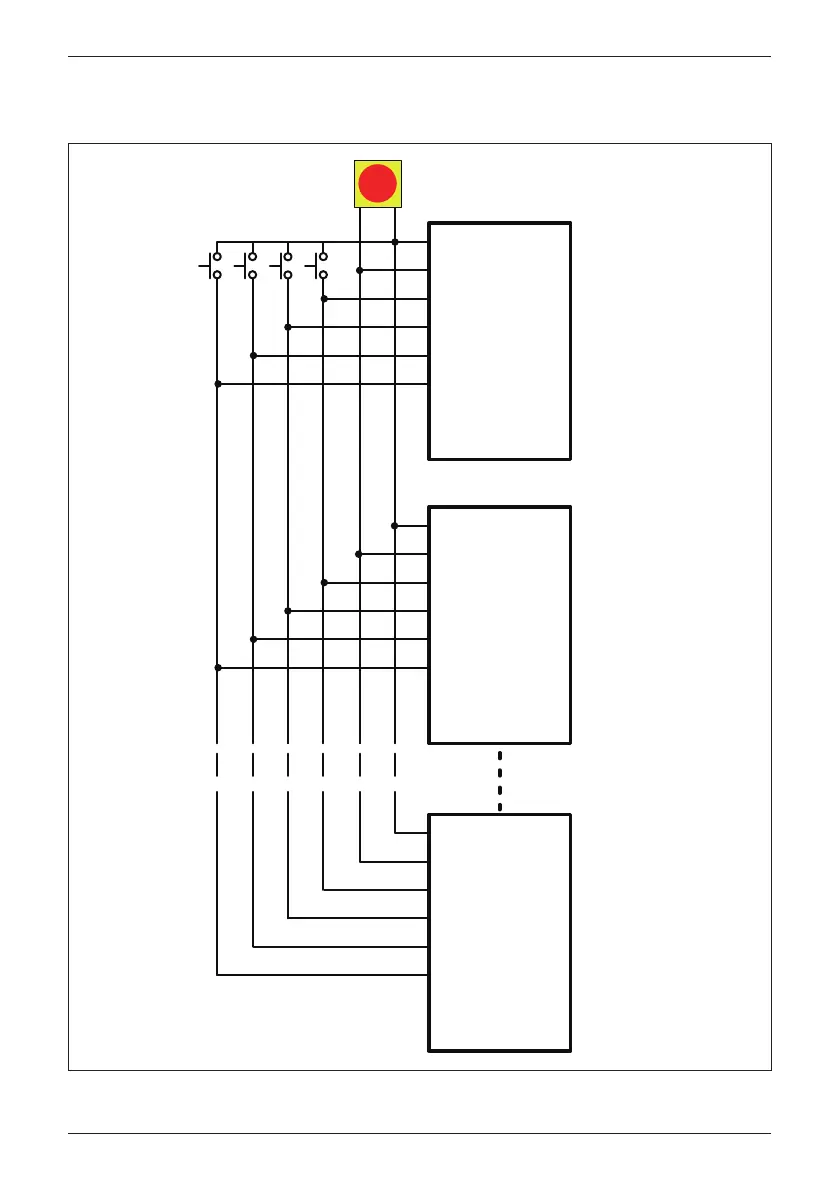

Delta RPI Series - 图4-10: 紧急停止开关与数位输入功能的多台并联

紧急停止开关与数位输入功能可以在inverter多台并联下使用，接线方式请参考
图4-10。
图4-10 : 紧急停止开关与数位输入功能的多台并联
SW
INV_1
(VCC)V1
K0 (EPO)
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
K5
K6
INV_2
(VCC)V1
K0 (EPO)
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
K5
K6
INV_N
(VCC)V1
K0 (EPO)
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
K5
K6
