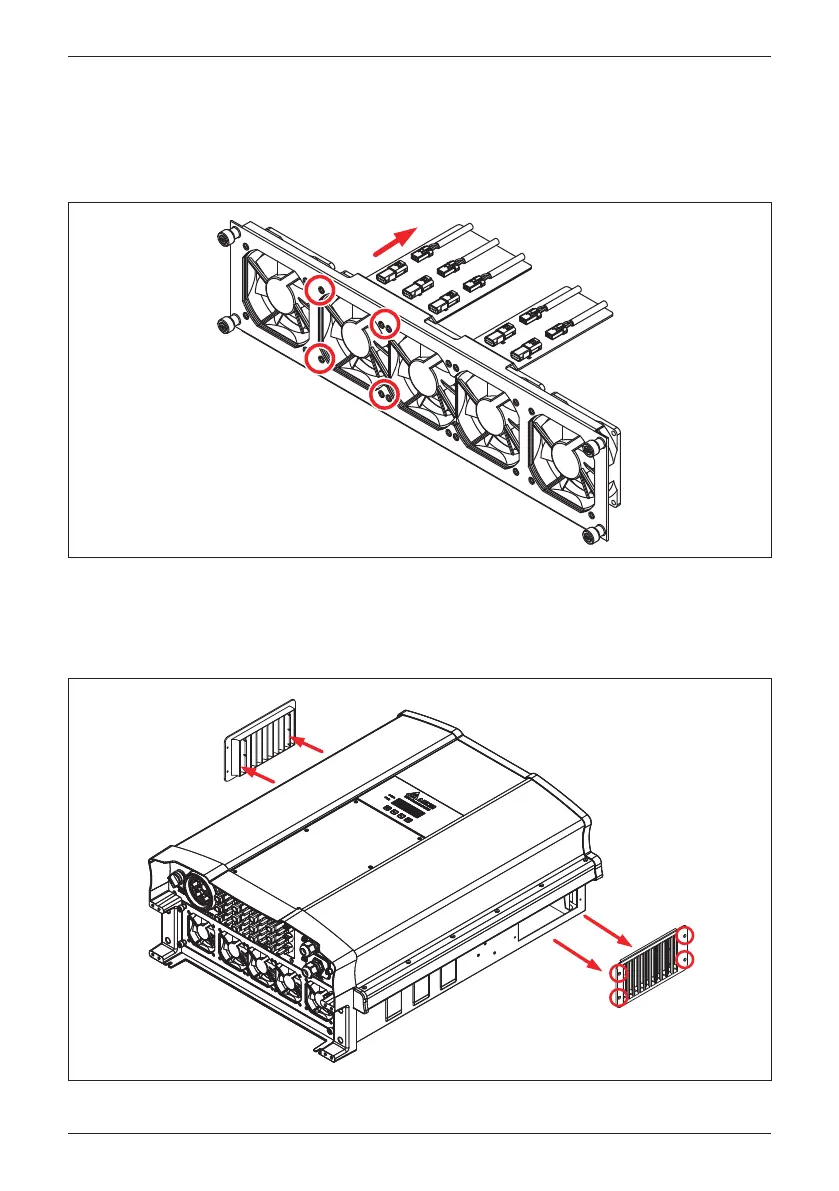

Figure 6-8 : Removal of a fan
Figure 6-9 : Removal of air outlets
In the event that a fan needs to be replaced, user should disassemble the 4 pcs
screws around the fans and disconnect the connector right behind the fan bracket.
Then replace new fan and reassemble the 4pcs screws.
Unscrew the 4 screws of air inlets and clean them regularly.
6.5 Clean Air Inlets
6.4 Replace Fans
* Screw torque required for assembling: 8 Kgf-cm (0.8N-m)
* Screw torque required for assembling: 8 Kgf-cm (0.8N-m)
56
Maintenance
