It is recommended to install an upstream circuit breaker between AC side and
inverter side for over current protection.
The AC cable must be jacketed and meet the specifications in Table 4-3.
If there is any conflict between Table 4-3's specification and local electrical code,
please follow the electrical code.
RPI M50A support both 3P3W (3phase and PE) and 3P4W (3phase, N and PE)
connections.
End sleeve for each wire is necessary if 25mm
2
or 3AWG is applied.
End sleeve is not able to be installed if 1AWG is applied.
Model Upstream circuit breaker
RPI M50A
_12s 100A
Model Current Rating Recommended TorqueWire Size Cable size
100 ARPI M50A
_12s 3 N・ｍ
G N L1 L3L2
N
L1
L2
L3
PE
To solar inverter
AC plug
Table 4-2 : Recommended upstream protection
Table 4-3 : AC input cable requirement
25-38mm
2
3-1AWG
37-44mm
4.2

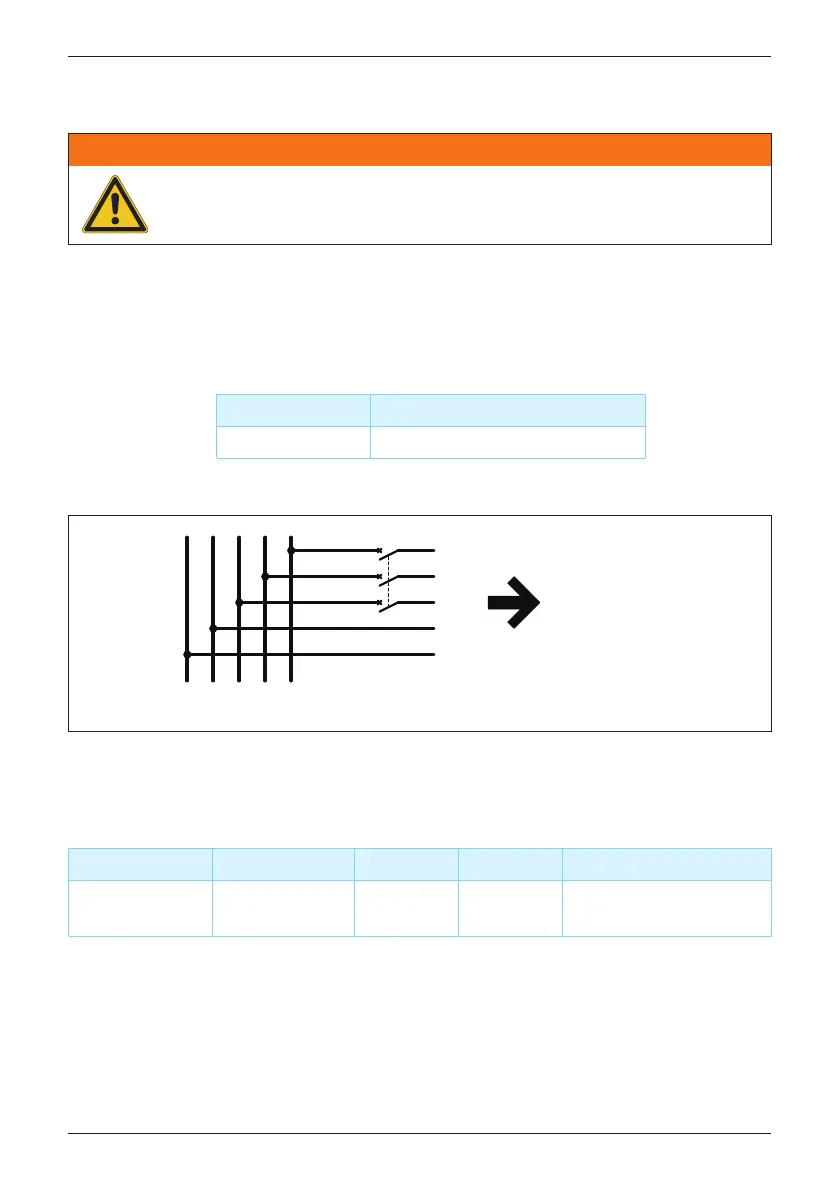

AC Grid Connection: 3-Phase+PE or 3-Phase+N+PE
WARNING !
- Before commencing AC wiring, please ensure AC breaker is switched off.
4.2.1
Required Protective Devices and Cable Cross-sections
21
Wiring
To Next Page
