Delta RPI Series User Manual

Before installing the AC Plug, please stripped the jacket of cable by following
procedure.
• Strip the outer jacket from the cable for 95mm.
• Strip the jacket from the internal wire for 22 ± 2mm.

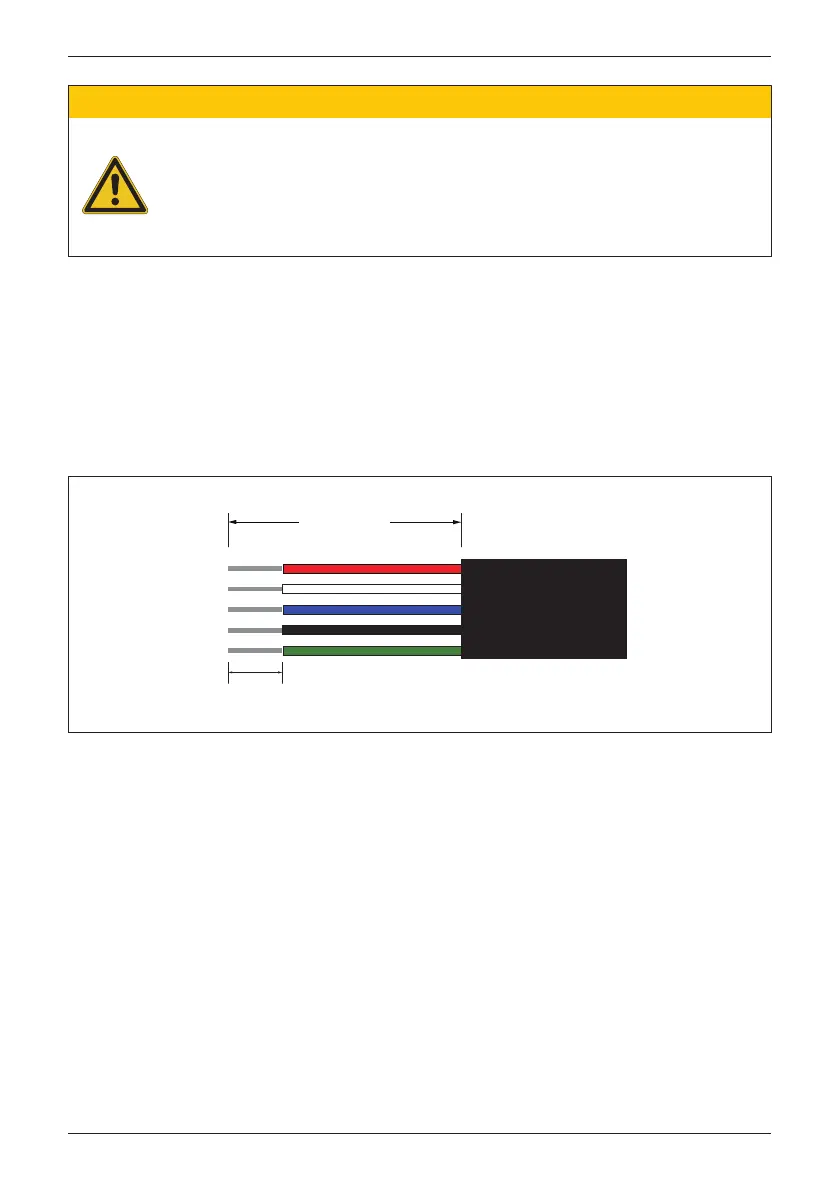

Figure 4-3 : Striping the wires
- Make sure to choose proper size for AC cable.
- Failed to follow these instructions may cause AC plug damage.
- AC plug’s installation must meets the local electrical code.
- If there is any conflict between installation instruction and electrical code,
please follow the electrical code.
CAUTION！Machine and equipment damage may occur.
L1
L2
L3
N
PE
outer jacket
22±2mm
95 mm
＋0
−5
22
Wiring
