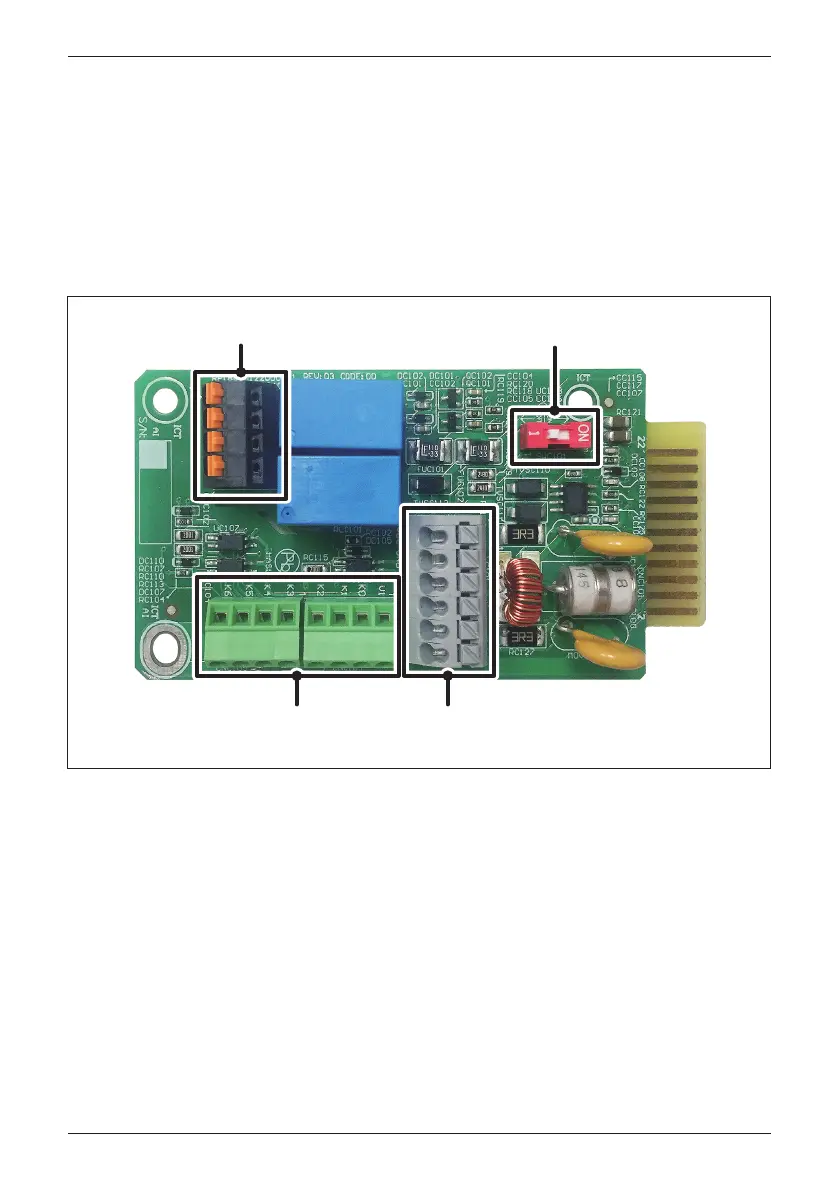

Figure 4-7 : Communication module

Please refer to Figure 4-7 for the Communication Module illustration.

The module provides VCC, RS-485, dry contact, EPO, and Digital Input terminals

for different use.

** Please use cable with outer diameter lie between 20 AWG (0.5mm²) to secure

the space IP65. **

4.4 Communication Module Connections

Dry Contact

VCC & RS-485 EPO*1 &

Digital Inputs*6

Terminal Resistor

Wiring
