Delta RPI Series User Manual

This unit is designed to be wall-mounted. Please ensure the installation is
perpendicular to the floor and the AC plug at the bottom. Do not install the device
on a slanting wall.
To mount the inverter on the wall, please follow the procedure below:
1. Screw the mounting bracket on the wall with 12 M6 Phillips head screws.
Please refer to Figure 3-3.
* Upper 6 screws must be locked at least.
2. Attach the inverter to the mounting bracket.
3. Fix the inverter with 2 M6 Phillips head screws.
Please refer to Figure 3-4.
3 Installation
- The unit should not be installed in direct sunlight.
CAUTION !
WARNING !
- Do not install the unit near or on flammable surfaces.
- Please mount the unit tightly on a solid / smooth surface.

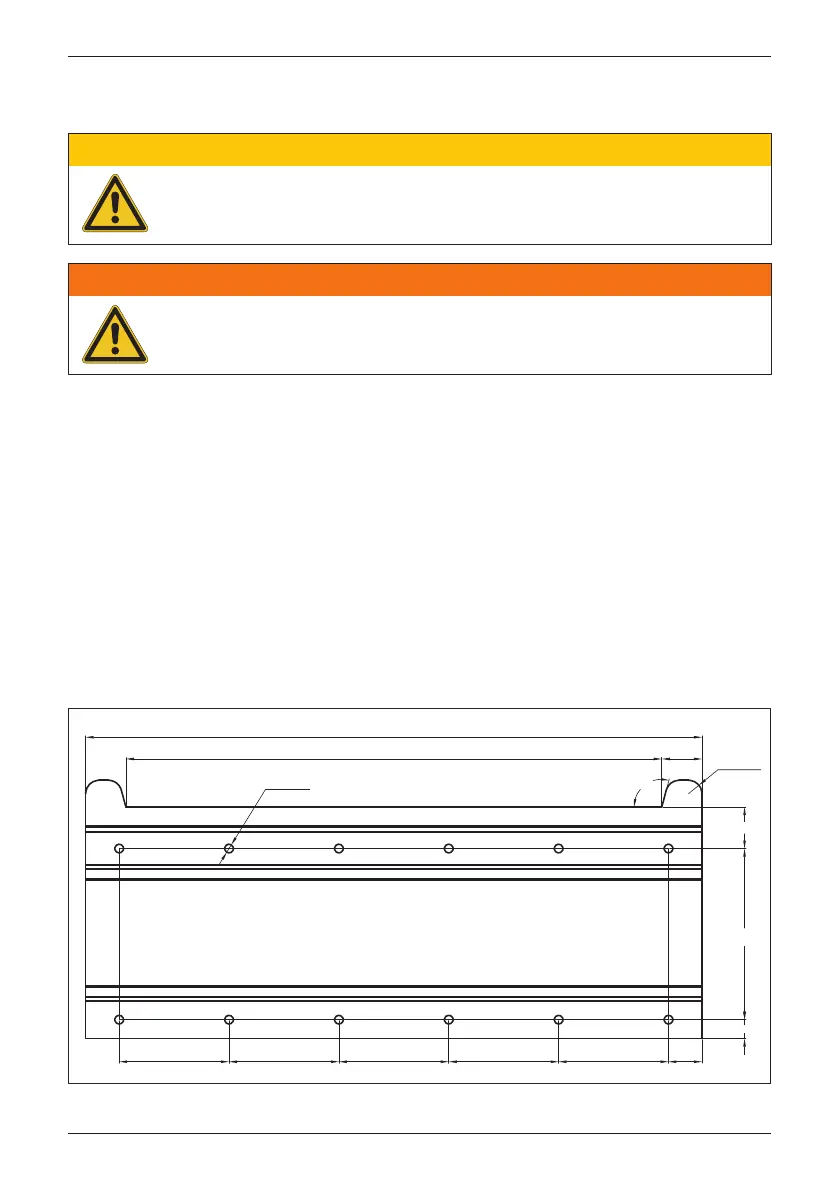

Figure 3-1 : Mounting bracket dimension
12-Φ6.5
460.0
400.0
82.0 82.0 82.0 82.0 82.0 25.0
14.1
127.7
31.0
4-R10.0
30.0
105°
14
Installation

Delta RPI Series Specifications

General

Efficiency	Up to 98.8% (depending on model)
Frequency	50 Hz / 60 Hz
Model	RPI Series
Type	Inverter
Protection Rating	IP65
Cooling	Natural convection
Category	Inverter
Cooling Method	Natural convection
Dimensions	Varies by model
Weight	Varies by model
Protection Features	Overvoltage, Short Circuit
