Delta RPI Series - 圖4-10: 緊急停止開關與數位輸入功能的多台並聯

緊急停止開關與數位輸入功能可以在inverter多台並聯下使用，接線方式請參考
圖4-10。

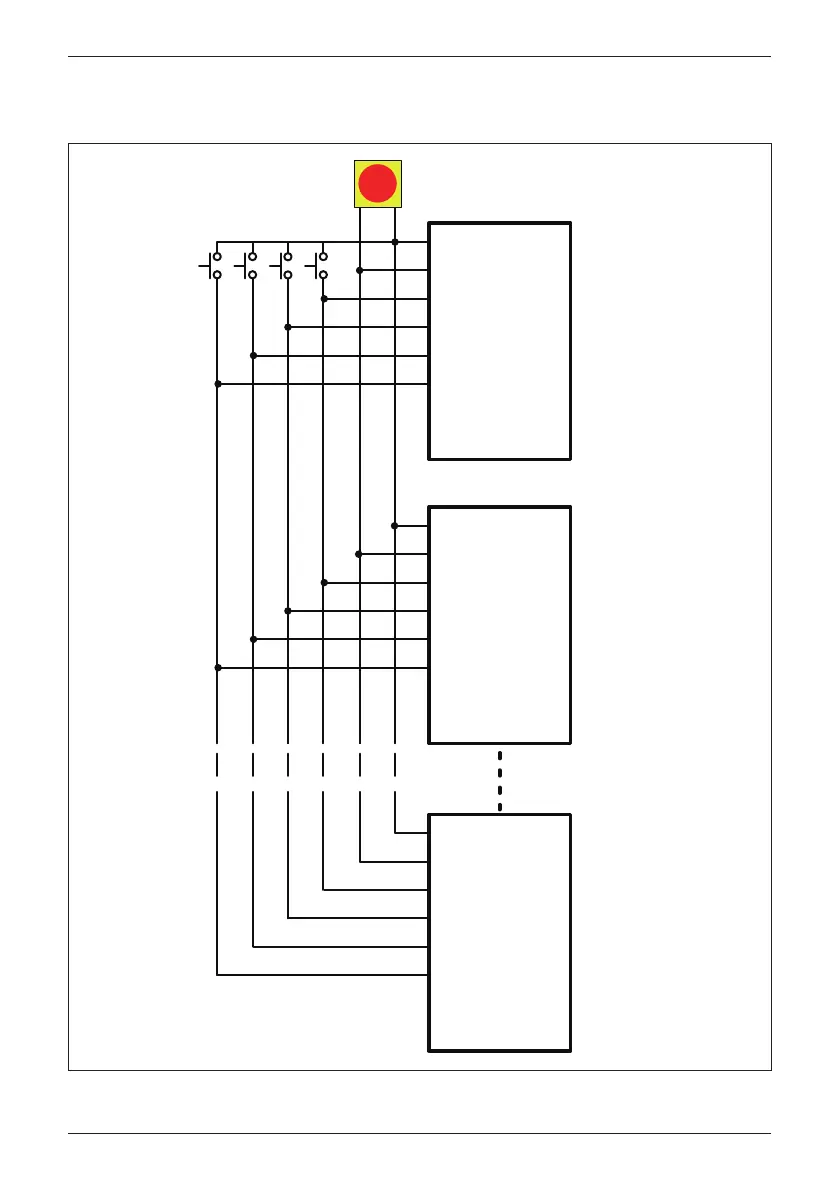

圖4-10 : 緊急停止開關與數位輸入功能的多台並聯
SW
INV_1
(VCC)V1
K0 (EPO)
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
K5
K6
INV_2
(VCC)V1
K0 (EPO)
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
K5
K6
INV_N
(VCC)V1
K0 (EPO)
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
K5
K6
EPO Button
179
配線
