> 30 cm
> 20 cm
> 50 cm
> 30 cm
> 30 cm

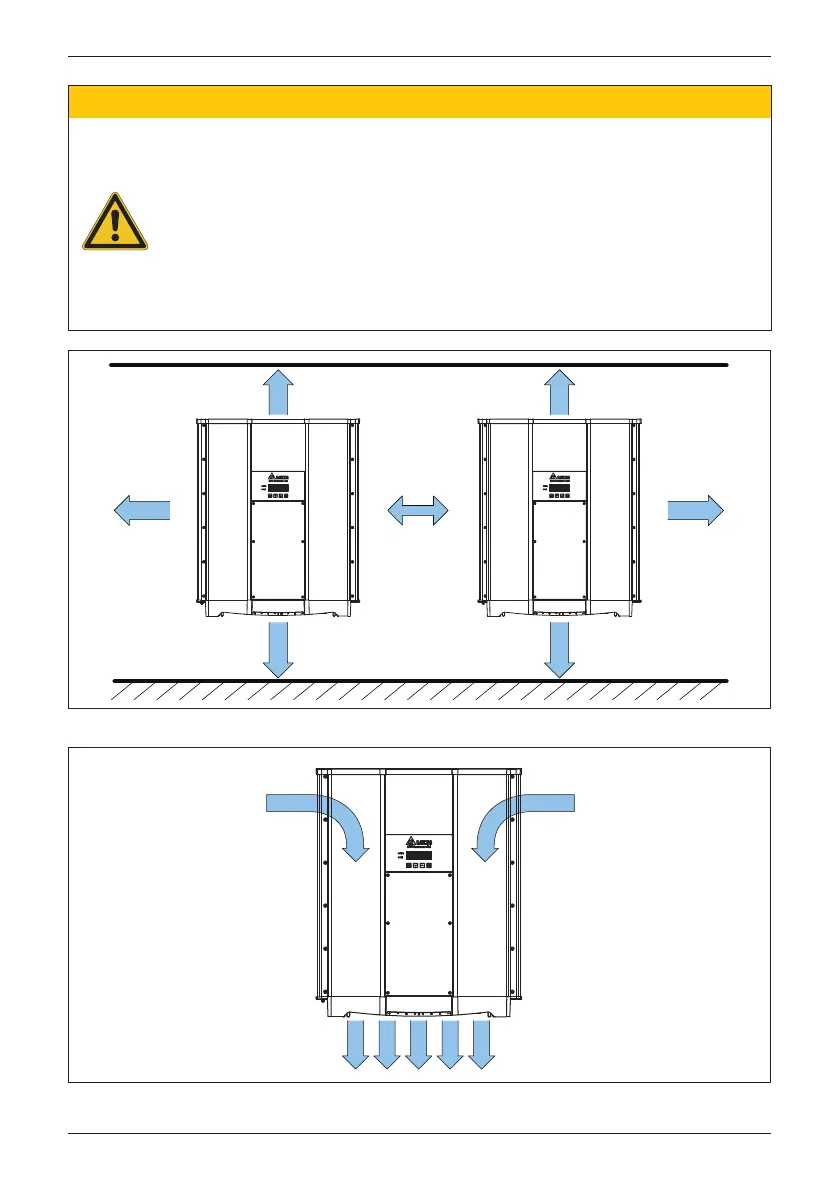

Figure 3-5 : Proper installation gap
- The bracket supplied with the unit is specially designed and should be the only
mounting device used for the unit.
- It is recommended to install the inverter in a suitable location which offers
non-obscured and safe access, in turn ensuring easy access for service and
maintenance.
- Please leave an appropriate gap in between units when installing several solar
inverter systems as shown in Figure 3-5.
- Please install solar inverter at an eye level to allow easy observation for operation
and parameter setting.
- Ambient temperature -25° C~60° C. (power de-rating above 40° C)
CAUTION !
Figure 3-6 : M50A Air flow
