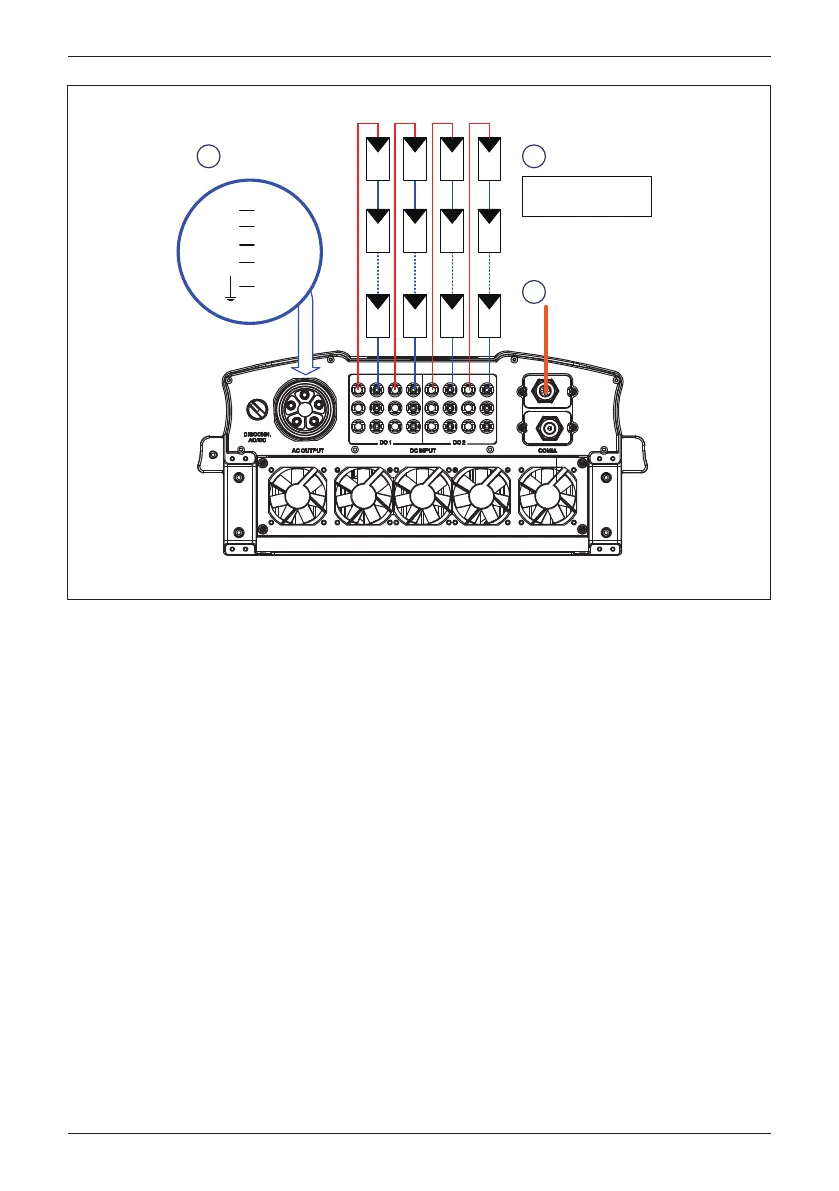

Figure 4-1 : Floating string with separate connection
1
2
3
4
L1
L2
L3
N
PE
Communication
Wiring
1 2
3
AC Wiring DC Wiring
Must be Separate
PV strings
*
* RPI M50A can support 3P3W system.
++++
- -- -
