Delta RPI Series User Manual

③
④
NO 位置 螺絲扭力 導體橫截面
1 AC wire 30.6 Kgf-cm (3N-m) 2~1AWG (25~38mm²)
4 MC4 wire --
5 Communication cover 8 Kgf-cm (0.8N-m) --
20 AWG (0.5mm²)
--
--
12~10AWG (4~6mm²)
①
D1 D2 D3
PV-KST 4/6 ⅡPV-KBT 4/6 Ⅱ
⑤
2 AC plug 60 ~ 80 kgf-cm (5.9 ~ 7.8N-m)
--6 Communication module
3 Rubber rings
D1: 66 ~ 204 Kgf-cm (6.5 ~ 20N-m)
D2: 112 ~ 173 Kgf-cm (11 ~ 17N-m)
D3: 133 ~ 143 Kgf-cm (13 ~ 14N-m)
⑥
②
EPO
Dry Contact
RS-485

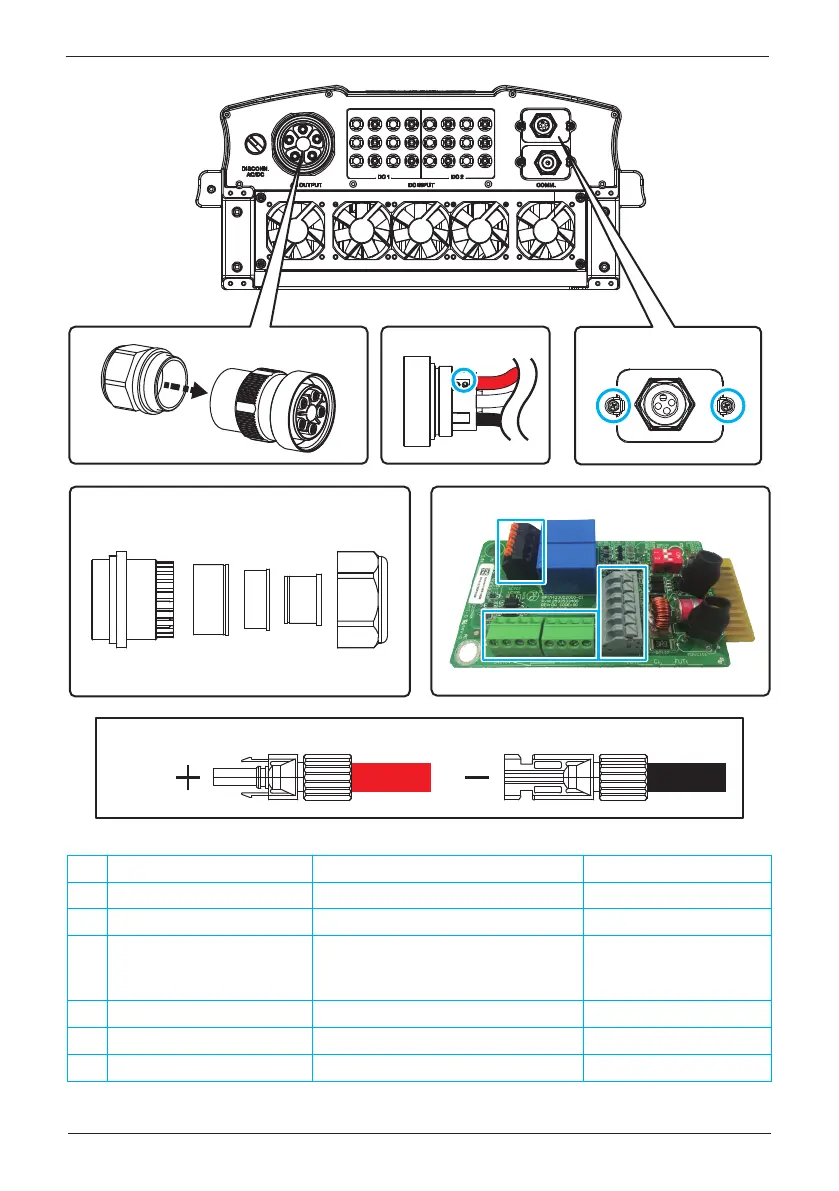

附錄 B-2 : 組裝說明-2
附錄 B：組裝說明
221
