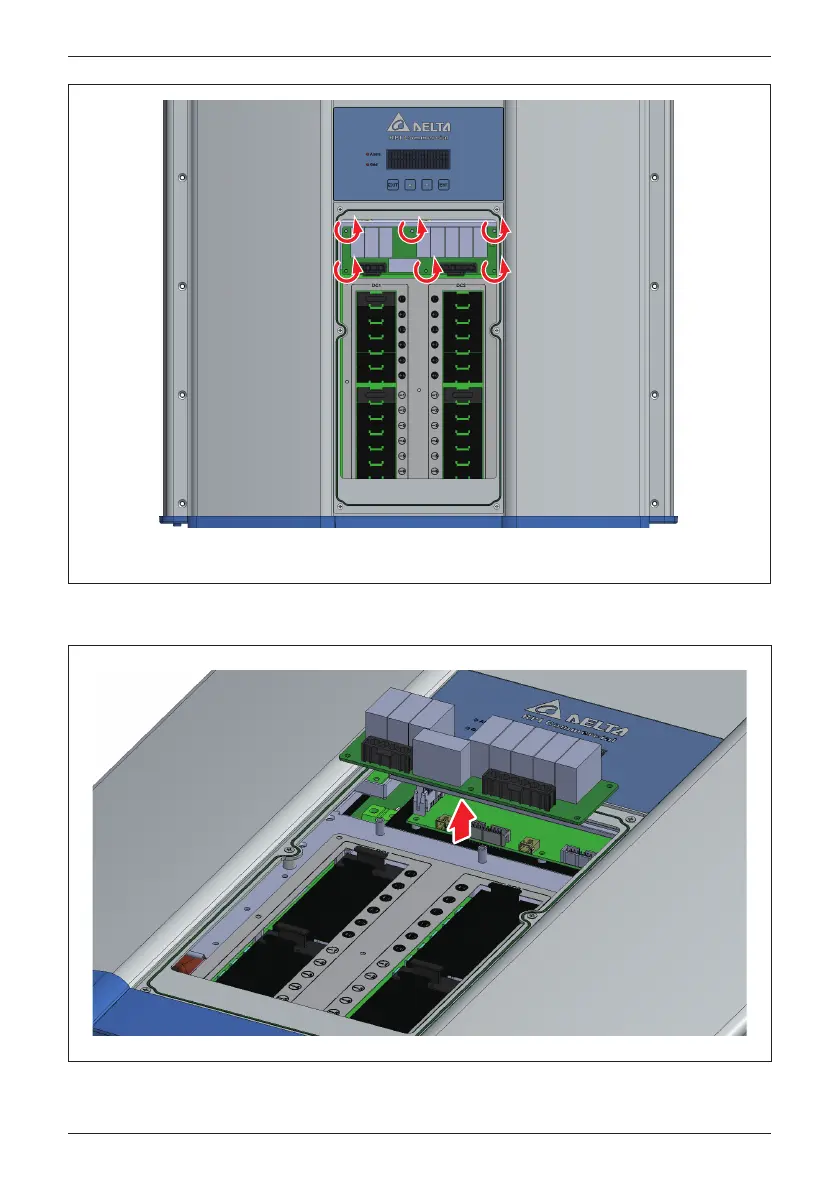

Figure 6-3 : Loosen the 6 screws
Figure 6-4 : Pull out the SPD unit
* Screw torque required for assembling: 8 Kgf-cm (0.8N-m)
53
Maintenance
