Desoutter CVIC - Bottom Front Panel; Self-Contained MODCVIC Module; Technical and Electrical Features

6159932010-09
13 / 60
English
CVIC - MODCVIC - MULTICVIC
Afin de réduire le risque de blessures,
comprendre le mode d'emploi.
l'utilisateur doit lire et bien
To reduce the risk of injury, user must
read and understand instruction manual.
SubD 9 points: PC connection, Bar code or printer
PC cable: P.N. 6159170470.
Printer cable: P.N. 6159170110.
The bar code is supplied with its cable.
Note: in version «L», only the PC is connected.
SubD 37 points:
PLC or
indicator box
or socket tray connection
Emergency stop
On/Off
Mains plug + fuse-holder
2 fuses of 16 A (5x20)
Tool connection

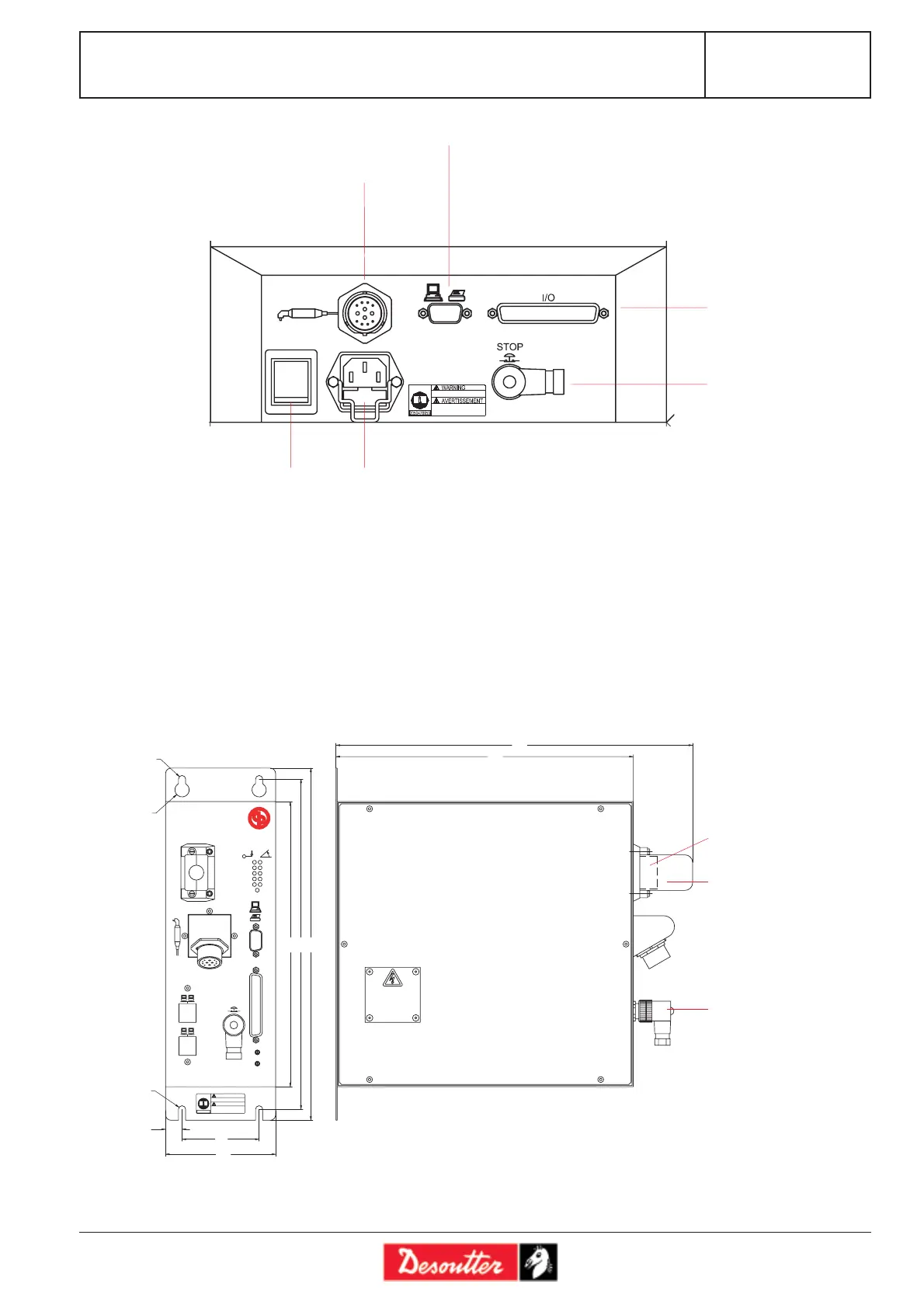

1.5 - Bottom Front Panel
2 - Self-Contained MODCVIC Module
2.1 - Technical and Electrical Features
Weight: 4,300g.
Fastened by means of 4 screws on the back panel of a cabinet.
MSB
LSB
8
7
1
0
4
2
6
5
3
C
9
D
A
B
E
F
8
7
4
6
5
3
1
0
2
C
9
A
B
D
F
E
I/O
MAX
+VP
MIN
Ph.3
GND
Ph.2
Ph.1
NOK
+5V
MAX
READY
ON
OK
MIN
OK
a
STOP
115Vrms
J17
J3
J12
J15
J6
J8A
J8B
WARNING
2050478153
AVERTISSEMENT
Afin de réduire le risque de blessures,
read and understand instruction manual.
To reduce the risk of injury, user must
comprendre le mode d'emploi.
l'utilisateur doit lire et bien
E ASPETTARE 30 SECONDI
Y ESPEREN 30 SEGUNDOS
ANTES DE ABRIR, CORTEN LA CORRIENTE
ET ATTENDRE 30 SECONDES
AVANT D'OUVRIR, METTRE HORS TENSION
BEFORE OPENING, ALWAYS SWITCH OFF
AND WAIT 30 SECONDS
PRIMA DI APRIRE, TOGLIERE LA CORRENTE
VOR DEM OEFFNEN DEN STROM ABSCHALTEN
UND 30 SEKUNDEN WARTEN
259 320 300
100
70
15
270
324
Ø6.5
Ø6.5
Ø13
MOD CVIC
Plug:
P.N. 6159154730
Protective cover:
P.N. 6159154080
Plug:
P.N. 6159154840
