3.1 - Slave MODCVIC Module
This controller has the same features as the self-contained MODCVIC but it is fitted with a network board to allow
interaction with the master CPUCVIC module.
In this configuration, the PC port is disabled by the software.
Weight: 4,000g.
Fastened by means of 4 screws on the back panel of a cabinet.
Network rotary switches:
They define the addresses of the modules to interact with the CPUCVIC (from 0 to 254 or 0 to FE in hexadecimal mode):
RC1 hexadecimal figure of the least significant bit (LSB).
RC2 hexadecimal figure of the most significant bit (MSB).
Warning: at each parameter change, the MODCVIC must be reset by switching off and then on. When switched
off, wait until the LED +5V is off.
STOP
J15
J8A
J8B
WARNING
2050478153
AVERTISSEME
Afin de réduire le risque de blessu
read and understand instruction m
To reduce the risk of injury, user
comprendre le mode d'emploi.
l'utilisateur doit lire et bien
MOD C

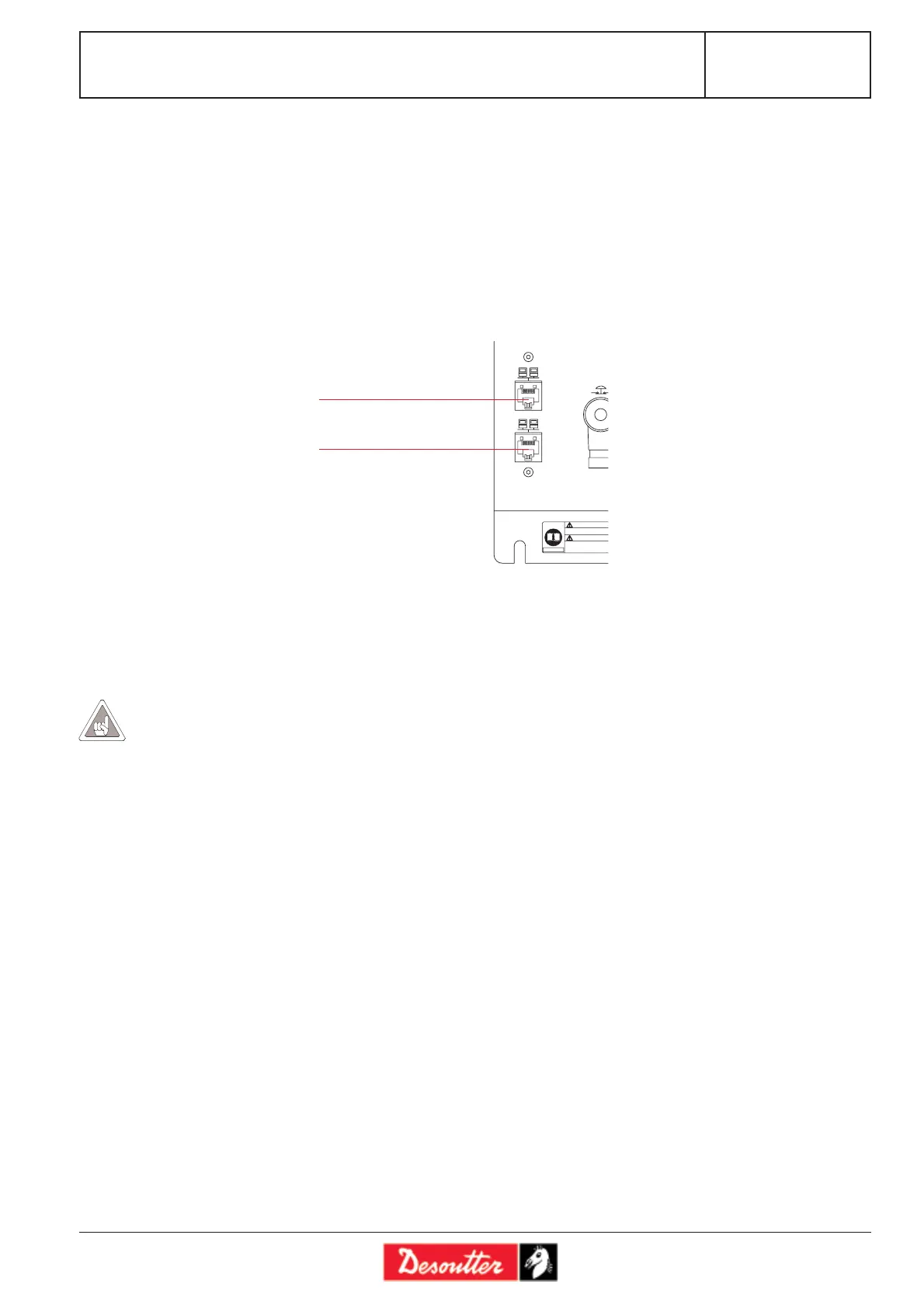

RJ 45 network connection
RJ 45 network connection
