Desoutter CVIC - Changing the Memory Battery

6159932010-09
43 / 60
English
CVIC - MODCVIC - MULTICVIC
1.5 - Changing the Memory Battery
Memory battery connection: the memory battery allows you to save the parameters and results in of mains power
failure. A maximum lifetime of 10 years is indicated in the manufacturer’s specifications. For safety purposes, it is
recommended to change the battery every 5 years.
Prior to any battery change, it is recommended to save the tightening programmes as well as the results, using
the CVIS/CVIC PC2000 software.
Battery number: 6159229060. Capacity: 550 mA/h.

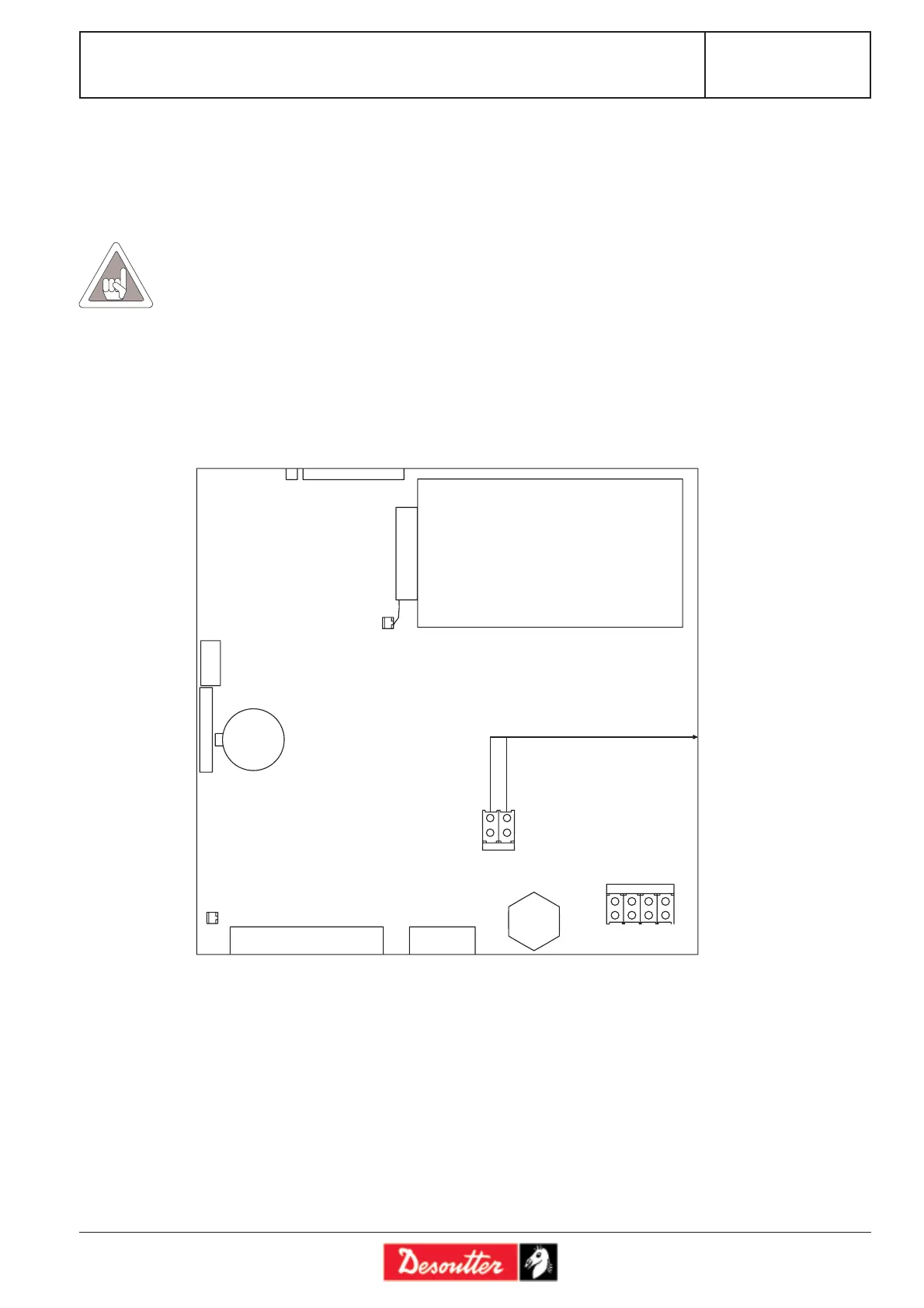

Schematic representation of the servodrive board
J 4 D i s p l a y
J 5
L E D
J 2 D e b u g
J 1 4 K e y b o a r d
J 1 5
E S
J 1 2 I n p u t / O u t p u t
J 3
R S 2 3 2 / 4 2 2
J 6
M o t o r
J 1 7 M a i n s i n p u t
J 1 3
C a p a c i t o r
F A N
H E A T S I N K
M e m o r y
b a t t e r y
t o m a i n s o u t l e t
w i t h 2 f u s e s
b l a c k
r e d
t o c a p a c i t o r
-
+
J 1
