6159932010-09
14 / 60
English
CVIC - MODCVIC - MULTICVIC
MSB
LSB
8
7
1
0
4
2
6
5
3
C
9
D
A
B
E
F
8
7
4
6
5
3
1
0
2
C
9
A
B
D
F
E
I/O
MAX
+VP
MIN
Ph.3
GND
Ph.2
Ph.1
NOK
+5V
MAX
READY
ON
OK
MIN
OK
a
STOP
115Vrms
J17
J3
J12
J15
J6
J8A
J8B
WARNING
2050478153
AVERTISSEMENT
Afin de réduire le risque de blessures,
read and understand instruction manual.
To reduce the risk of injury, user must
comprendre le mode d'emploi.
l'utilisateur doit lire et bien
MOD CVIC

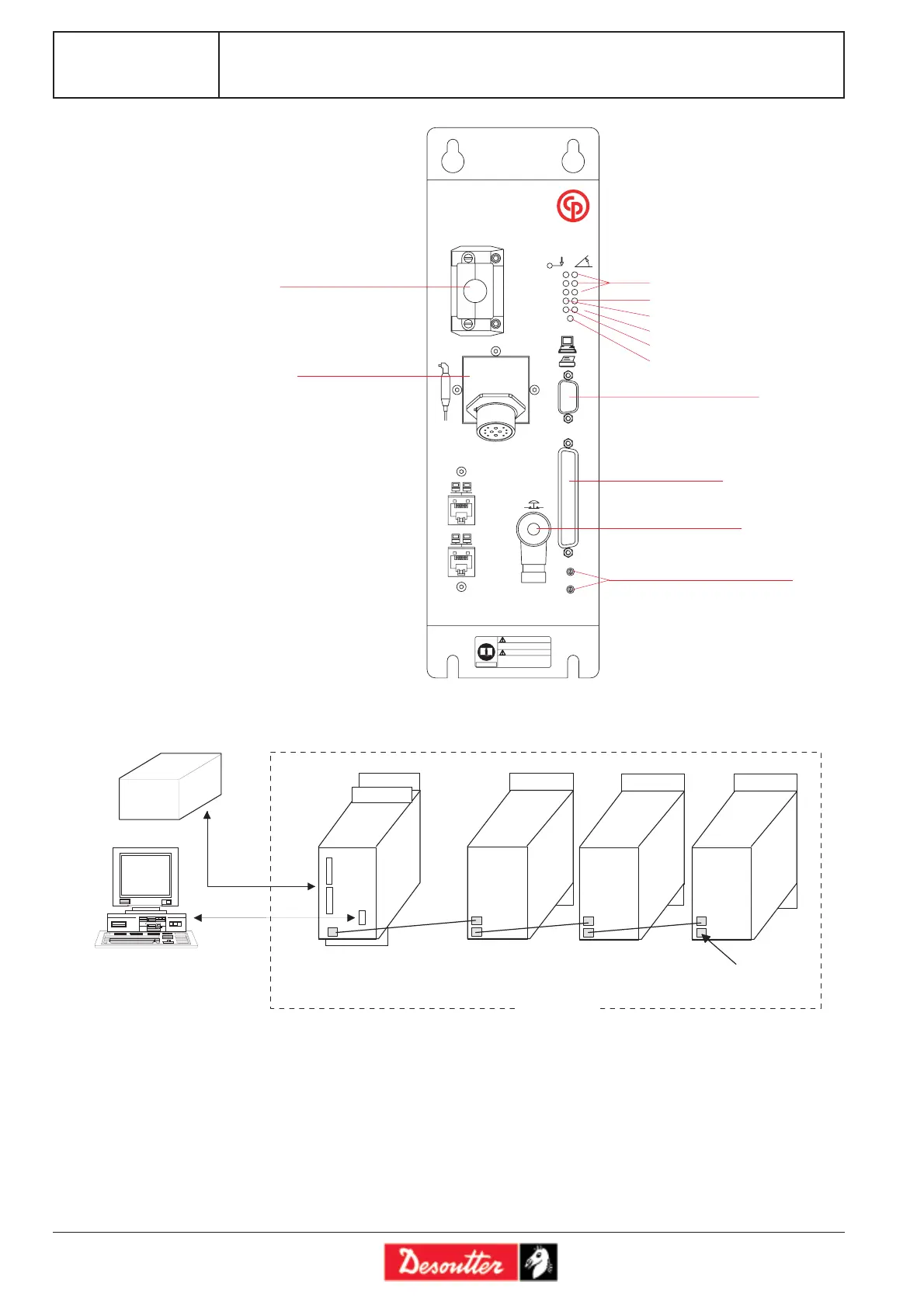

3 - MULTICVIC system
CPUCVIC module P.N. 6159325660. The end-of-network plug P.N. 6159270120 supplied with the CPUCVIC shall
be connected to the last MODCVIC in the network.
Slave MODCVIC-H2 P.N. 6159326150.
Slave MODCVIC-H4 P.N. 6159326160.
Part numbers of the cables which connect the MODCVICs to each other and to the CPUCVIC:
0.5 m 6159173340.
1 m 6159173350.
2 m 6159173360.
C V I P C
P L C
C P U C V I C M O D C V I C s l a v e s
M U L T I C V I C
E n d - o f - n e t w o r k p l u g
2.2 - Description of the Front Panel
Torque/angle reports
5 V voltage on
Power voltage on
Servodrive ready
Module on
Ncycle OK
PC/bar code/printer
Input/output
Emergency stop
Rotary switches (network)
PC/bar code/printer
Tool connection
